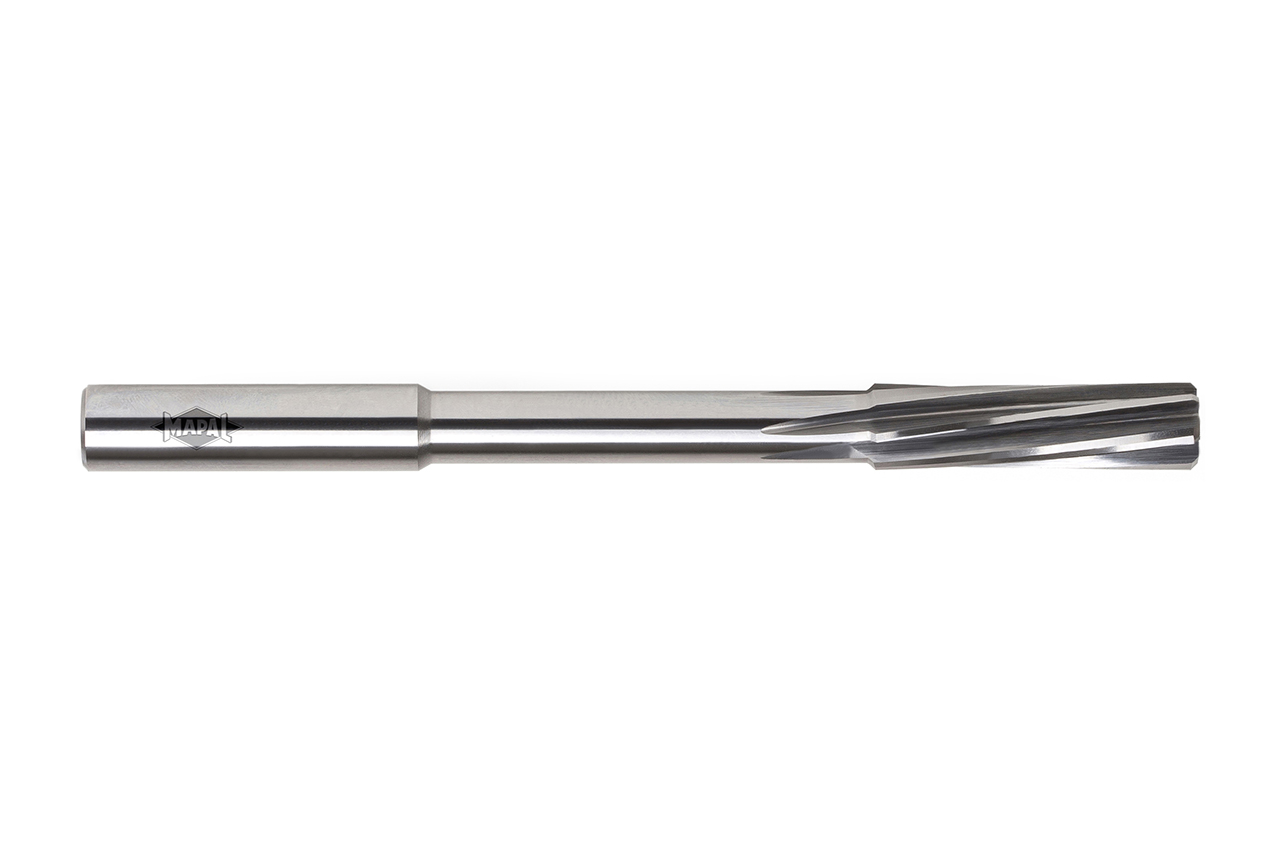

NC machine reamer

Diameter d1 (mm)

4.02

Your unit price

*Login required

Article

30712923

Quantity

Added to Your Shopping Cart

Product description

NC machine reamers are a particularly cost-effective option for the production of precise bores. While their performance data is below that of high-performance reamers, these tools are widely used because they are characterized by their quality and ease of use.

Material suitability

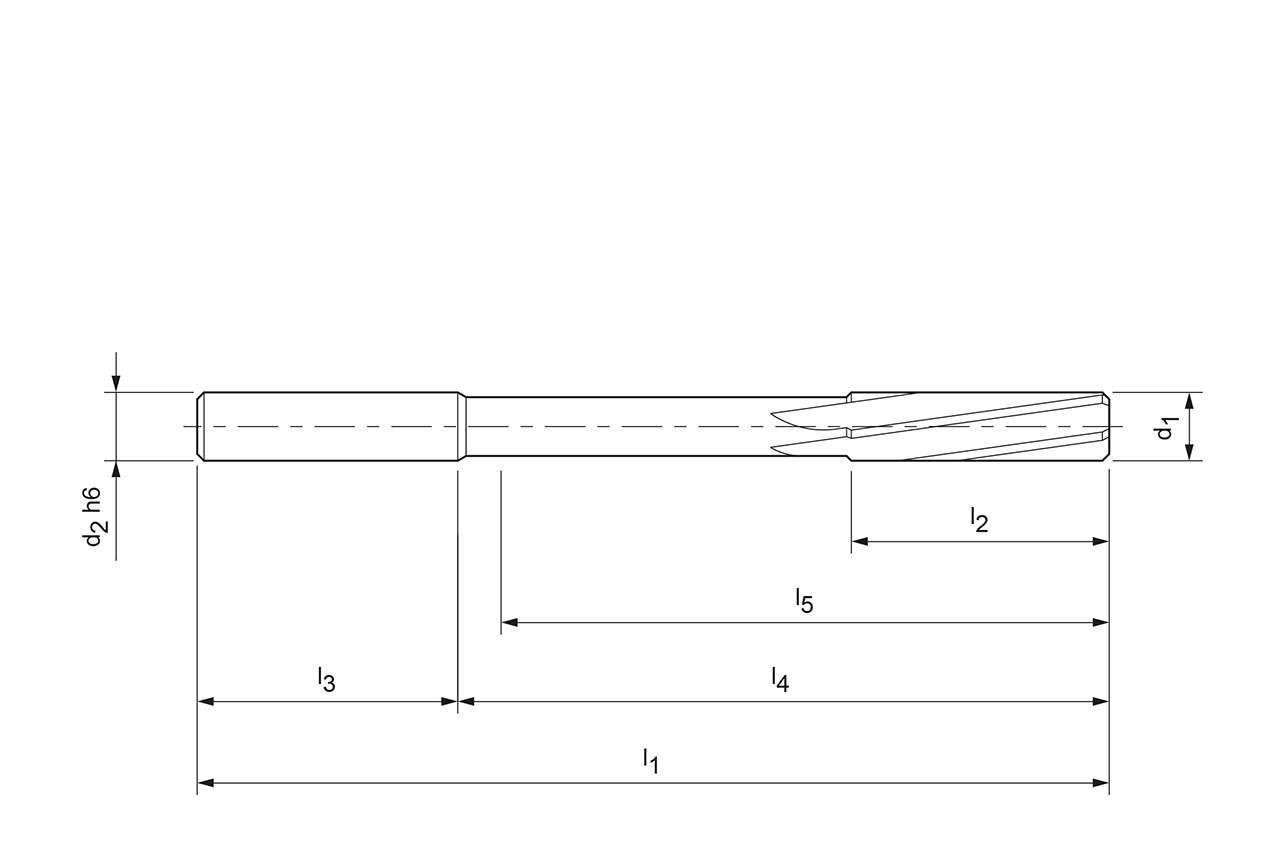

Technical specifications

Connection type: Cylindrical shank
Connection size: 4
Type of bore: Through bore
d1: 4.02 mm
d3: 4 mm
l1: 75 mm
l2: 19 mm
l3: 28 mm
l4: 0 mm
l5: 43 mm
Tolerance: +4
Cutting material: HU613
Cooling: external cooling
Number of cutting edges (z): 6
Material group: X4
Specification: MDR510G-8093-2BØ4.02+4-HU613
