NC machine reamer

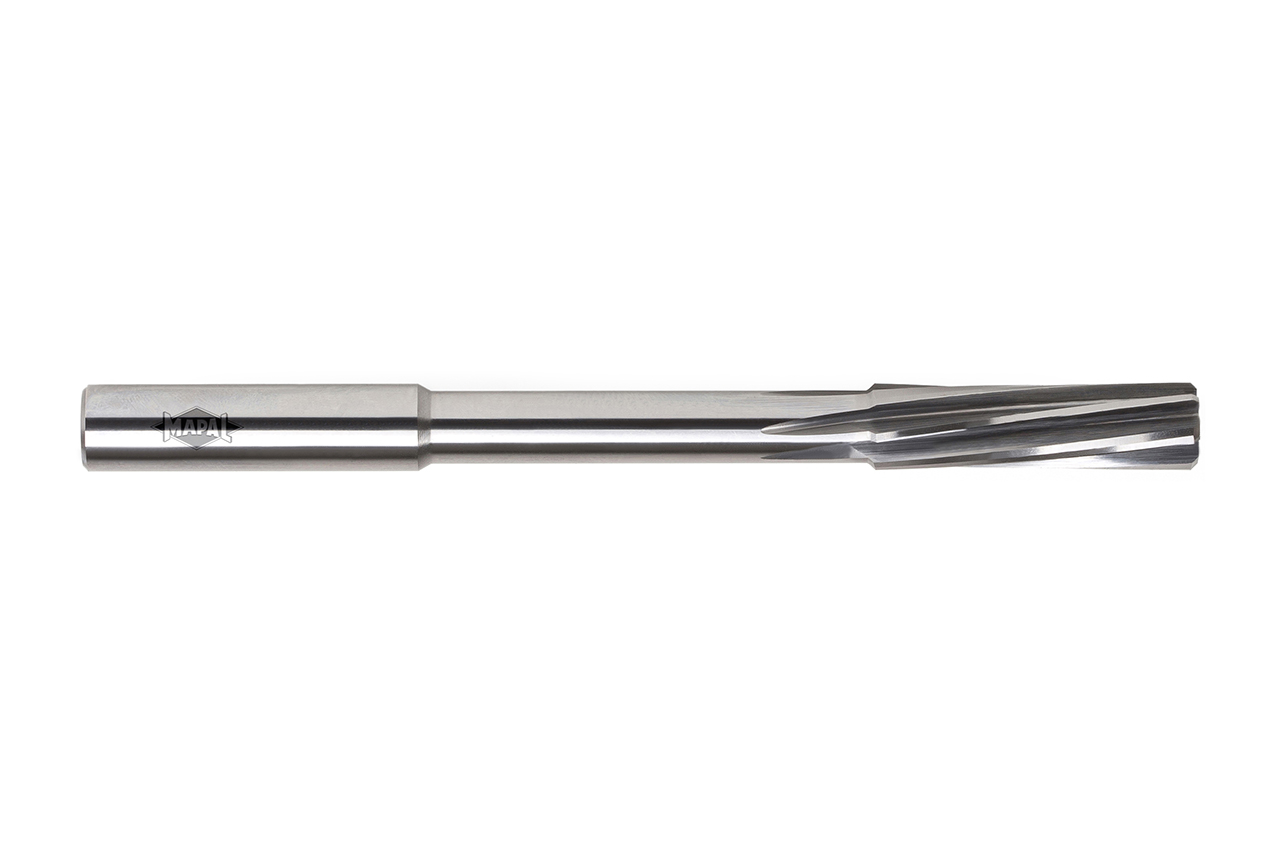

  • Product image NC machine reamer
  • Produktzeichnung NC-Maschinenreibahle

Durchmesser d1 (mm)

3.98

Ihr Stückpreis

*Login erforderlich

Bestellnummer

30712919

Menge

Ihrem Warenkorb hinzugefügt

Produktbeschreibung

NC machine reamers are a particularly cost-effective option for the production of precise bores. While their performance data is below that of high-performance reamers, these tools are widely used because they are characterized by their quality and ease of use.

Materialeignung

Technische Daten

Trennstelle
Zylinderschaft
Connection size
4
Type of bore
Trough bore
d1
3.98   mm
d3
4   mm
l1
75   mm
l2
19   mm
l3
28   mm
l4
0   mm
l5
43   mm
Tolerance
+4
Cutting material
HU613
Cooling
external cooling
Number of cutting edges (z)
6
Material group
X4
Specification
MDR510G-8093-2BØ3.98+4-HU613
