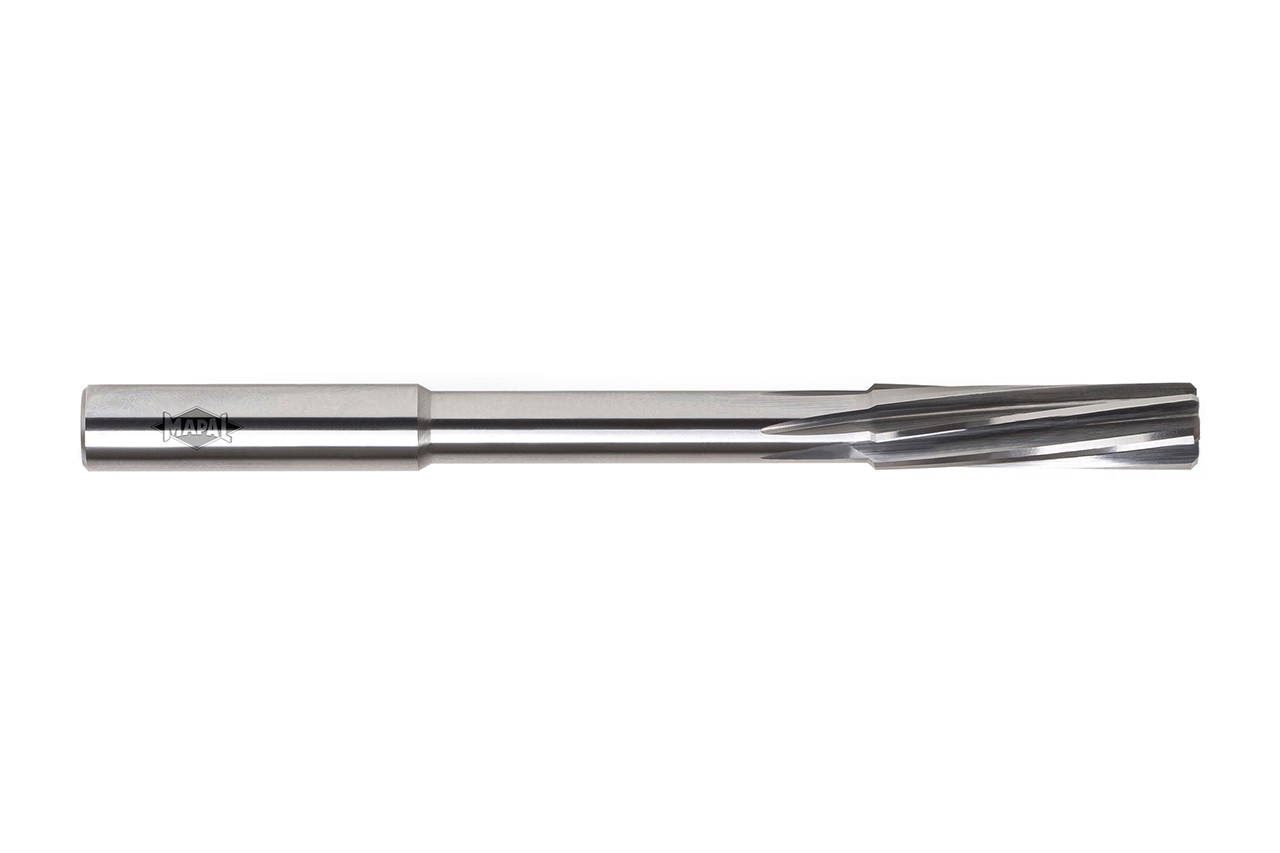

NC machine reamer
Diameter d1 (mm)
3.2
Your unit price
*Login requiredArticle
30712916
Quantity
Added to Your Shopping Cart
Product description
NC machine reamers are a particularly cost-effective option for the production of precise bores. While their performance data is below that of high-performance reamers, these tools are widely used because they are characterized by their quality and ease of use.
Technical specifications
- Connection type
- Cylindrical shank
- HFS connection size
- 0040
- Type of bore
- Through bore

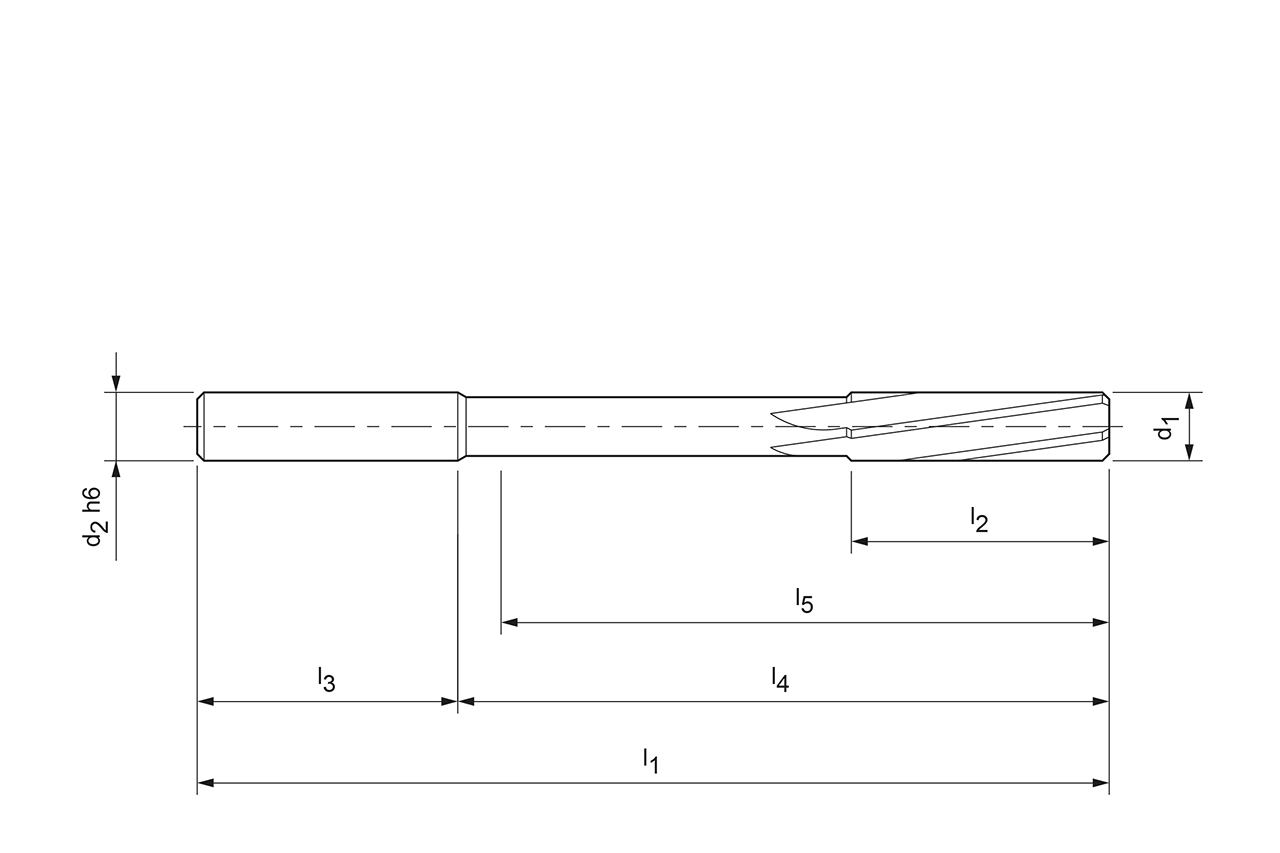

- d1
- 3.2 mm
- d3
- 4 mm
- l1
- 65 mm
- l2
- 16 mm
- l3
- 28 mm
- l4
- 0 mm
- l5
- 33 mm
- Tolerance
- H7
- Cutting material
- HU613
- Number of cutting edges (z)
- 6
- Material group
- X4
