NC machine reamer

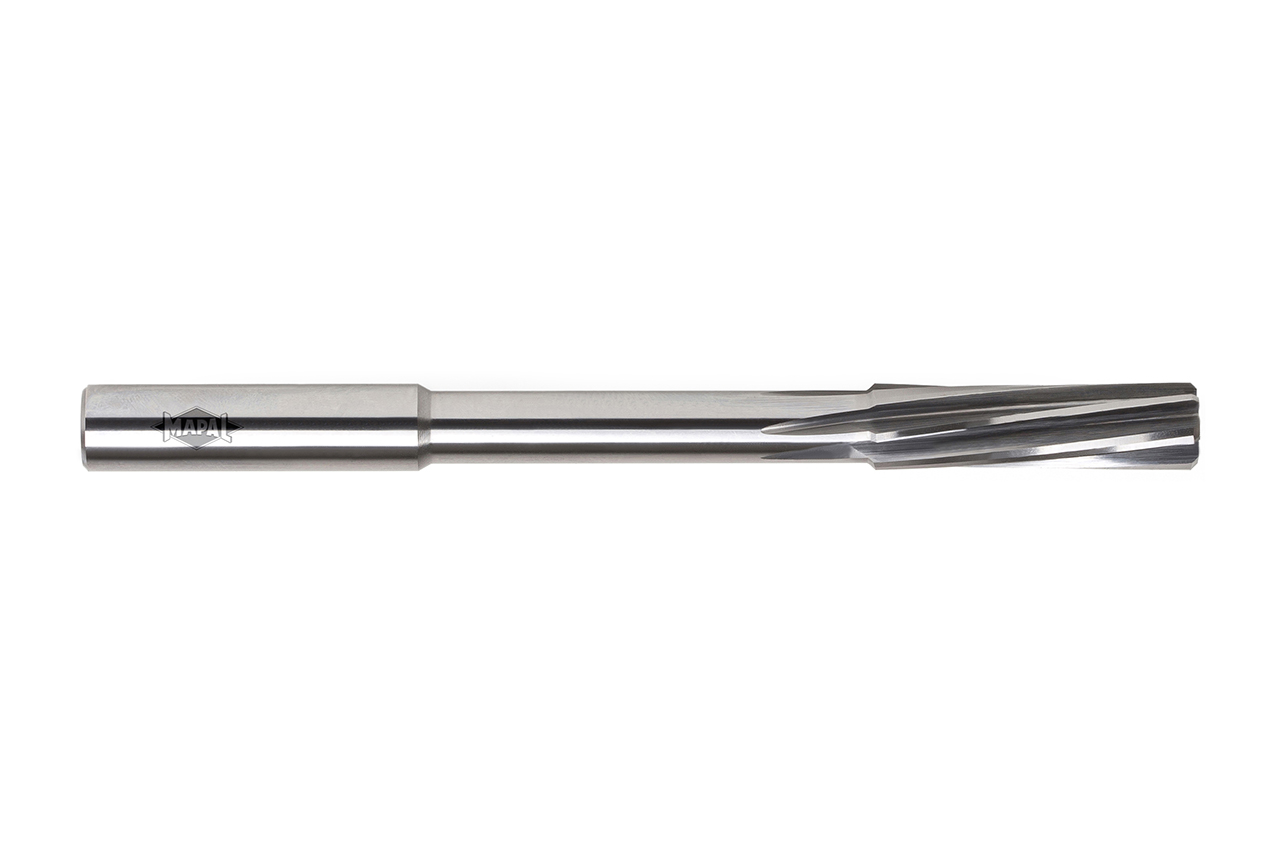

  • Product image NC machine reamer

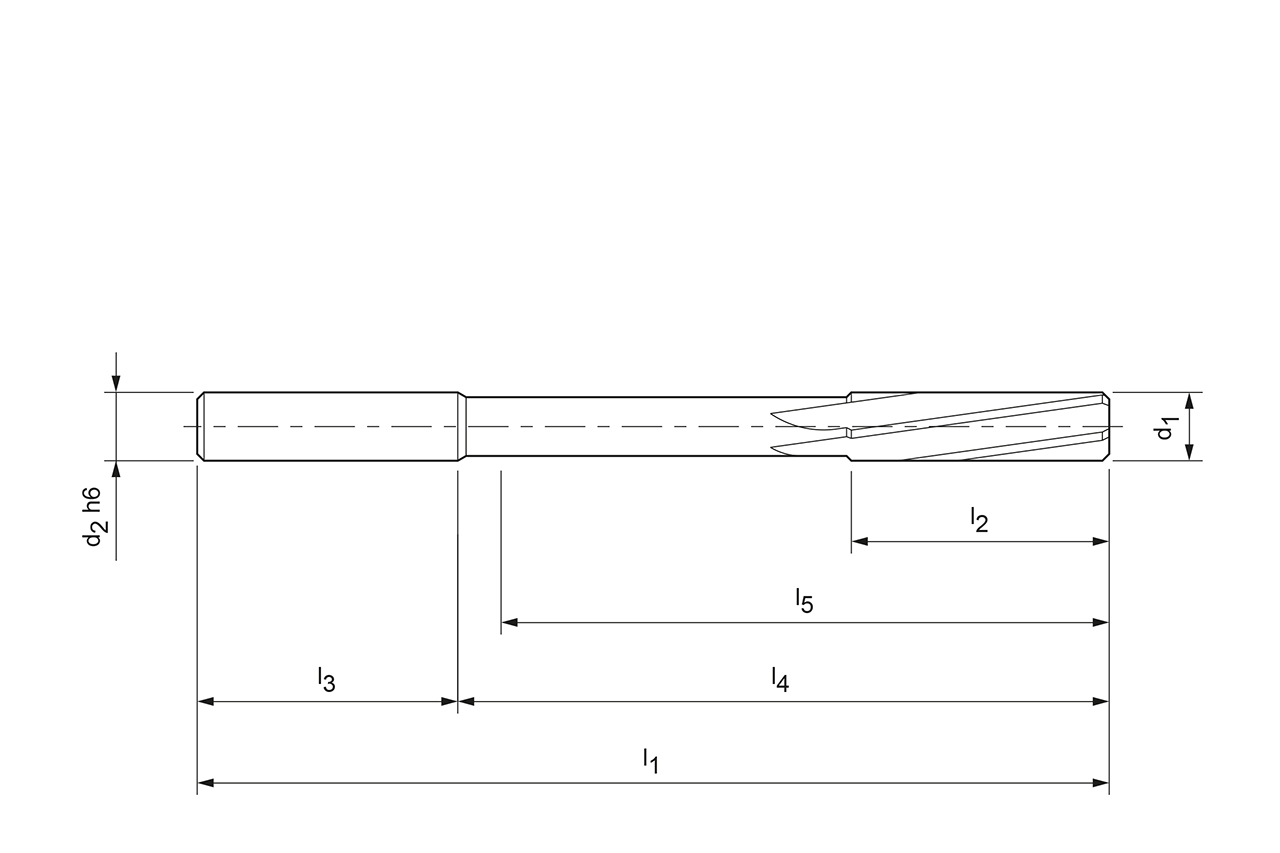

  • Technical drawing NC machine reamer

Diameter d1 (mm)

3.0

Your unit price

*Login required

Article

30712912

Quantity

Added to Your Shopping Cart

Product description

NC machine reamers are a particularly cost-effective option for the production of precise bores. While their performance data is below that of high-performance reamers, these tools are widely used because they are characterized by their quality and ease of use.

Material suitability

Technical specifications

Connection type
Cylindrical shank
Connection size
0040
Type of bore
Through bore
d1
3   mm
d3
4   mm
l1
65   mm
l2
17   mm
l3
28   mm
l4
0   mm
l5
33   mm
Tolerance
H7
Cutting material
HU613
Number of cutting edges (z)
6
Material group
X4

Downloads

Technical drawing in pdf
30712912_607586635-000-00-ED1.PDF
Technical drawing in dxf
30712912_607586635-000-00-ED1.DXF
Technical drawing in tif
30712912_607586635-000-00-ED1.TIF
3D envelope in stp
30712912_608198969-000-00-E43.STP
