NC machine reamer

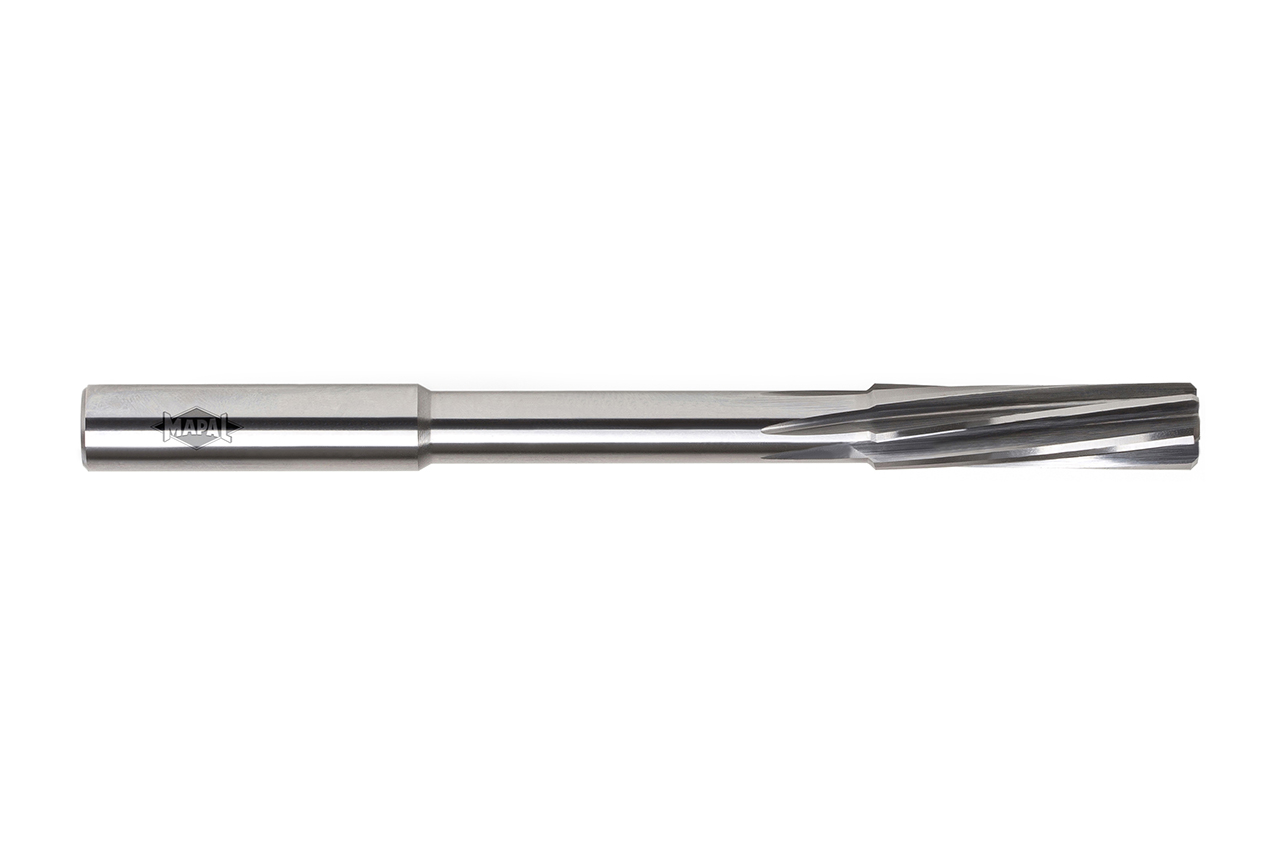

  • Product image NC machine reamer

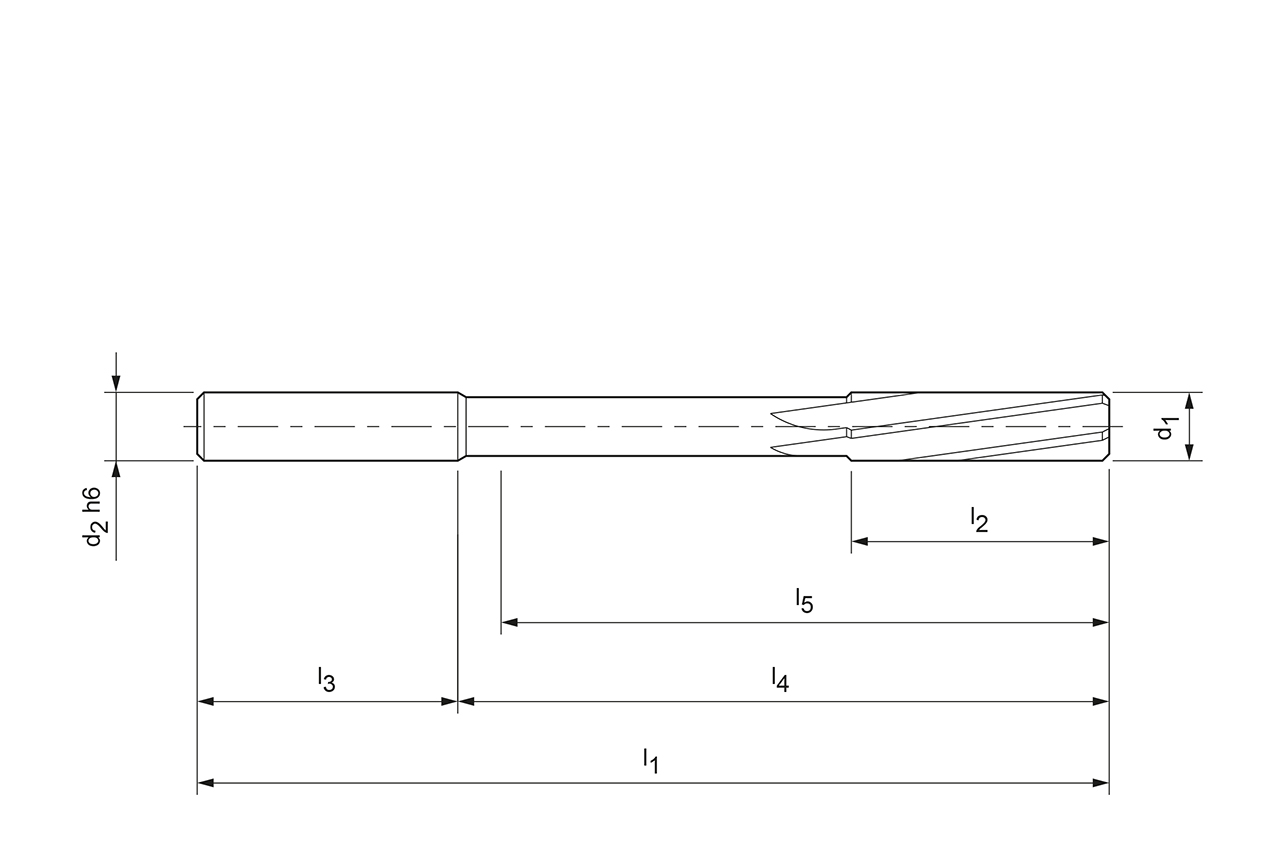

  • Produktzeichnung NC-Maschinenreibahle

Durchmesser d1 (mm)

2.97

Ihr Stückpreis

*Login erforderlich

Bestellnummer

30712909

Menge

Ihrem Warenkorb hinzugefügt

Produktbeschreibung

NC machine reamers are a particularly cost-effective option for the production of precise bores. While their performance data is below that of high-performance reamers, these tools are widely used because they are characterized by their quality and ease of use.

Materialeignung

Technische Daten

Trennstelle
Zylinderschaft
Trennstellengröße
4
Bohrungsart
Durchgangsbohrung
d1
2.97   mm
d2
4   mm
l1
65   mm
l2
17   mm
l3
28   mm
l4
0   mm
l5
33   mm
Toleranz
+4
Schneidstoff
HU613
Kühlmittelaustritt
externe Kühlmittelzufuhr
Anzahl Schneiden (z)
6
Materialgruppe
X4
Spezifikation
MDR510G-8093-2BØ2.97+4-HU613
