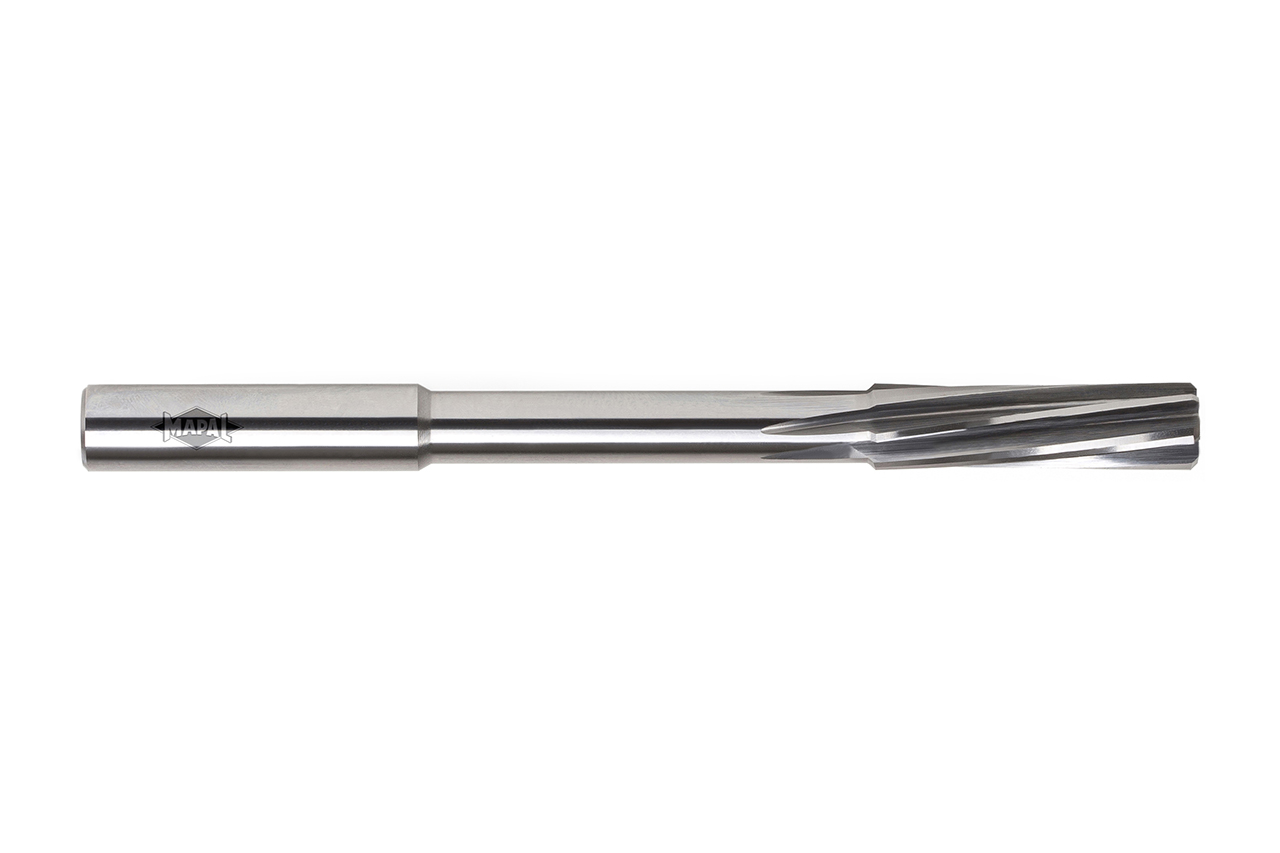

NC machine reamer
Diameter d1 (mm)
1.53
Your unit price
*Login requiredArticle
30712893
Quantity
Added to Your Shopping Cart
Product description
NC machine reamers are a particularly cost-effective option for the production of precise bores. While their performance data is below that of high-performance reamers, these tools are widely used because they are characterized by their quality and ease of use.

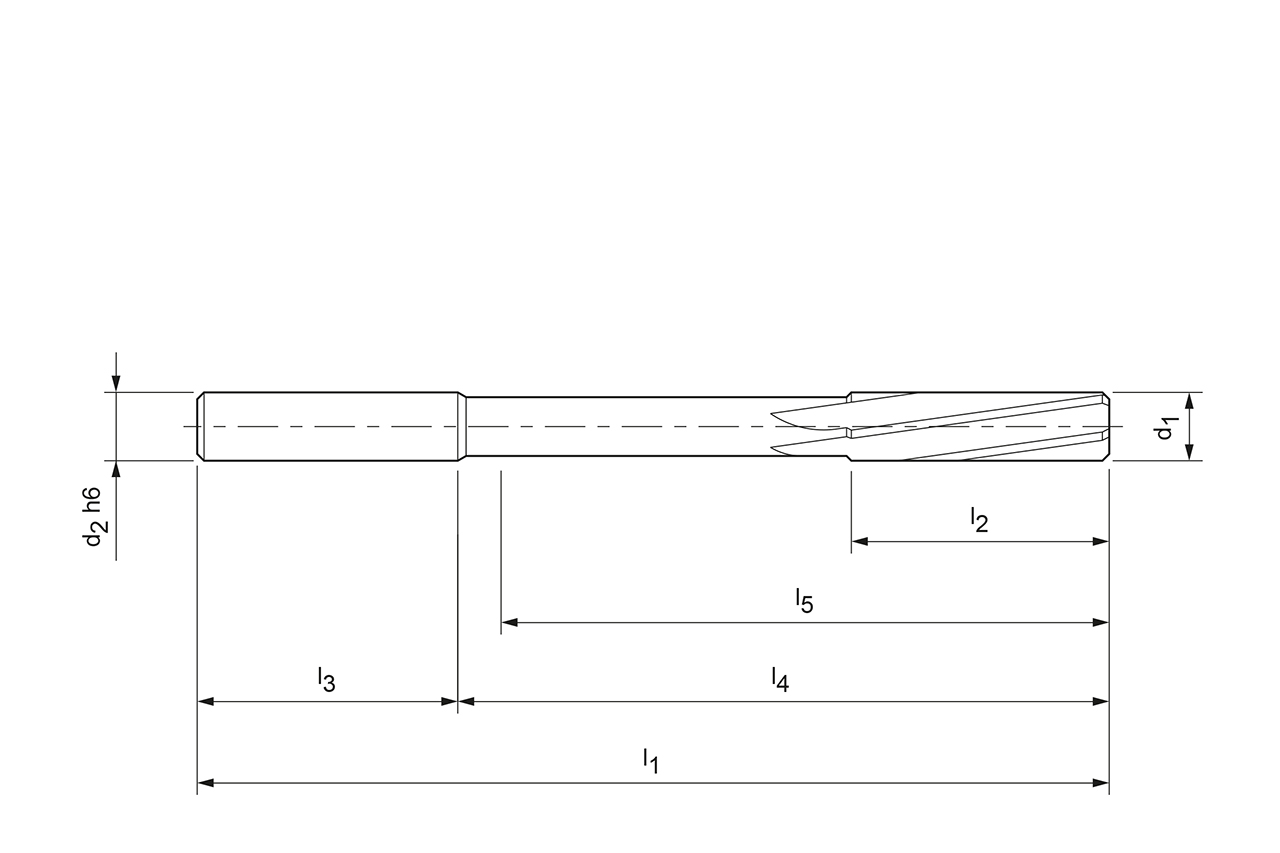

Technical specifications
- Connection type
- Cylindrical shank
- Connection size
- 3
- Type of bore
- Through bore
- d1
- 1.53 mm
- d3
- 3 mm
- l1
- 50 mm
- l2
- 10 mm
- l3
- 28 mm
- l4
- 0 mm
- l5
- 18 mm
- Tolerance
- +4
- Cutting material
- HU613
- Cooling
- external cooling
- Number of cutting edges (z)
- 3
- Material group
- X4
- Specification
- MDR510G-8093-2BØ1.53+4-HU613
