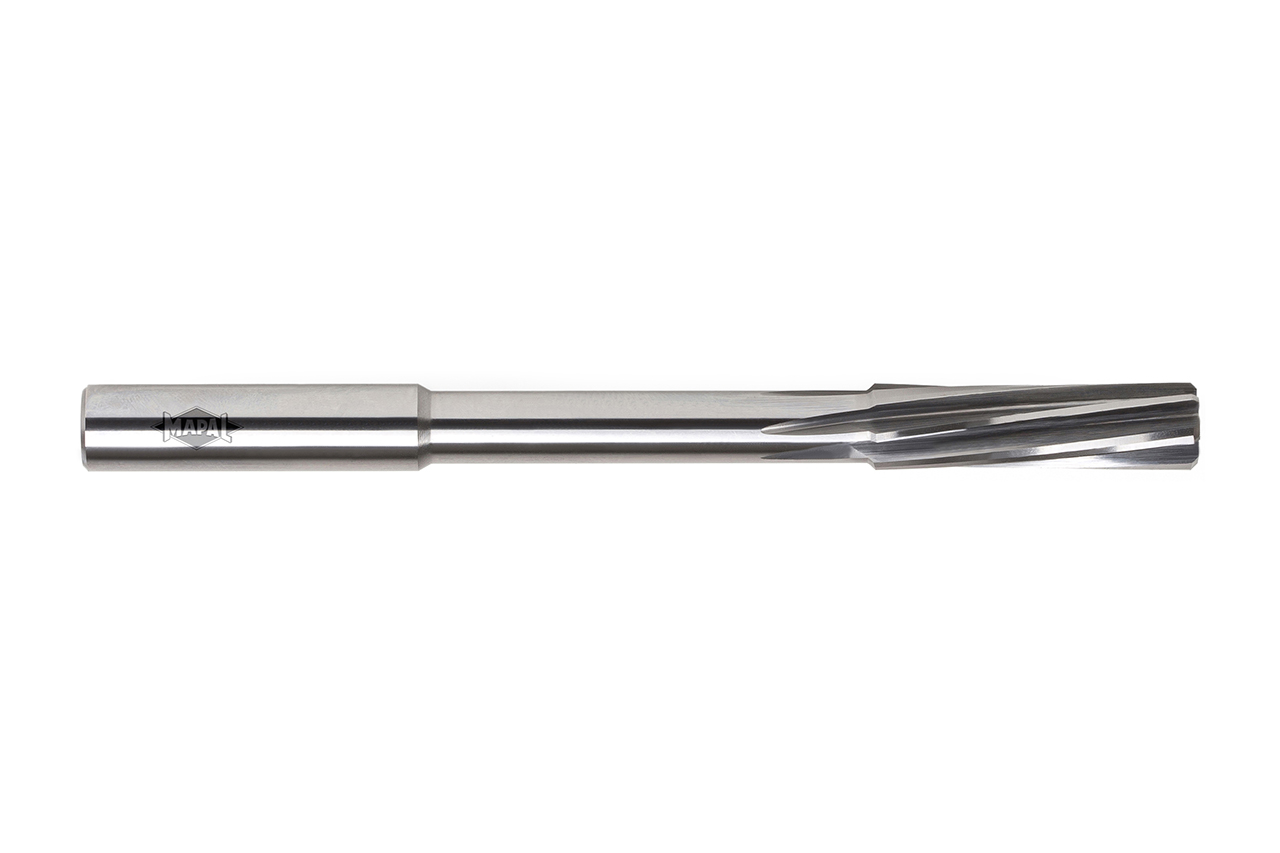

NC machine reamer
Durchmesser d1 (mm)
1.49
Ihr Stückpreis
*Login erforderlichBestellnummer
30712889
Menge
Ihrem Warenkorb hinzugefügt
Produktbeschreibung
NC machine reamers are a particularly cost-effective option for the production of precise bores. While their performance data is below that of high-performance reamers, these tools are widely used because they are characterized by their quality and ease of use.

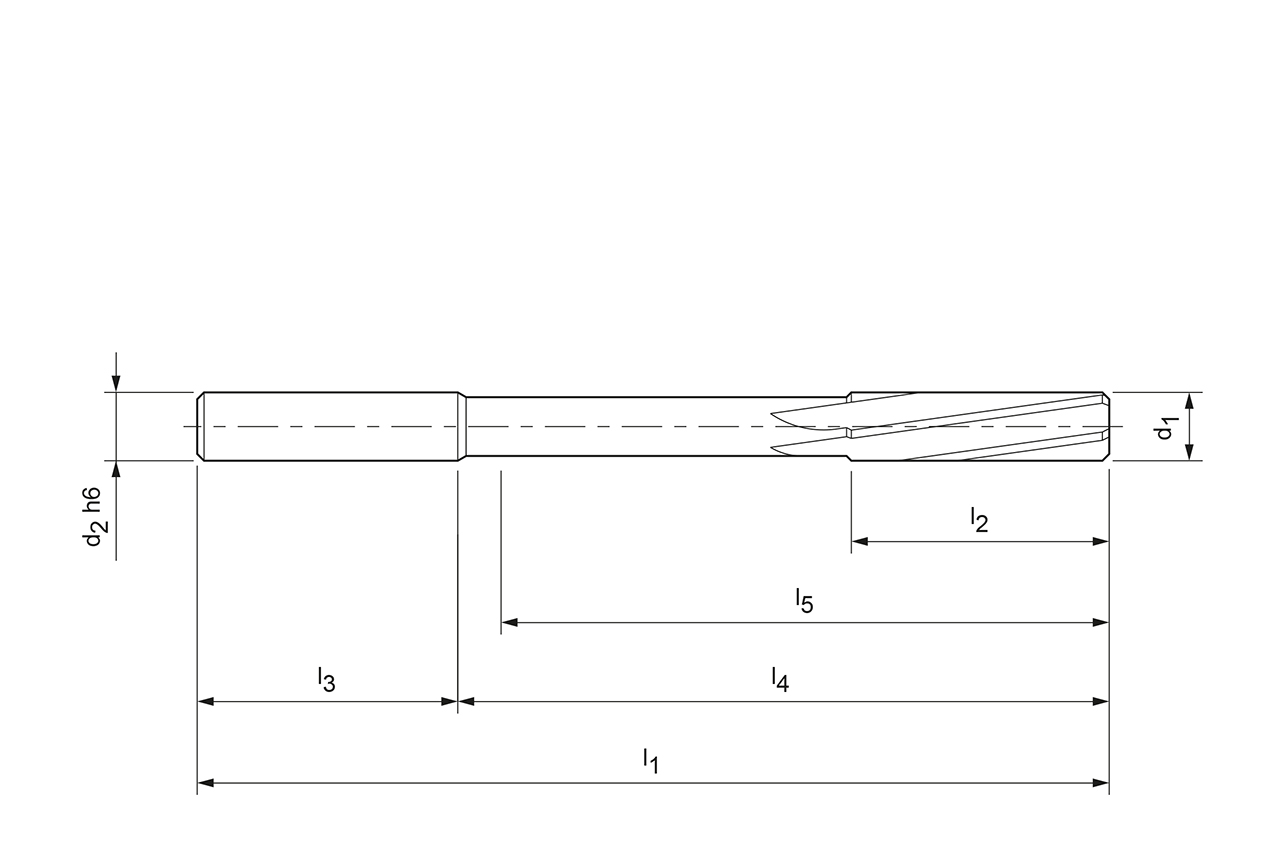

Technische Daten
- Trennstelle
- Zylinderschaft
- Trennstellengröße
- 3
- Bohrungsart
- Durchgangsbohrung
- d1
- 1.49 mm
- d2
- 3 mm
- l1
- 50 mm
- l2
- 9 mm
- l3
- 28 mm
- l4
- 0 mm
- l5
- 18 mm
- Toleranz
- +4
- Schneidstoff
- HU613
- Kühlmittelaustritt
- externe Kühlmittelzufuhr
- Anzahl Schneiden (z)
- 3
- Materialgruppe
- X4
- Spezifikation
- MDR510G-8093-2BØ1.49+4-HU613
