NC machine reamer
Diameter d1 (mm)
1.02
Your unit price
*Login requiredArticle
30712884
Quantity
Added to Your Shopping Cart
Product description
NC machine reamers are a particularly cost-effective option for the production of precise bores. While their performance data is below that of high-performance reamers, these tools are widely used because they are characterized by their quality and ease of use.

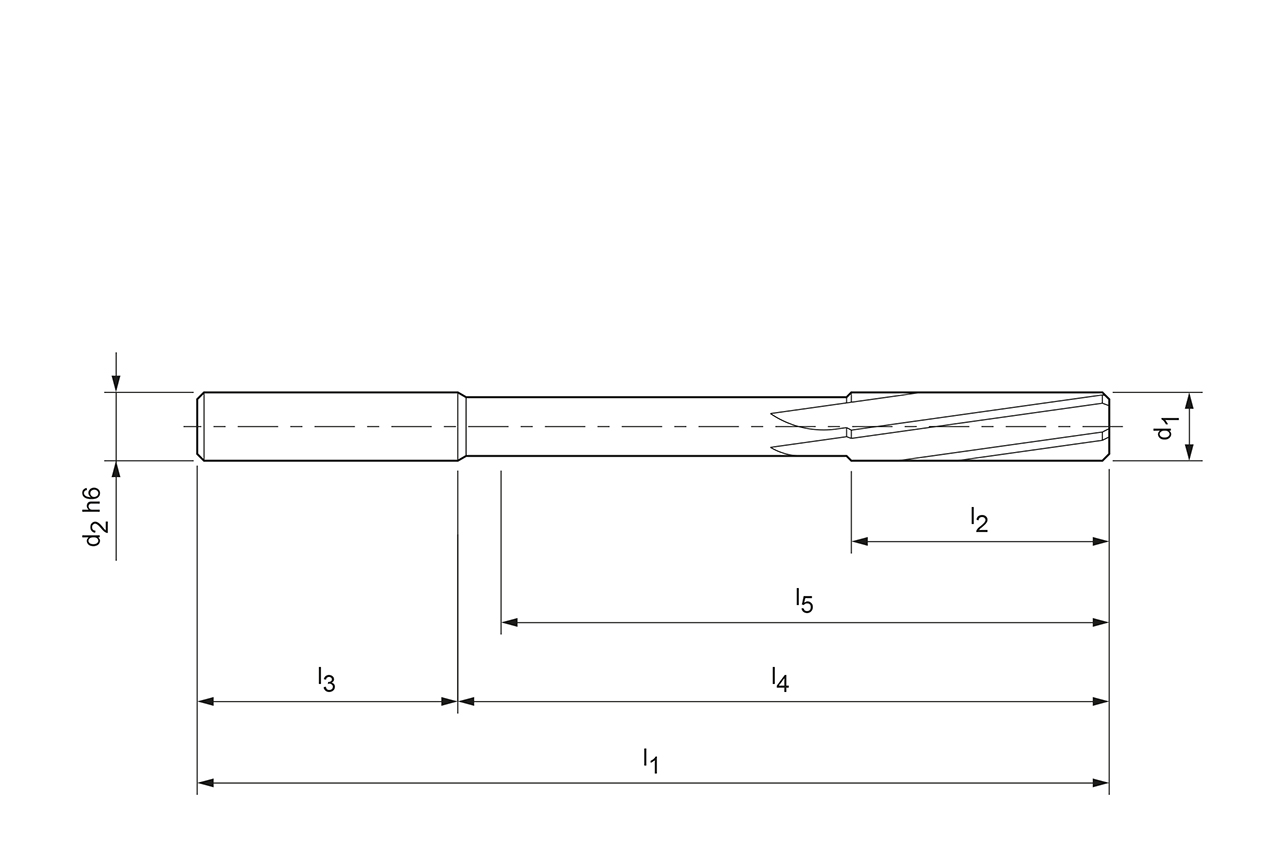

Technical specifications
- Connection type
- Cylindrical shank
- HFS connection size
- 0030
- Type of bore
- Through bore
- d1
- 1.02 mm
- d3
- 3 mm
- l1
- 50 mm
- l2
- 6 mm
- l3
- 28 mm
- l4
- 0 mm
- l5
- 17.5 mm
- Tolerance
- +4
- Cutting material
- HU613
- Number of cutting edges (z)
- 3
- Material group
- X4
