NC machine reamer

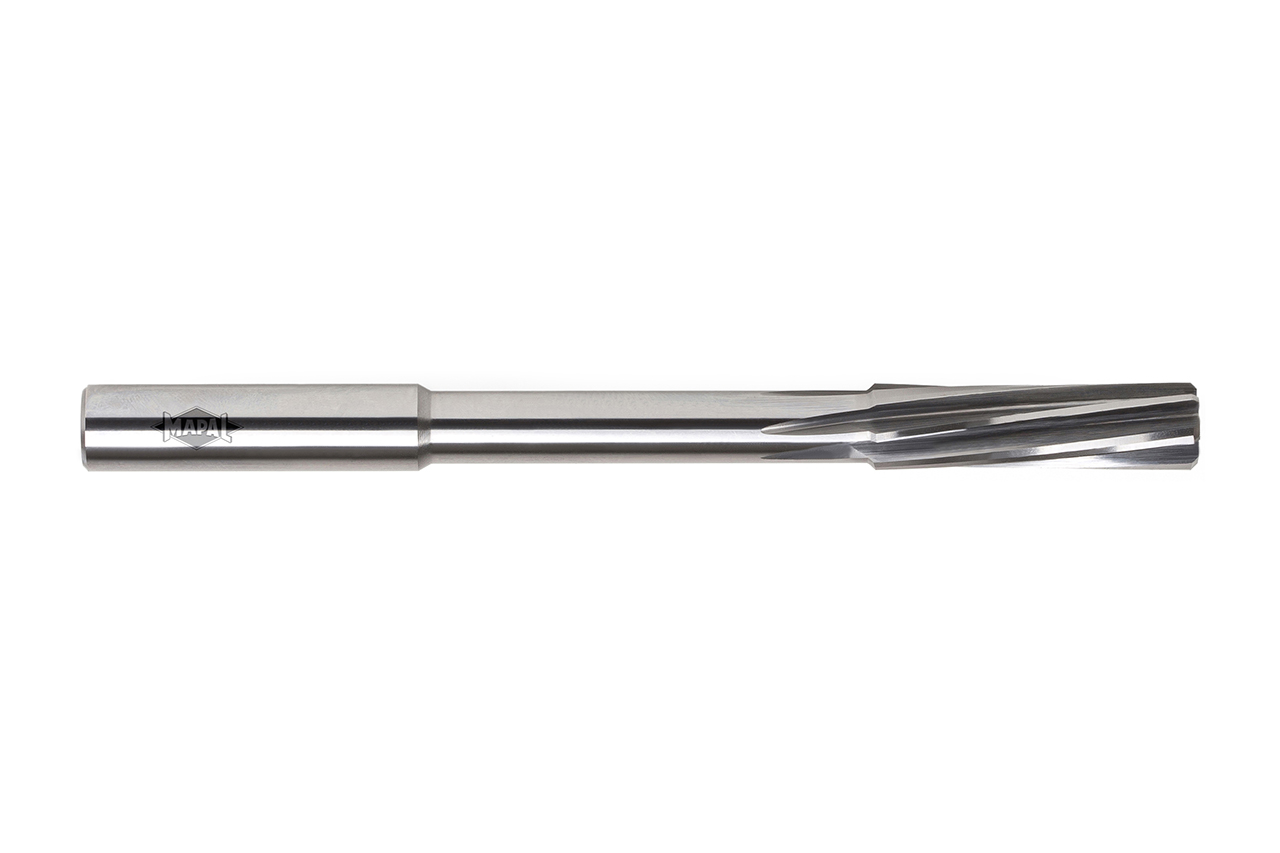

  • Product image NC machine reamer

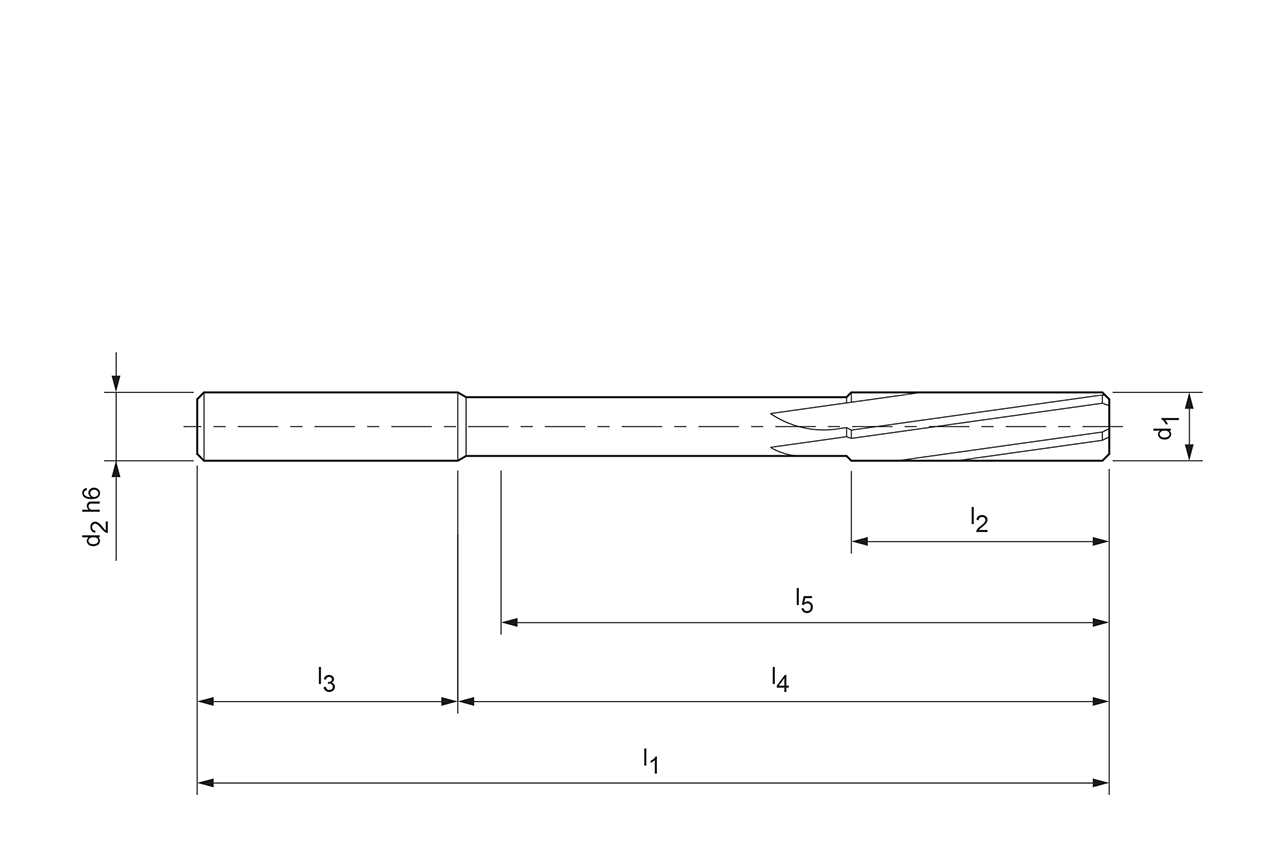

  • Technical drawing NC machine reamer

Diameter d1 (mm)

0.99

Your unit price

*Login required

Article

30712881

Quantity

Added to Your Shopping Cart

Product description

NC machine reamers are a particularly cost-effective option for the production of precise bores. While their performance data is below that of high-performance reamers, these tools are widely used because they are characterized by their quality and ease of use.

Material suitability

Technical specifications

Connection type
Cylindrical shank
Trennstellengröße
3
Bohrungsart
Durchgangsbohrung
d1
0.99   mm
d2
3   mm
l1
50   mm
l2
6   mm
l3
28   mm
l4
0   mm
l5
17.5   mm
Toleranz
+4
Schneidstoff
HU613
Kühlmittelaustritt
externe Kühlmittelzufuhr
Anzahl Schneiden (z)
3
Materialgruppe
X4
Spezifikation
MDR510G-8093-2BØ0.99+4-HU613
