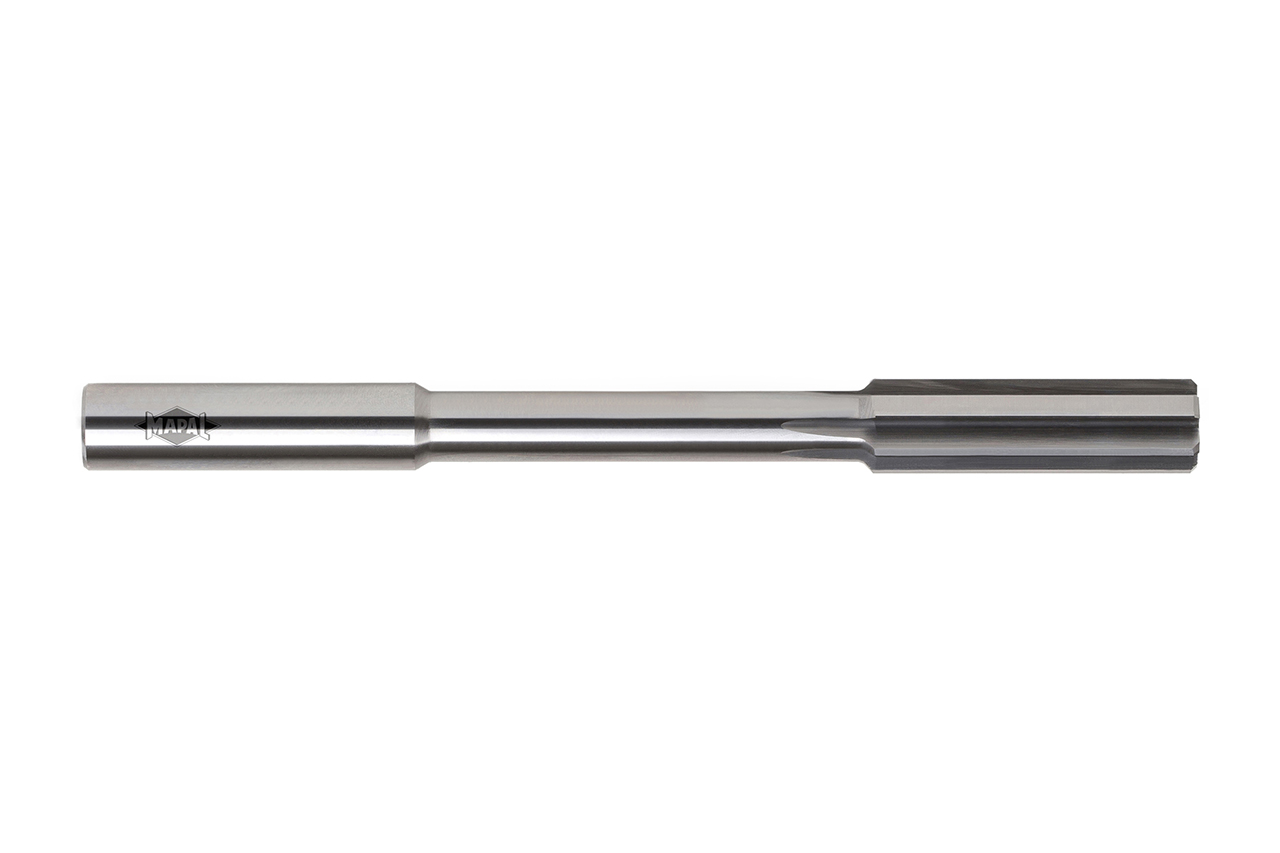

NC machine reamer
Diameter d1 (mm)
7.5
Your unit price
*Login requiredArticle
30712863
Quantity
Added to Your Shopping Cart
Product description
NC machine reamers are a particularly cost-effective option for the production of precise bores. While their performance data is below that of high-performance reamers, these tools are widely used because they are characterized by their quality and ease of use.

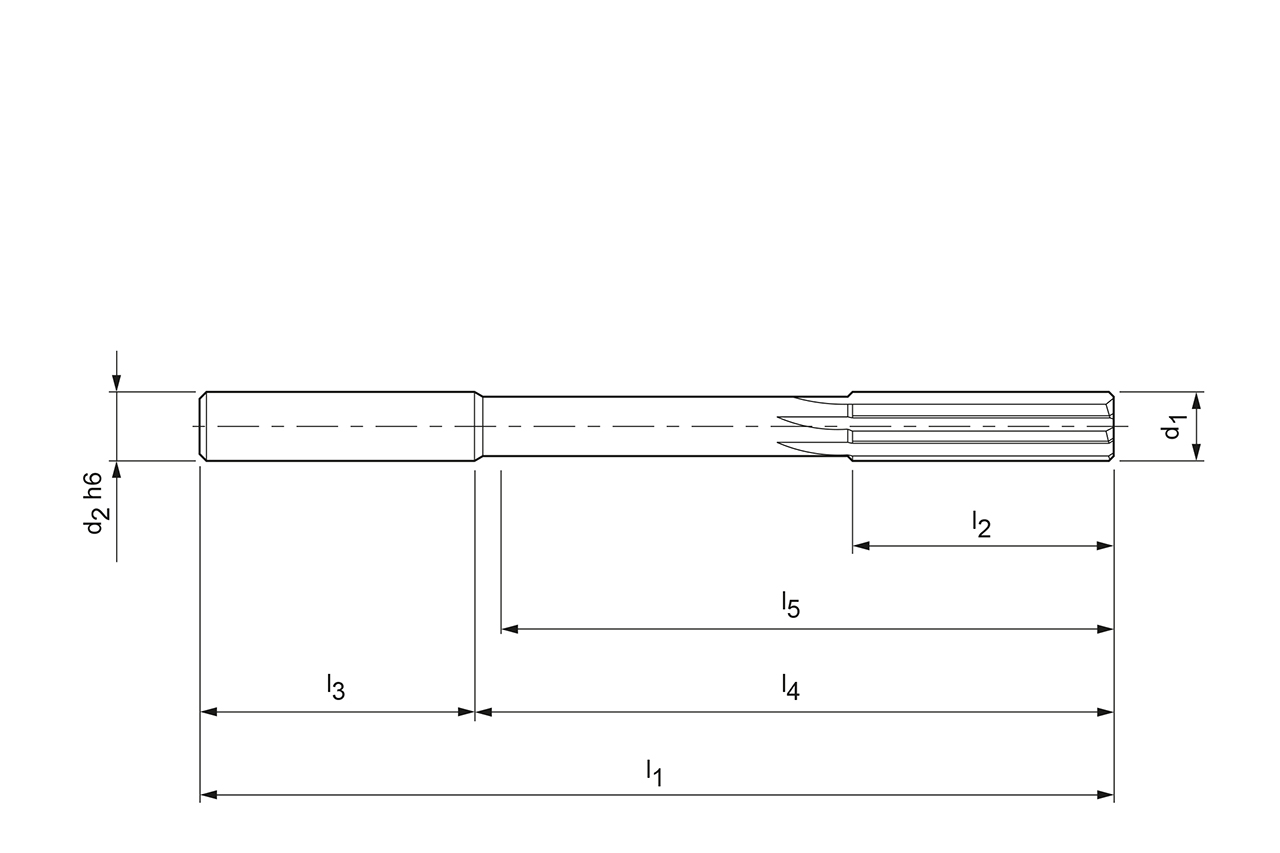

Technical specifications
- Connection type
- ZYL99
- Type of bore
- Through & blind bore
- d1
- 7.5 mm
- d3
- 8 mm
- l1
- 109 mm
- l2
- 31 mm
- l4
- 0 mm
- l5
- 68 mm
- Tolerance
- H7
- Cutting material
- HU613
- Number of cutting edges (z)
- 6
- Material group
- X4
