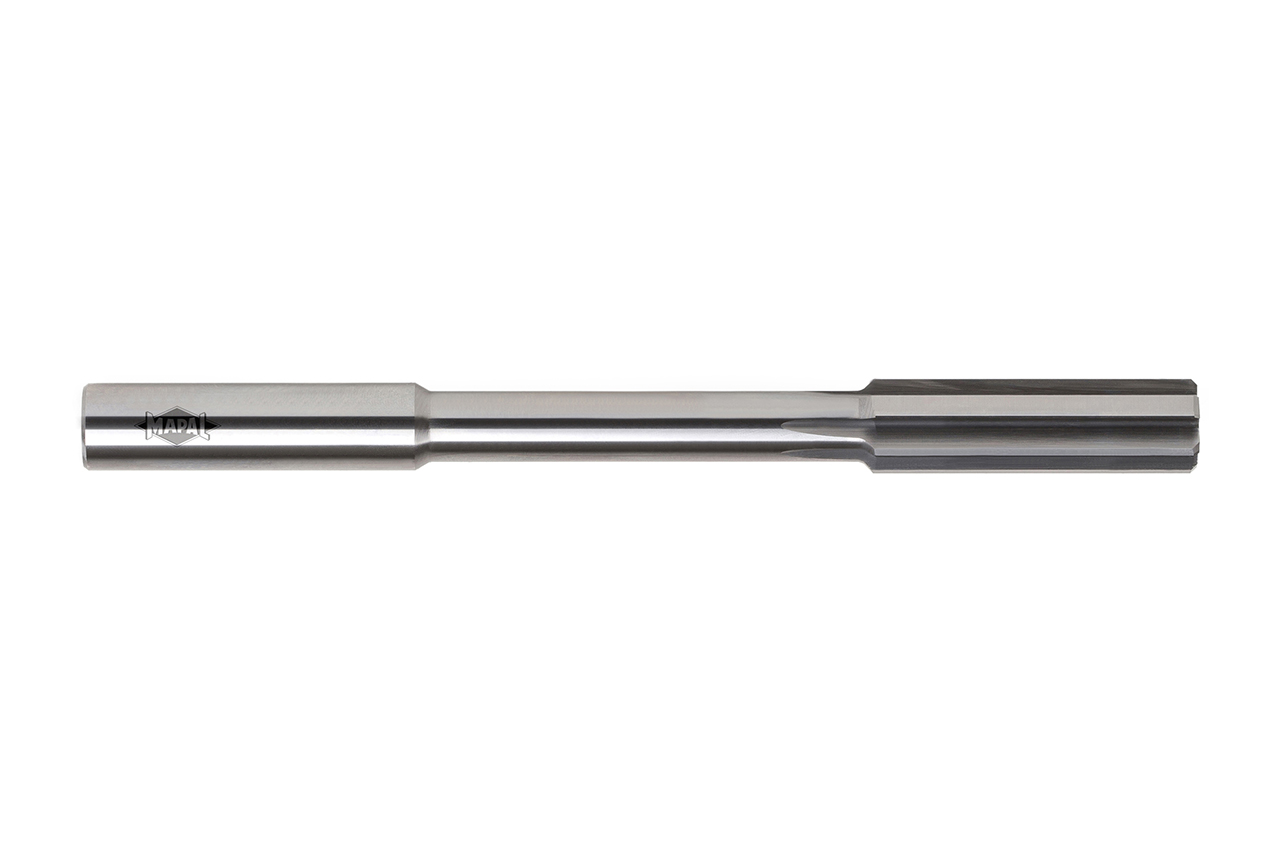

NC machine reamer

Diameter d1 (mm)

5.0

Your unit price

*Login required

Article

30712858

Quantity

Added to Your Shopping Cart

Product description

NC machine reamers are a particularly cost-effective option for the production of precise bores. While their performance data is below that of high-performance reamers, these tools are widely used because they are characterized by their quality and ease of use.

Material suitability

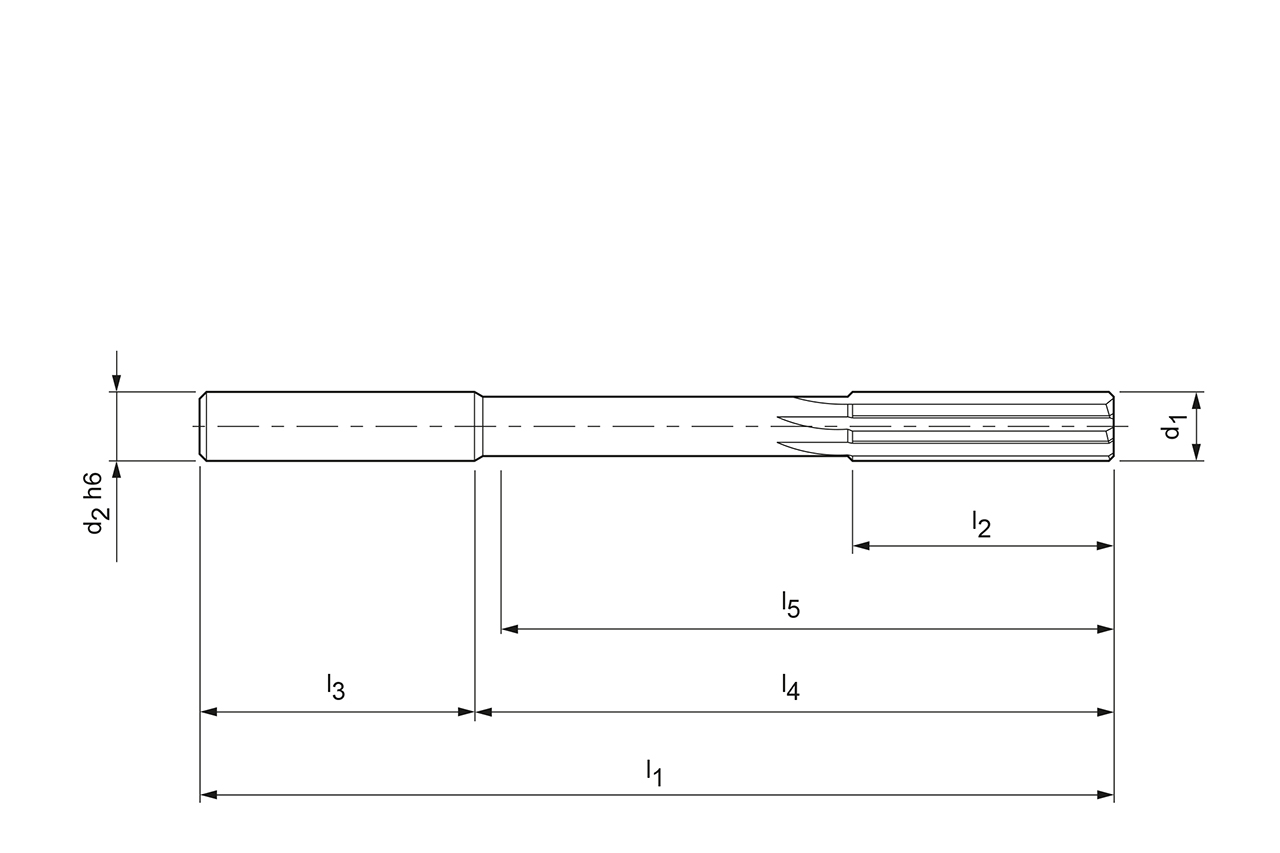

Technical specifications

Connection type: ZYL99
Type of bore: Through & blind bore
d1: 5 mm
d3: 6 mm
l1: 93 mm
l2: 23 mm
l4: 0 mm
l5: 52 mm
Tolerance: H7
Cutting material: HU613
Number of cutting edges (z): 6
Material group: X4
