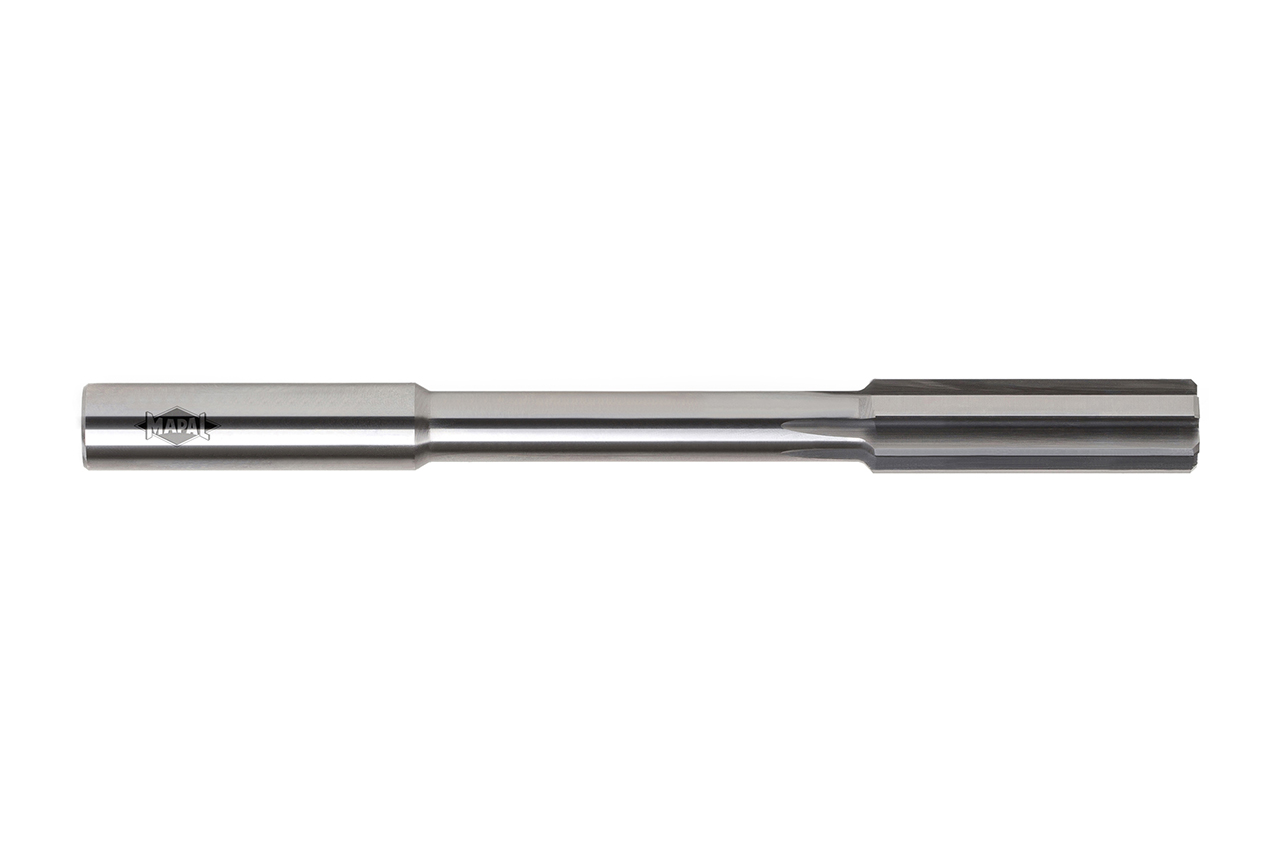

NC machine reamer

Durchmesser d1 (mm)

4.5

Ihr Stückpreis

*Login erforderlich

Bestellnummer

30712857

Menge

Ihrem Warenkorb hinzugefügt

Produktbeschreibung

NC machine reamers are a particularly cost-effective option for the production of precise bores. While their performance data is below that of high-performance reamers, these tools are widely used because they are characterized by their quality and ease of use.

Materialeignung

Technische Daten

Trennstelle
Zylinderschaft
Trennstellengröße
6
Bohrungsart
für Durchgangs- und Sackloch

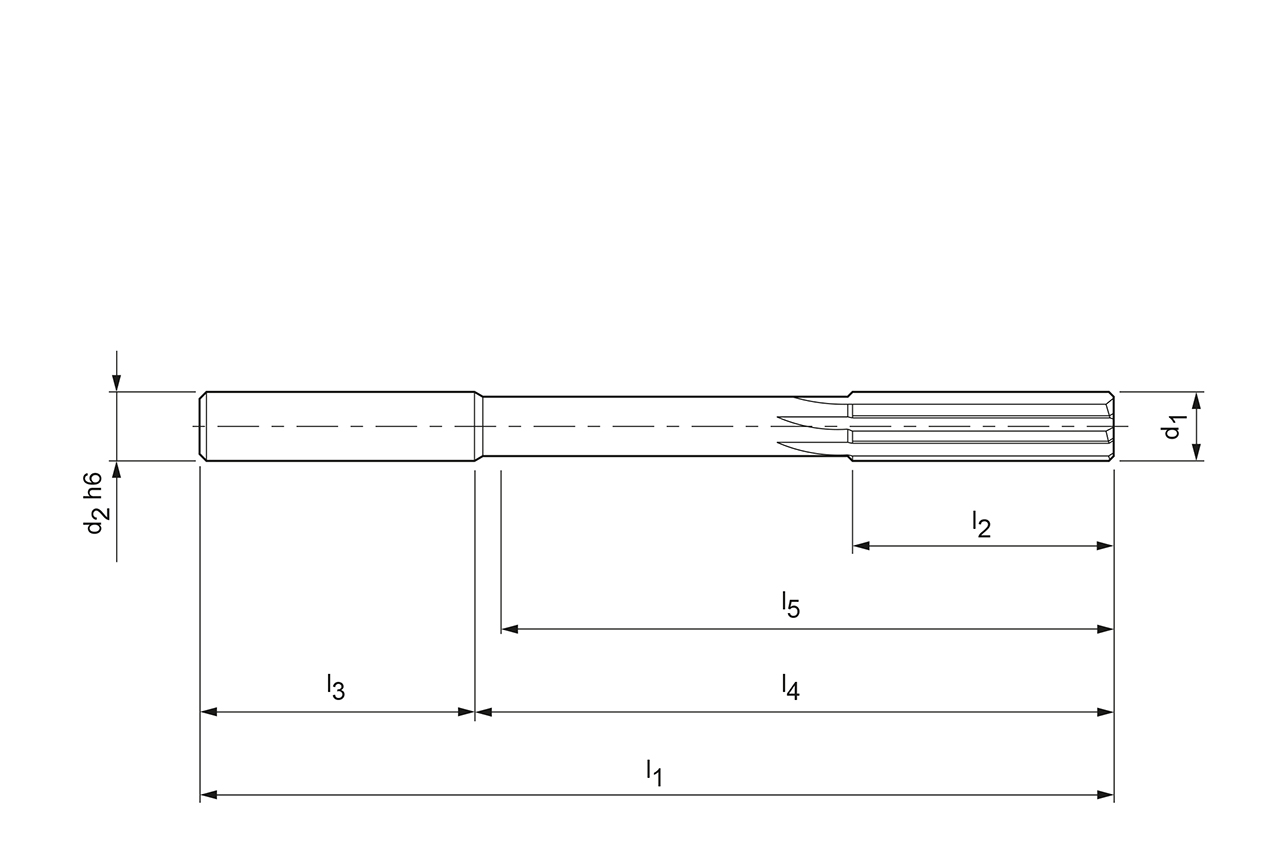

d1
4.5   mm
d2
6   mm
l1
80   mm
l2
21   mm
l3
36   mm
l4
0   mm
l5
39   mm
Toleranz
H7
Schneidstoff
HU613
Kühlmittelaustritt
externe Kühlmittelzufuhr
Anzahl Schneiden (z)
6
Materialgruppe
X4
Spezifikation
MDR500-8093-2AØ4.5H7-HU613
