HPR | HPR150

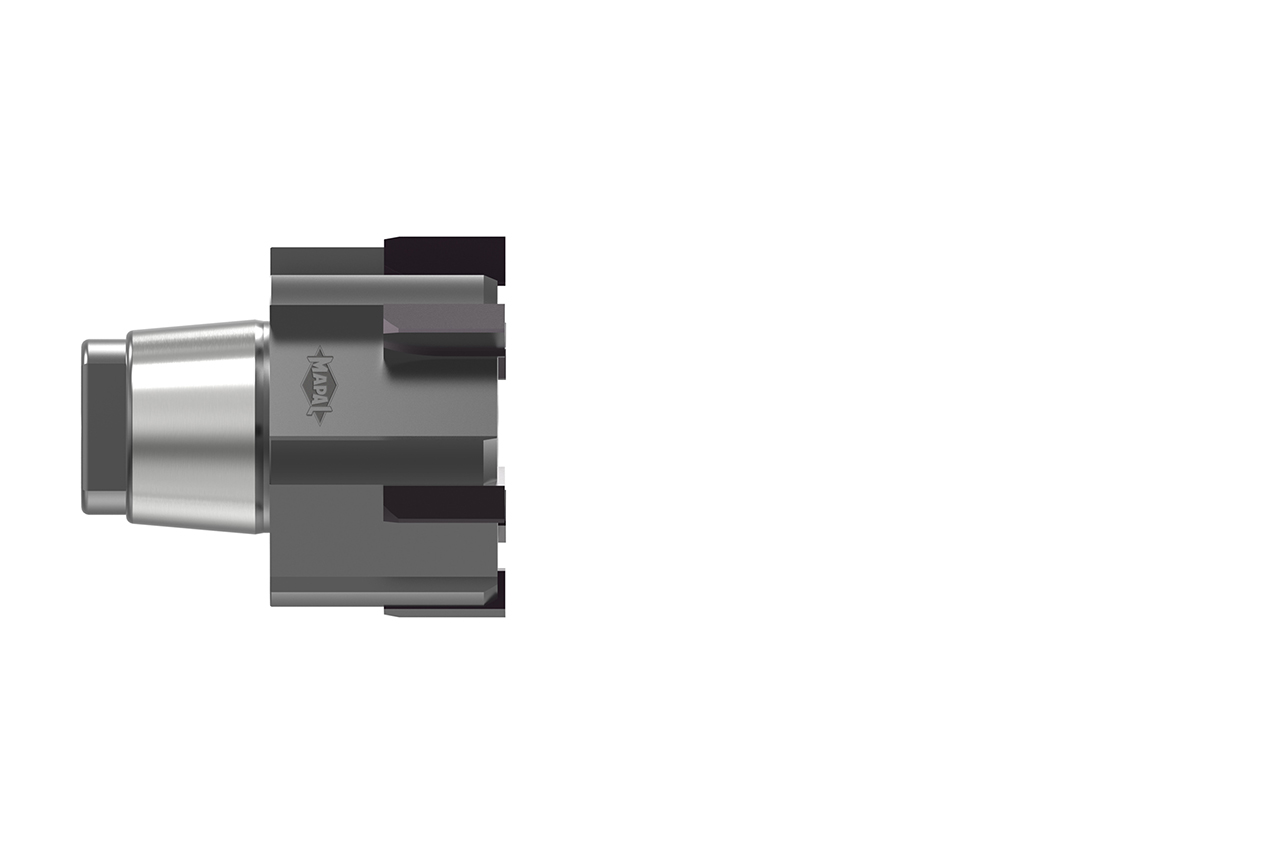

  • Product image HPR 1++

Diameter d1 (mm)

30.0

Your unit price

*Login required

Article

30975775

Quantity

Added to Your Shopping Cart

Product description

The HPR exchangeable head reamer by MAPAL offers precise concentricity and exchange accuracy of 3 μm, along with easy handling during tool head assembly and disassembly. The internal cooling system allows coolant to directly exit at the cutting edges, ensuring efficient cooling. Consequently, the HPR reamers are suitable for minimum quantity lubrication and provide high precision and tool life. The standard range includes various series for through-holes and blind holes.

Material suitability

Technical specifications

Connection type
HFS
Connection size
0160
Type of bore
Blind bore

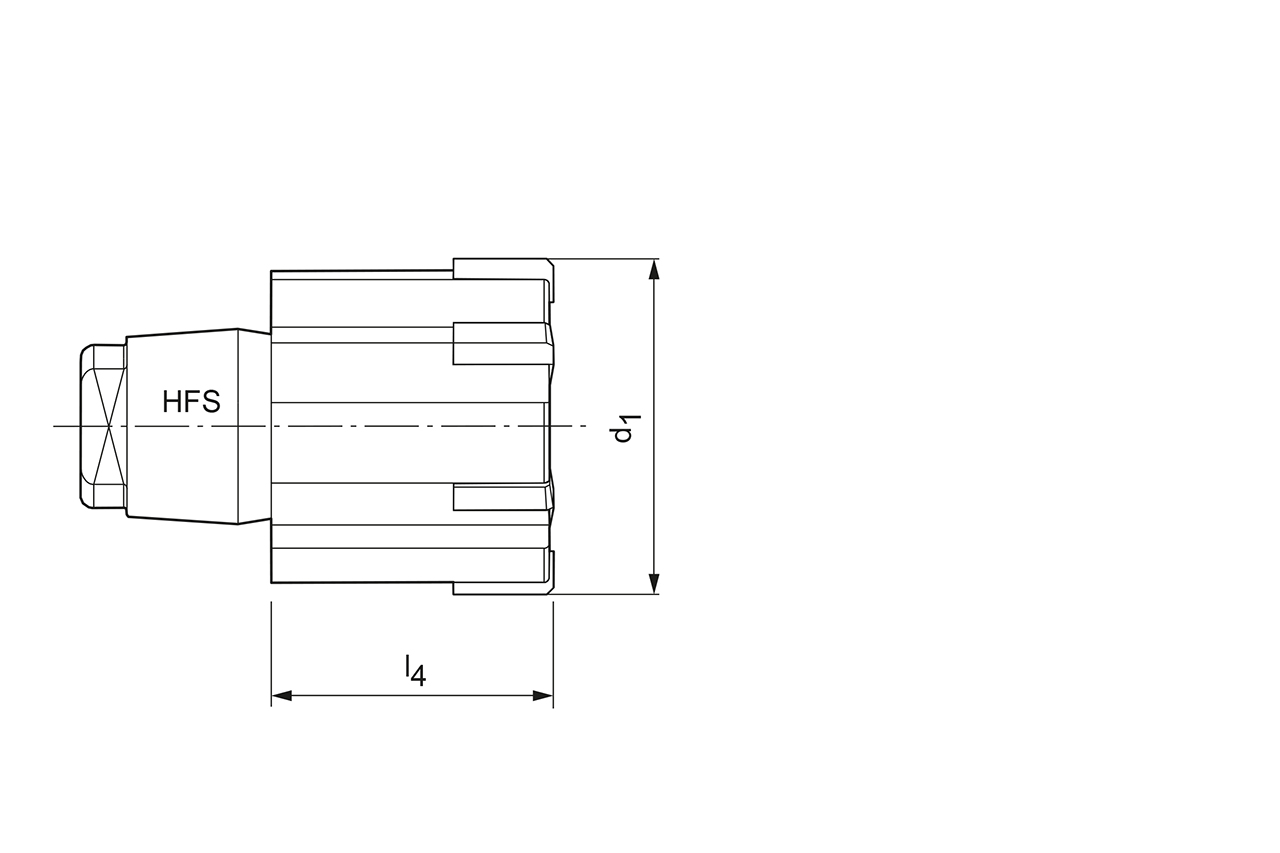

d1
30   mm
l1
31   mm
l2
8   mm
l4
17   mm
l5
17   mm
Toleranz
H7
Kühlmittelaustritt
4
Anzahl Schneiden (z)
6
Materialgruppe
O
Spezifikation
HPR150Ø30.0H7MO2G-HP421

Downloads

3D Hüllkontur in stp
30975775_607749030-000-00-E43.STP
Technische Zeichnung in pdf
30975775_607876204-000-00-ED1.PDF
Technische Zeichnung in dxf
30975775_607876204-000-00-ED1.DXF
Technische Zeichnung in tif
30975775_607876204-000-00-ED1.TIF
Cutting data recommendations
30975775_HPR_EN.pdf
