HPR | HPR110

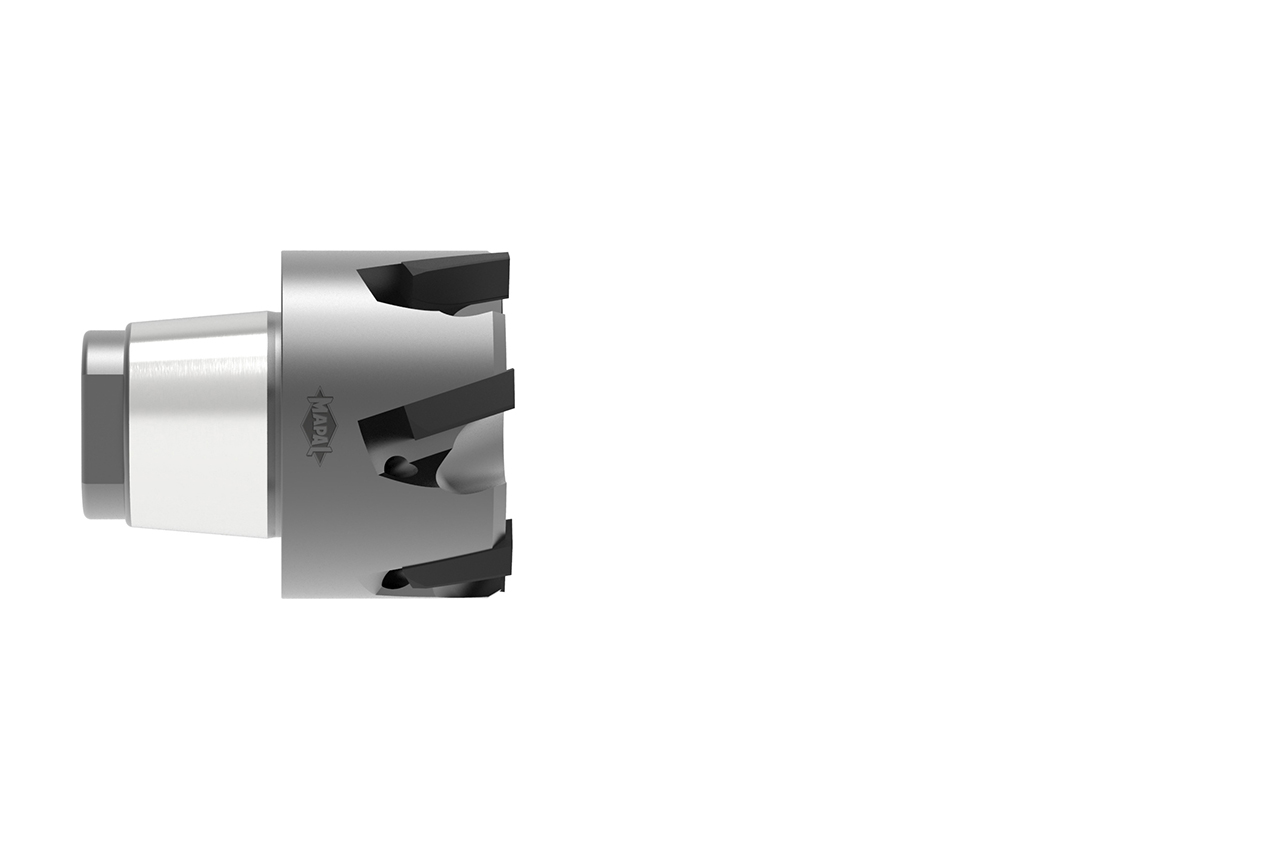

  • Product image HPR 1++

Durchmesser d1 (mm)

33.0

Ihr Stückpreis

*Login erforderlich

Bestellnummer

30710301

Menge

Ihrem Warenkorb hinzugefügt

Produktbeschreibung

The HPR exchangeable head reamer by MAPAL offers precise concentricity and exchange accuracy of 3 μm, along with easy handling during tool head assembly and disassembly. The internal cooling system allows coolant to directly exit at the cutting edges, ensuring efficient cooling. Consequently, the HPR reamers are suitable for minimum quantity lubrication and provide high precision and tool life. The standard range includes various series for through-holes and blind holes.

Materialeignung

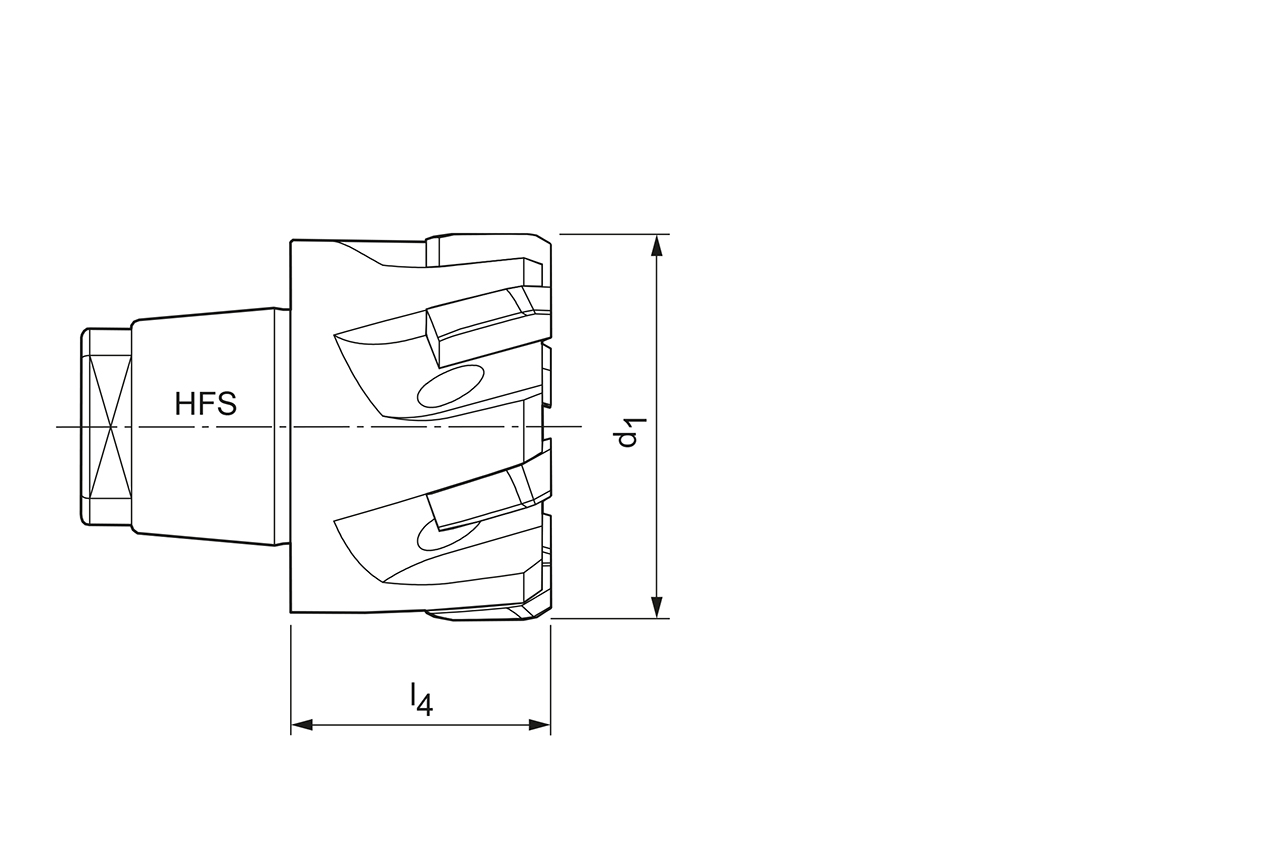

Technische Daten

Trennstelle
HFS
Trennstellengröße
20
Bohrungsart
Durchgangsbohrung
d1
33   mm
l1
32   mm
l2
8   mm
l4
17   mm
l5
17   mm
Toleranz
H7
Kühlmittelaustritt
innere Kühlmittelzufuhr
Anzahl Schneiden (z)
8
Materialgruppe
O
Spezifikation
HPR110Ø33.00H7MF1G-HP421

Downloads

3D Hüllkontur in stp
30710301_607749021-000-00-E43.STP
Technische Zeichnung in pdf
30710301_607875867-000-00-ED1.PDF
Technische Zeichnung in dxf
30710301_607875867-000-00-ED1.DXF
Technische Zeichnung in tif
30710301_607875867-000-00-ED1.TIF
Cutting data recommendations
30710301_HPR_EN.pdf
