HPR | HPR110

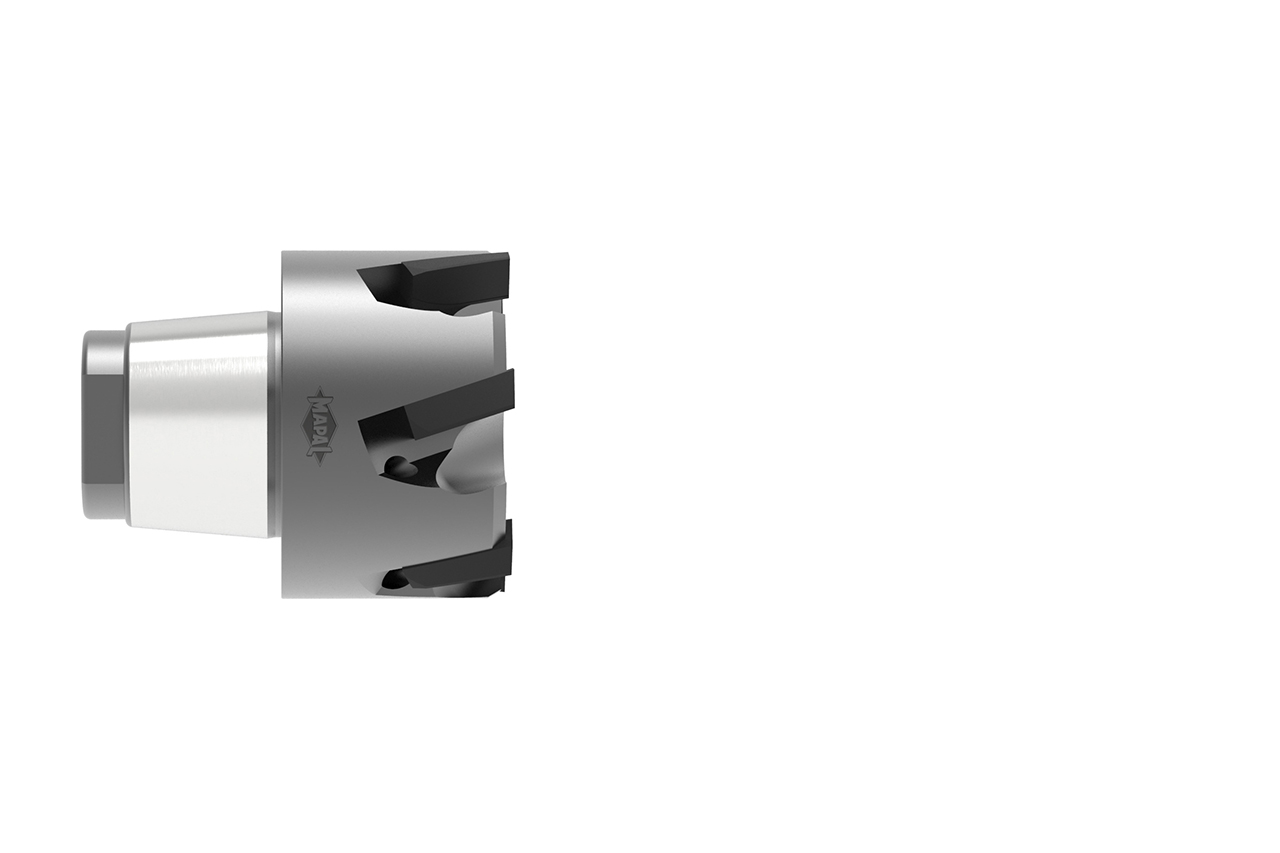

  • Product image HPR 1++

Diameter d1 (mm)

19.0

Your unit price

*Login required

Article

30710291

Quantity

Added to Your Shopping Cart

Product description

The HPR exchangeable head reamer by MAPAL offers precise concentricity and exchange accuracy of 3 μm, along with easy handling during tool head assembly and disassembly. The internal cooling system allows coolant to directly exit at the cutting edges, ensuring efficient cooling. Consequently, the HPR reamers are suitable for minimum quantity lubrication and provide high precision and tool life. The standard range includes various series for through-holes and blind holes.

Material suitability

Technical specifications

Connection type
HFS
Trennstellengröße
12
Bohrungsart
Durchgangsbohrung

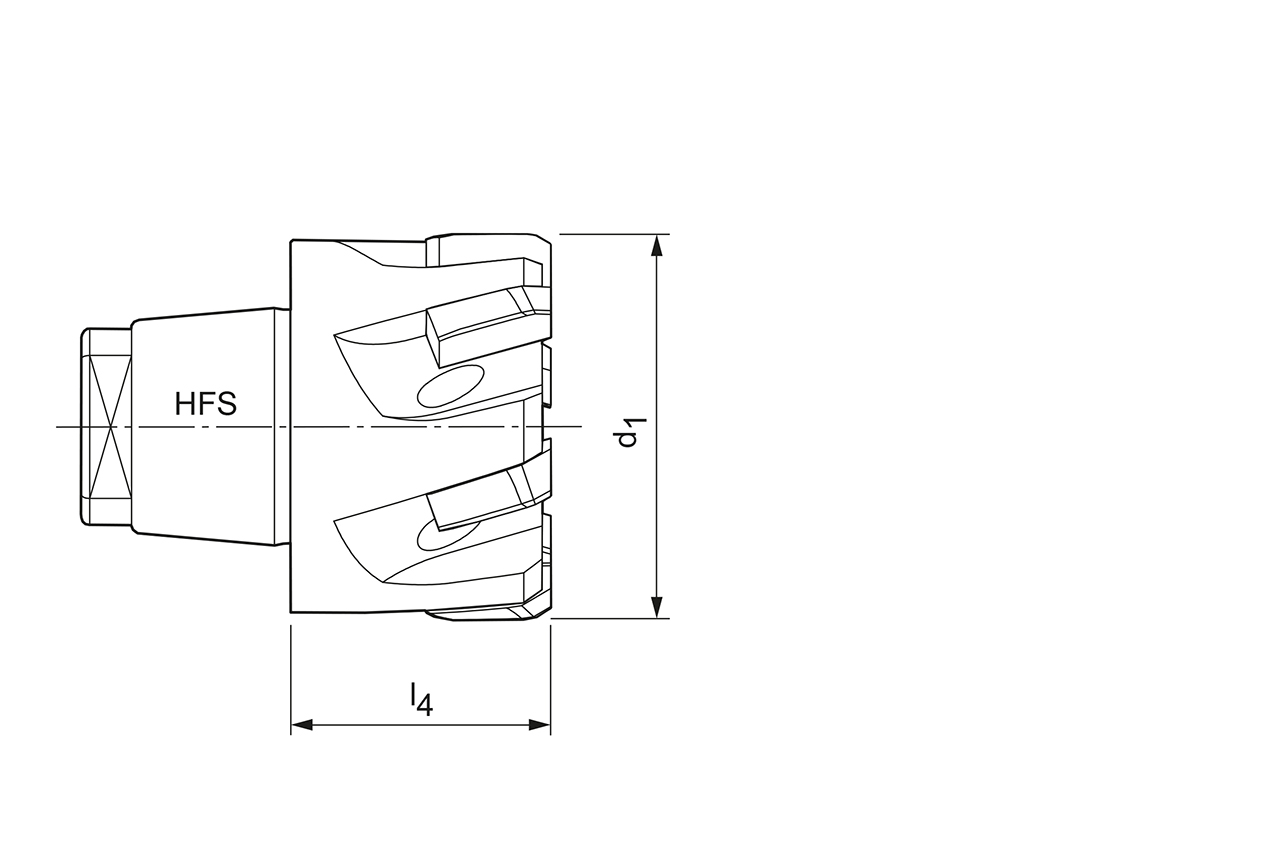

d1
19   mm
l1
26   mm
l2
6   mm
l4
14.5   mm
l5
14.5   mm
Toleranz
H7
Kühlmittelaustritt
innere Kühlmittelzufuhr
Anzahl Schneiden (z)
6
Materialgruppe
O
Spezifikation
HPR110Ø19.00H7MF1G-HP421

Downloads

3D Hüllkontur in stp
30710291_607749013-000-00-E43.STP
Technische Zeichnung in pdf
30710291_607875489-000-00-ED1.PDF
Technische Zeichnung in dxf
30710291_607875489-000-00-ED1.DXF
Technische Zeichnung in tif
30710291_607875489-000-00-ED1.TIF
Cutting data recommendations
30710291_HPR_EN.pdf
