HPR | HPR100

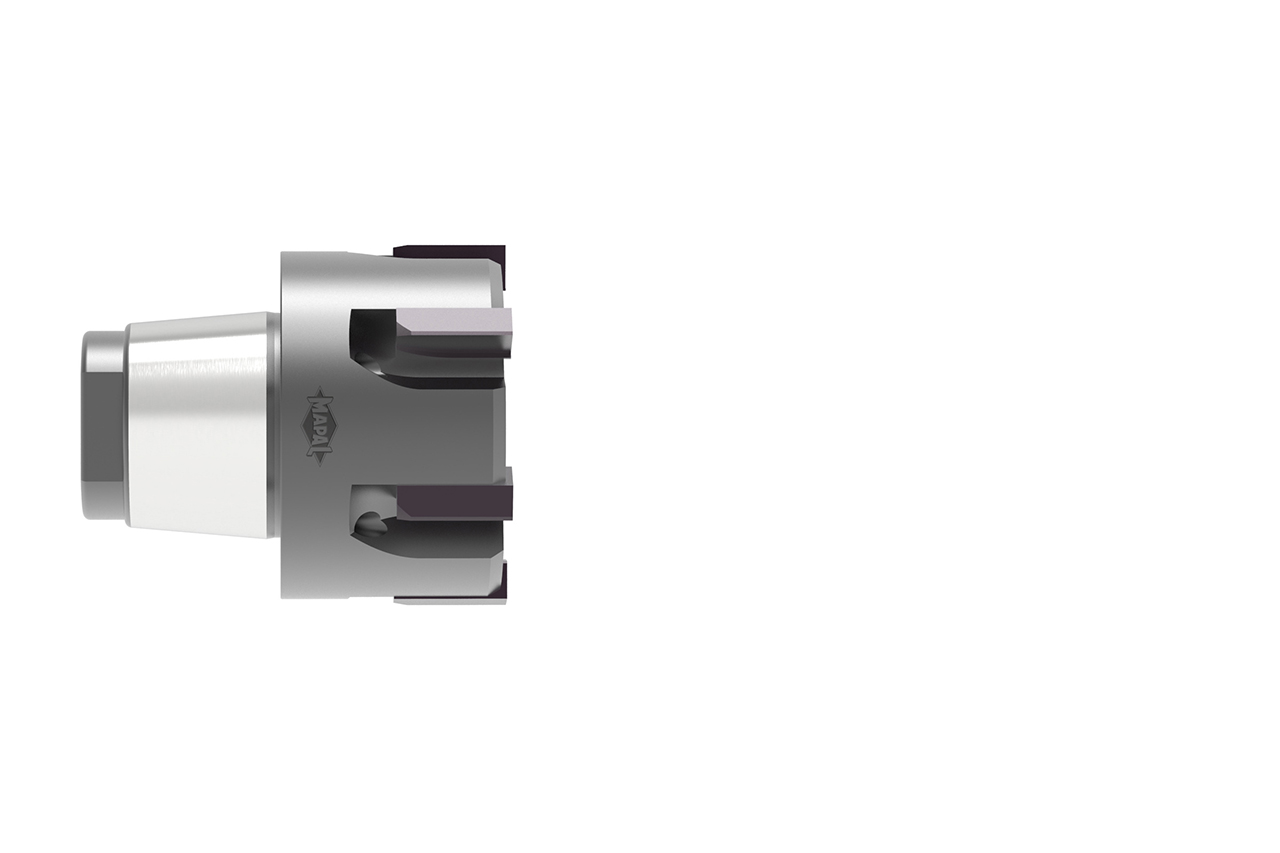

  • Product image HPR 1++

Diameter d1 (mm)

50.0

Your unit price

*Login required

Article

30710245

Quantity

Added to Your Shopping Cart

Product description

The HPR exchangeable head reamer by MAPAL offers precise concentricity and exchange accuracy of 3 μm, along with easy handling during tool head assembly and disassembly. The internal cooling system allows coolant to directly exit at the cutting edges, ensuring efficient cooling. Consequently, the HPR reamers are suitable for minimum quantity lubrication and provide high precision and tool life. The standard range includes various series for through-holes and blind holes.

Material suitability

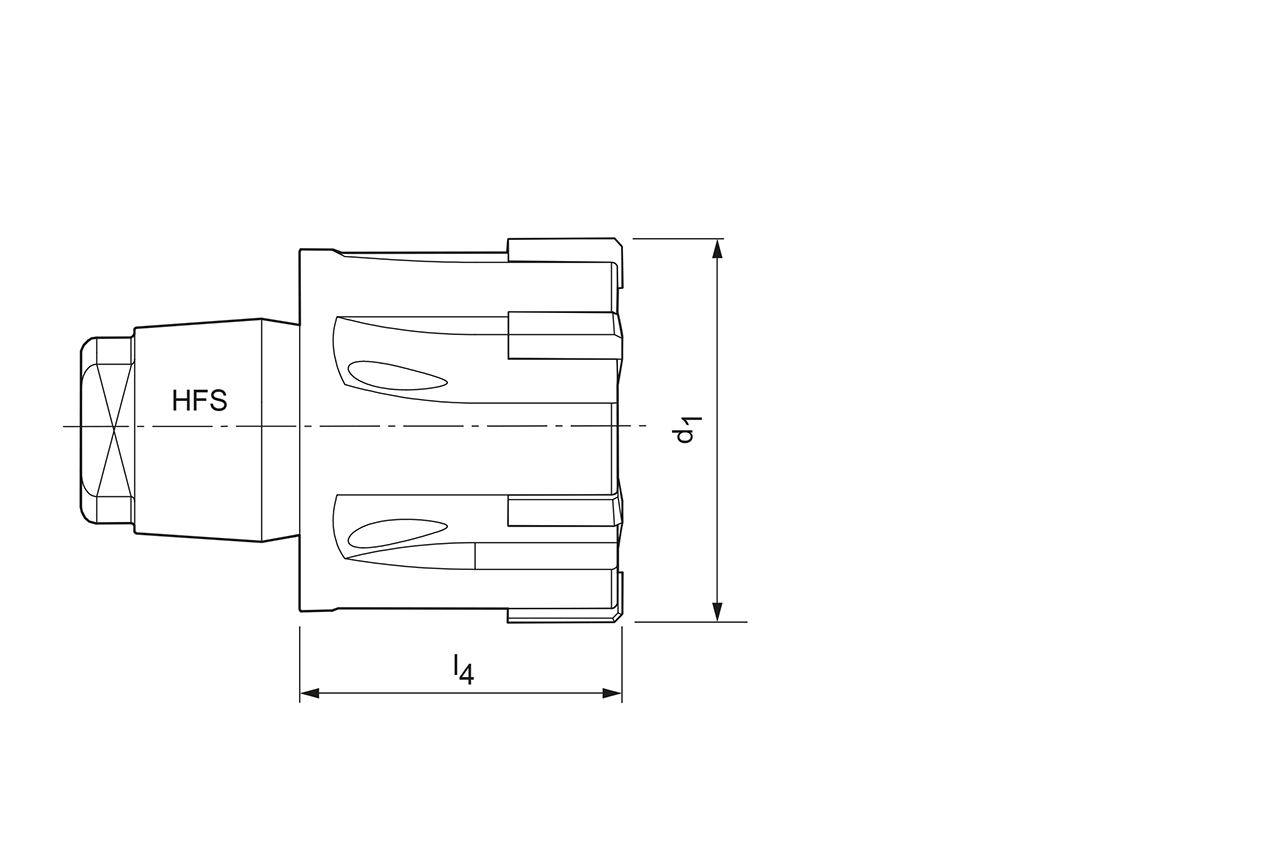

Technical specifications

Trennstelle
HFS
Trennstellengröße
24
Bohrungsart
Durchgangsbohrung
d1
50   mm
l1
34   mm
l2
8   mm
l4
19   mm
l5
19   mm
Toleranz
H7
Kühlmittelaustritt
innere Kühlmittelzufuhr
Anzahl Schneiden (z)
8
Materialgruppe
O
Spezifikation
HPR100Ø50.0H7MC1G-HP421

Downloads

3D Hüllkontur in stp
30710245_607749012-000-00-E43.STP
Technische Zeichnung in pdf
30710245_607874072-000-00-ED1.PDF
Technische Zeichnung in dxf
30710245_607874072-000-00-ED1.DXF
Technische Zeichnung in tif
30710245_607874072-000-00-ED1.TIF
DIN 4000 XML in xml
30710245_DIN4000-126-5.XML
Cutting data recommendations
30710245_HPR_EN.pdf
