HPR | HPR100

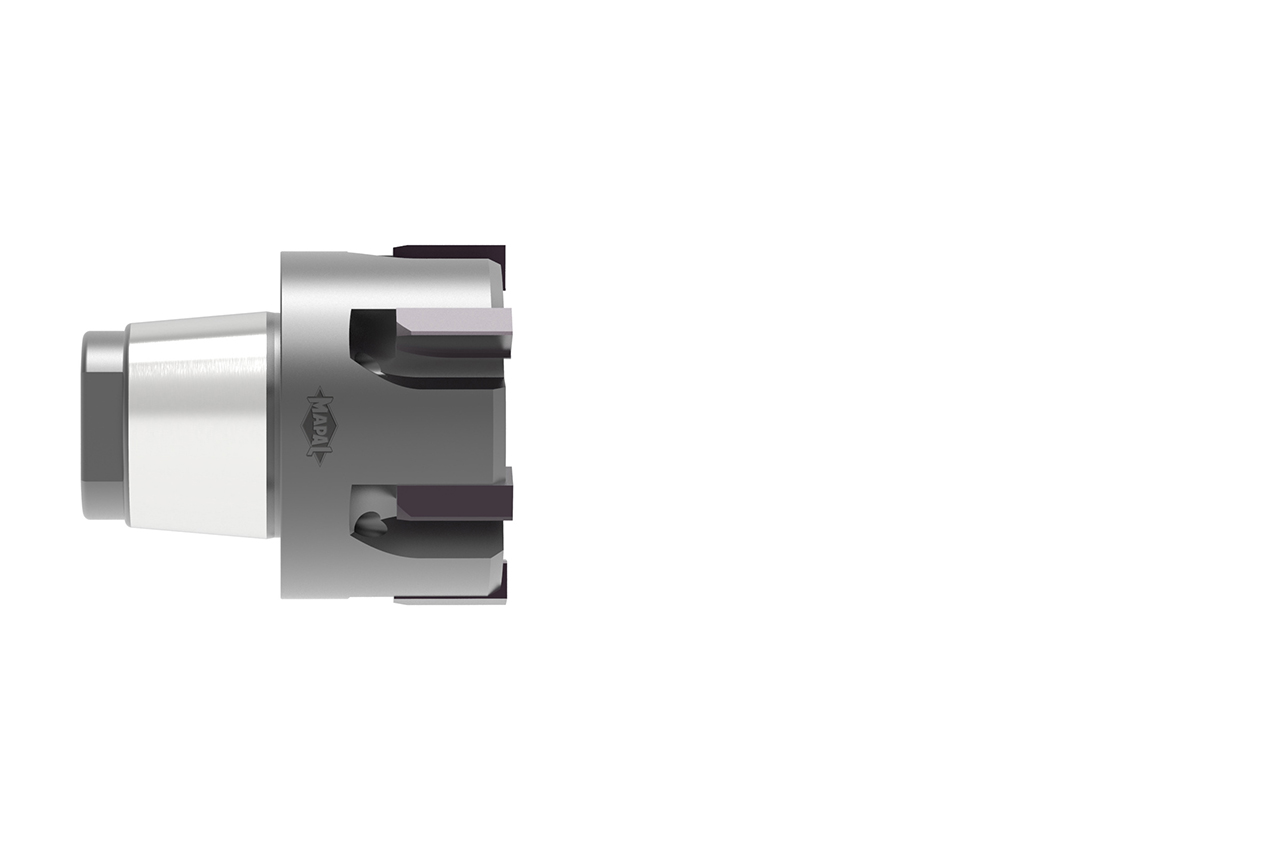

  • Product image HPR 1++

Durchmesser d1 (mm)

22.0

Ihr Stückpreis

*Login erforderlich

Bestellnummer

30368857

Menge

Ihrem Warenkorb hinzugefügt

Produktbeschreibung

The HPR exchangeable head reamer by MAPAL offers precise concentricity and exchange accuracy of 3 μm, along with easy handling during tool head assembly and disassembly. The internal cooling system allows coolant to directly exit at the cutting edges, ensuring efficient cooling. Consequently, the HPR reamers are suitable for minimum quantity lubrication and provide high precision and tool life. The standard range includes various series for through-holes and blind holes.

Materialeignung

Technische Daten

Trennstelle
HFS
Trennstellengröße
0140
Bohrungsart
Durchgangsbohrung
d1
22   mm
l1
28   mm
l2
8   mm
l4
15.5   mm
l5
15.5   mm
Toleranz
H7
Kühlmittelaustritt
innere Kühlmittelzufuhr
Anzahl Schneiden (z)
6
Materialgruppe
O
Spezifikation
HPR100Ø22.00H7MC1G-HP421

Downloads

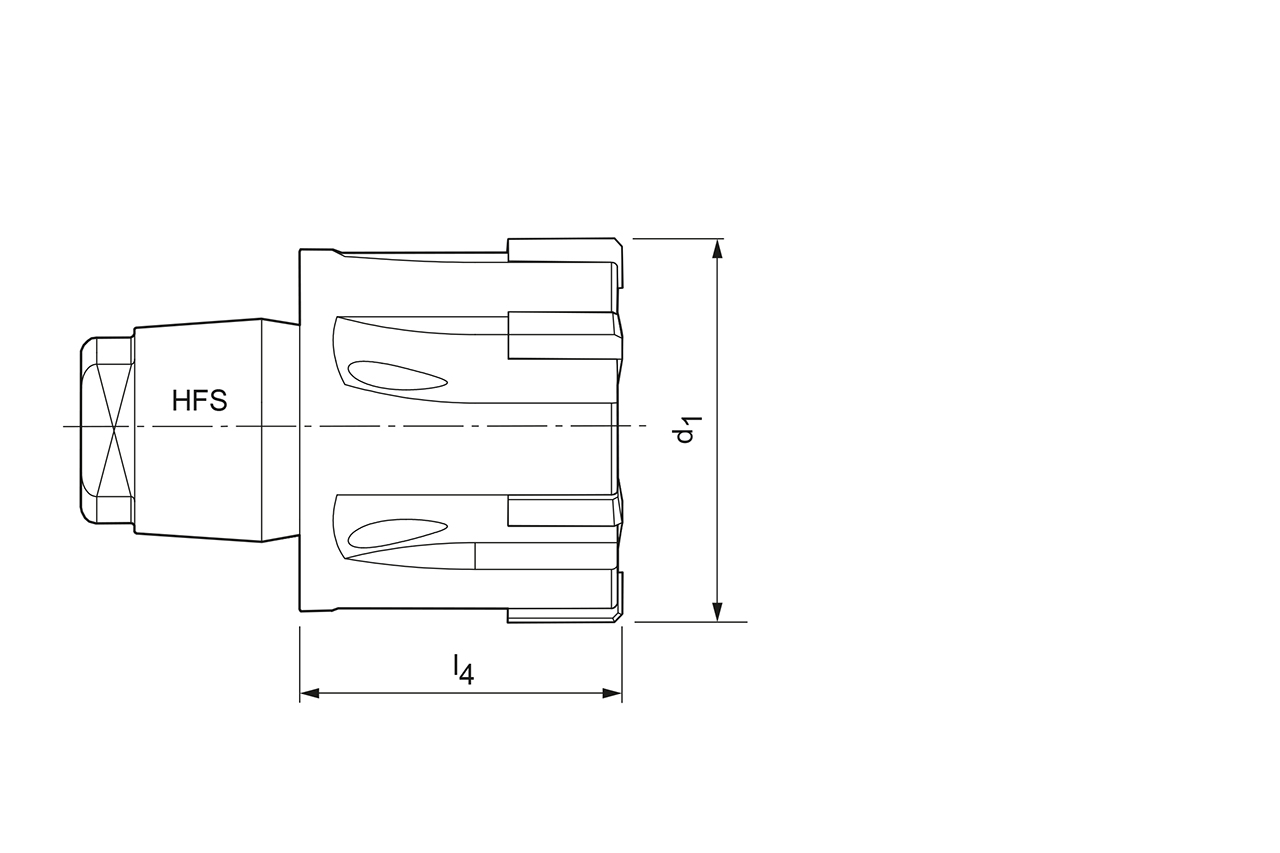

Technische Zeichnung in pdf
30368857_607684021-000-00-ED1.PDF
Technische Zeichnung in dxf
30368857_607684021-000-00-ED1.DXF
Technische Zeichnung in tif
30368857_607684021-000-00-ED1.TIF
3D Hüllkontur in stp
30368857_607679932-000-00-E43.STP
Cutting data recommendations
30368857_HPR_EN.pdf
