HPR | HPR110

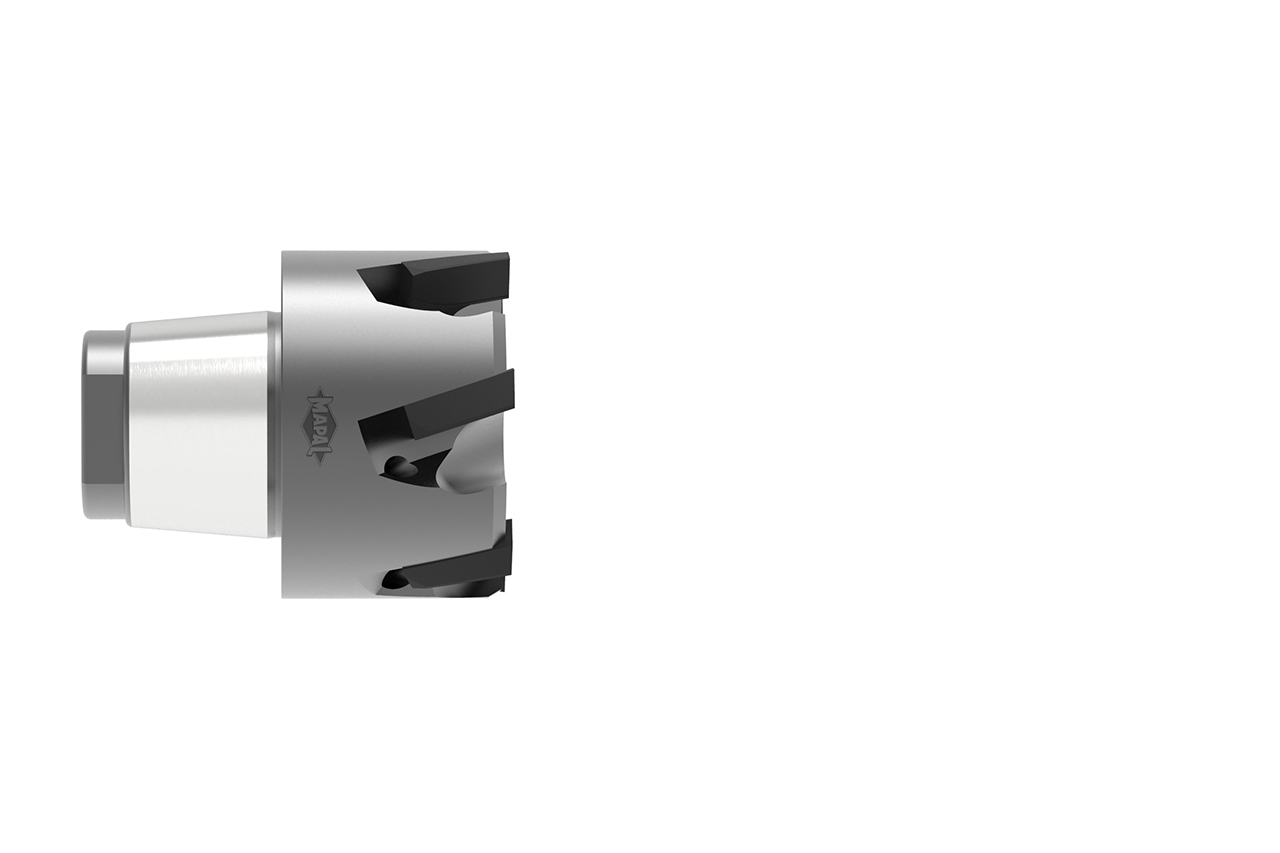

  • Product image HPR 1++

Durchmesser d1 (mm)

33.0

Ihr Stückpreis

*Login erforderlich

Bestellnummer

30162282

Menge

Ihrem Warenkorb hinzugefügt

Produktbeschreibung

The HPR exchangeable head reamer by MAPAL offers precise concentricity and exchange accuracy of 3 μm, along with easy handling during tool head assembly and disassembly. The internal cooling system allows coolant to directly exit at the cutting edges, ensuring efficient cooling. Consequently, the HPR reamers are suitable for minimum quantity lubrication and provide high precision and tool life. The standard range includes various series for through-holes and blind holes.

Materialeignung

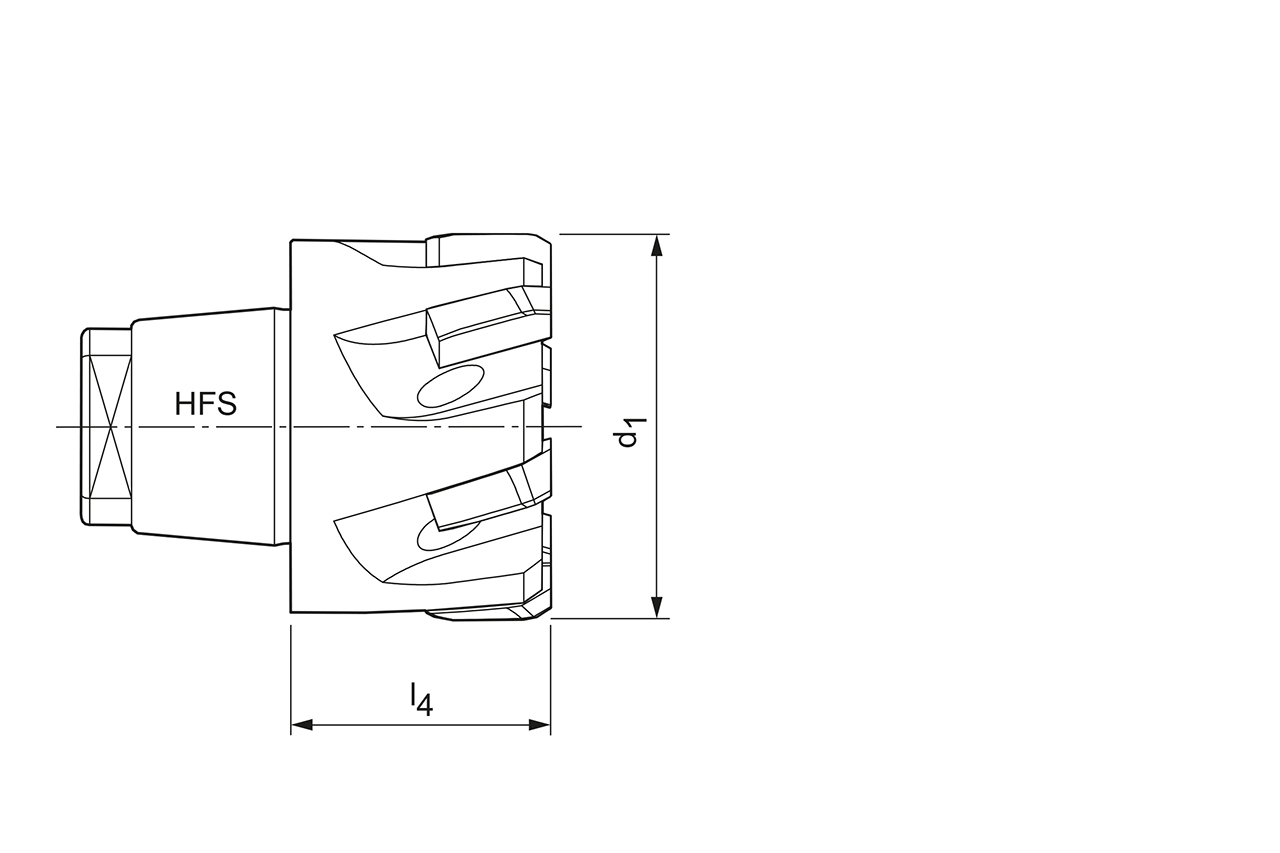

Technische Daten

Trennstelle
HFS
Trennstellengröße
20
Bohrungsart
Durchgangsbohrung
d1
33   mm
l1
32   mm
l2
8   mm
l4
17   mm
l5
17   mm
Toleranz
H7
Kühlmittelaustritt
innere Kühlmittelzufuhr
Anzahl Schneiden (z)
8
Materialgruppe
O
Spezifikation
HPR110Ø33.00H7ME1G-CU134

Downloads

3D Hüllkontur in stp
30162282_607748925-000-00-E43.STP
Technische Zeichnung in pdf
30162282_607877124-000-00-ED1.PDF
Technische Zeichnung in dxf
30162282_607877124-000-00-ED1.DXF
Technische Zeichnung in tif
30162282_607877124-000-00-ED1.TIF
Cutting data recommendations
30162282_HPR_EN.pdf
