HPR | HPR110

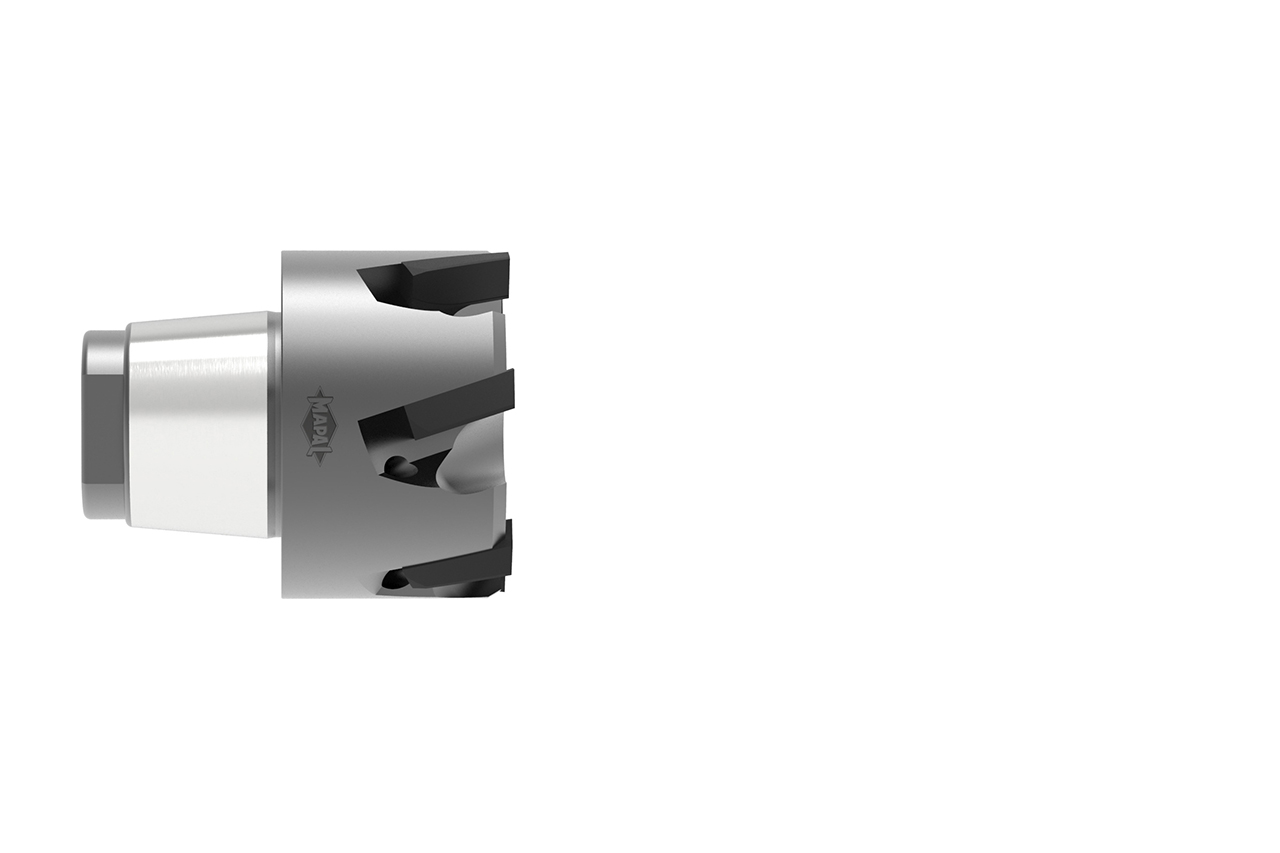

  • Product image HPR 1++

Diameter d1 (mm)

39.0

Your unit price

*Login required

Article

30088042

Quantity

Added to Your Shopping Cart

Product description

The HPR exchangeable head reamer by MAPAL offers precise concentricity and exchange accuracy of 3 μm, along with easy handling during tool head assembly and disassembly. The internal cooling system allows coolant to directly exit at the cutting edges, ensuring efficient cooling. Consequently, the HPR reamers are suitable for minimum quantity lubrication and provide high precision and tool life. The standard range includes various series for through-holes and blind holes.

Material suitability

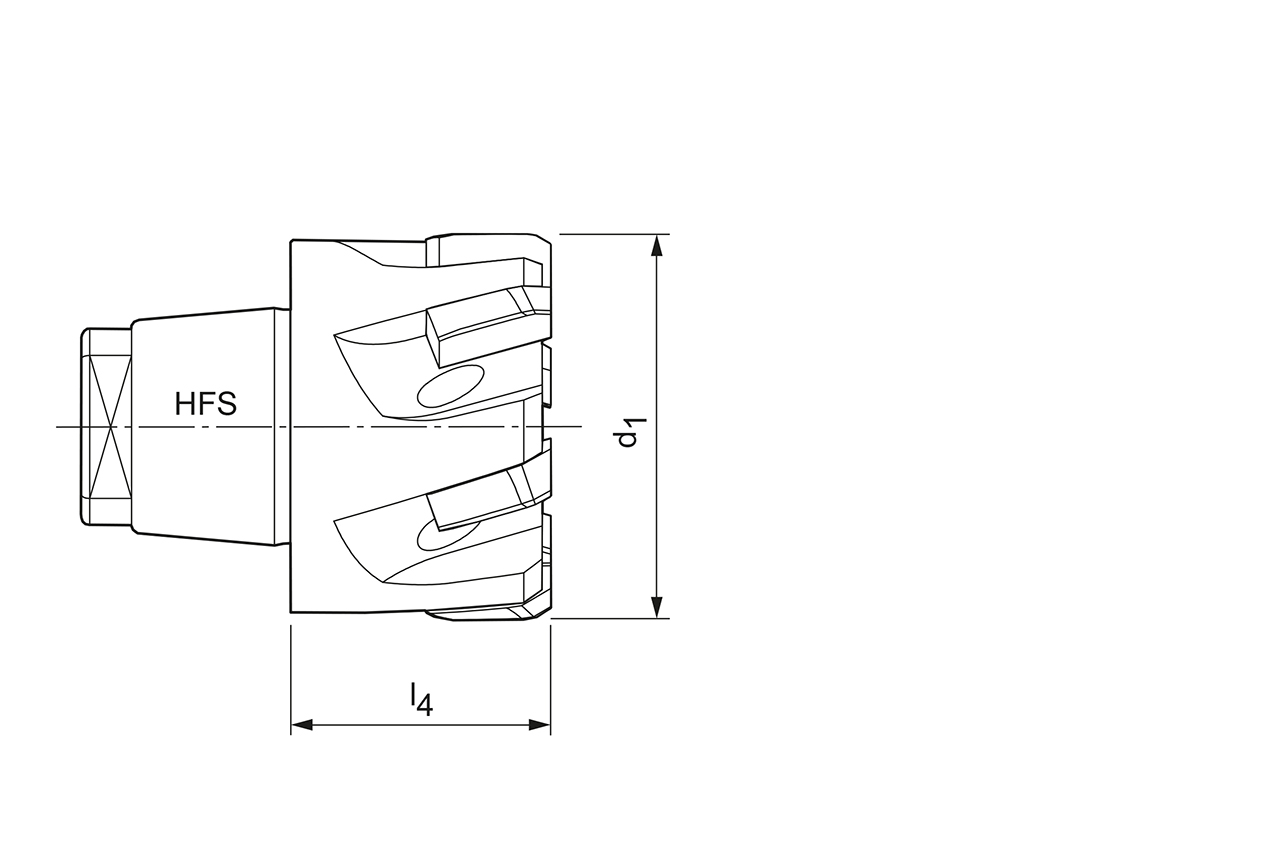

Technical specifications

Connection type
HFS
HFS connection size
20
Type of bore
Through bore
d1
39   mm
l1
32   mm
l2
8   mm
l4
17   mm
l5
17   mm
Tolerance
H7
Number of cutting edges (z)
8
Material group
O
