HPR | HPR110

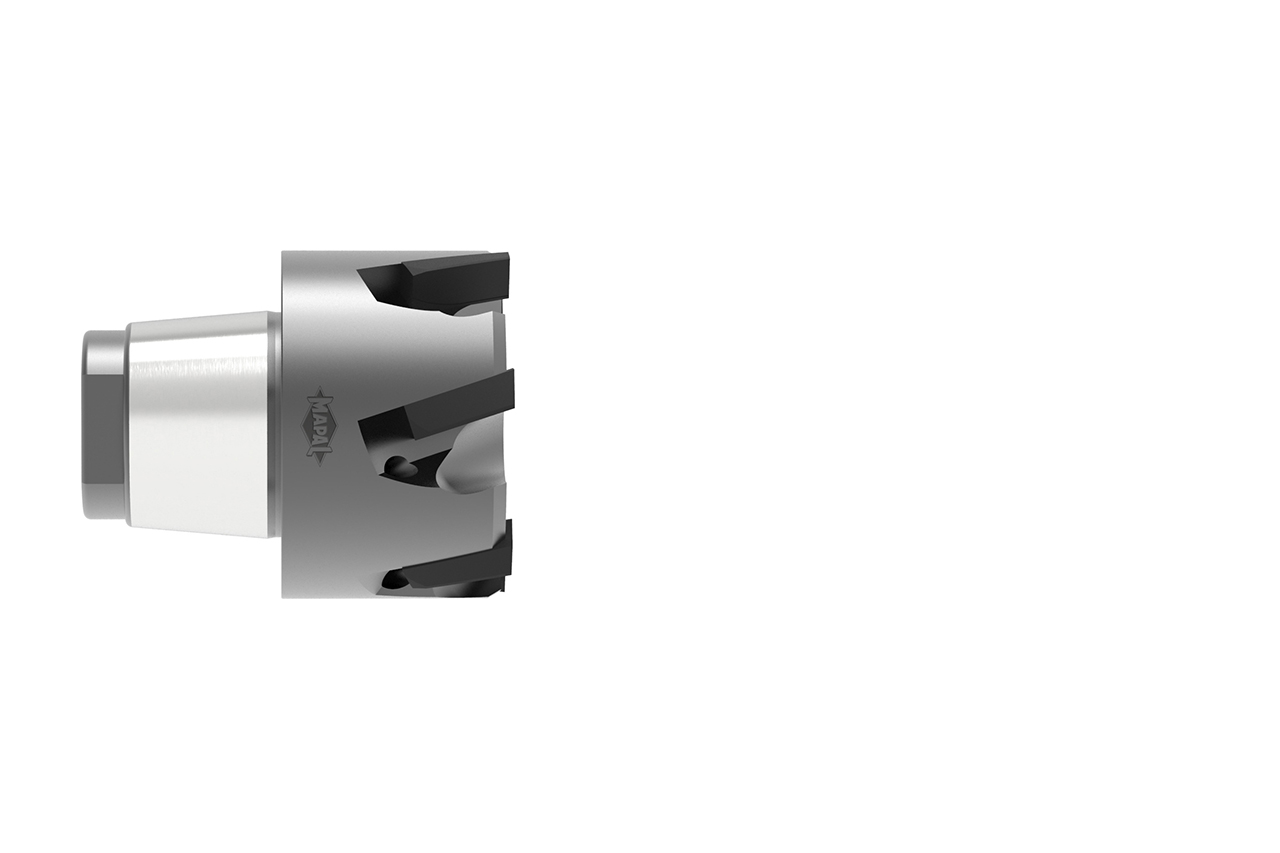

  • Product image HPR 1++

Durchmesser d1 (mm)

27.0

Ihr Stückpreis

*Login erforderlich

Bestellnummer

30087257

Menge

Ihrem Warenkorb hinzugefügt

Produktbeschreibung

The HPR exchangeable head reamer by MAPAL offers precise concentricity and exchange accuracy of 3 μm, along with easy handling during tool head assembly and disassembly. The internal cooling system allows coolant to directly exit at the cutting edges, ensuring efficient cooling. Consequently, the HPR reamers are suitable for minimum quantity lubrication and provide high precision and tool life. The standard range includes various series for through-holes and blind holes.

Materialeignung

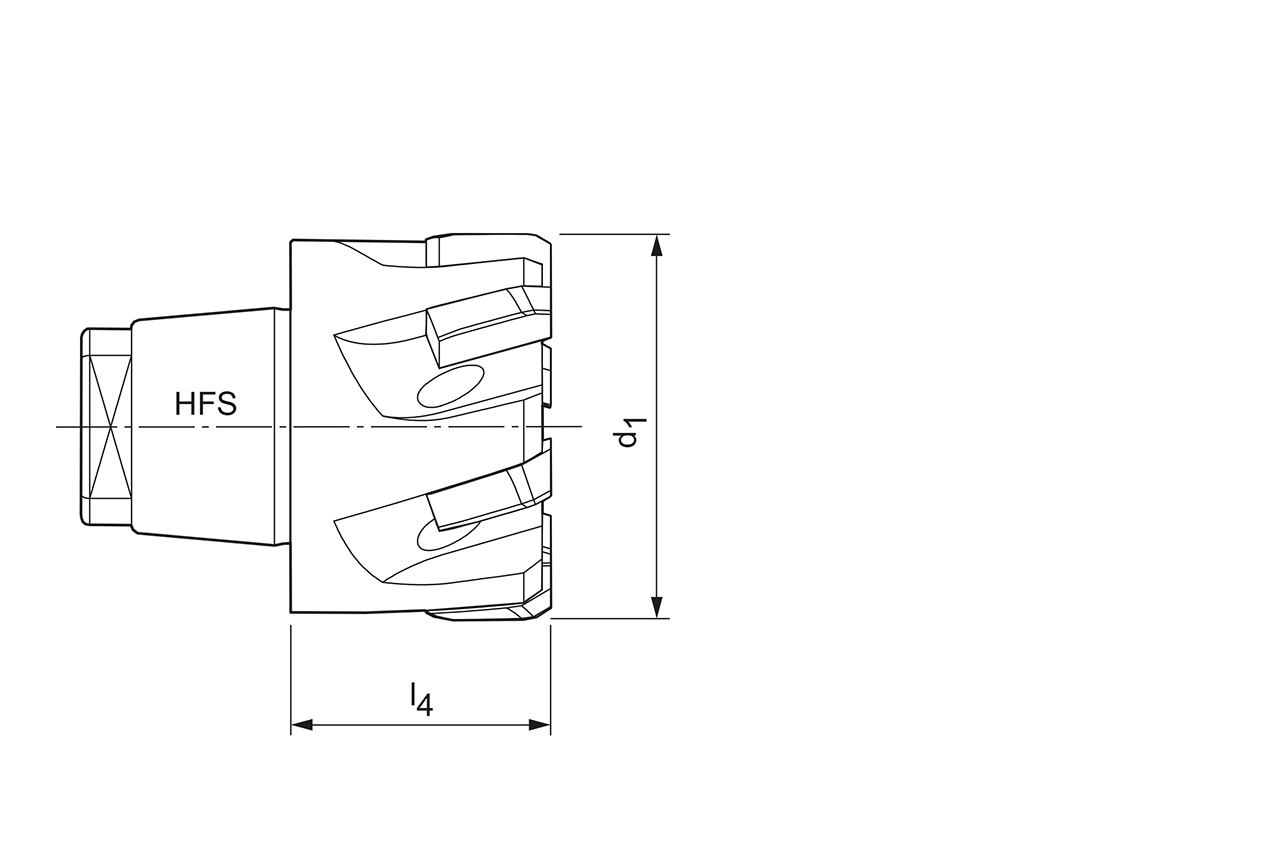

Technische Daten

Trennstelle
HFS
Trennstellengröße
16
Bohrungsart
Durchgangsbohrung
d1
27   mm
l1
30   mm
l2
8   mm
l4
16   mm
l5
16   mm
Toleranz
H7
Anzahl Schneiden (z)
6
Materialgruppe
O

Downloads

3D Hüllkontur in stp
30087257_607748920-000-00-E43.STP
Technische Zeichnung in pdf
30087257_607876998-000-00-ED1.PDF
Technische Zeichnung in dxf
30087257_607876998-000-00-ED1.DXF
Technische Zeichnung in tif
30087257_607876998-000-00-ED1.TIF
