HPR | HPR110
Durchmesser d1 (mm)
35.0
Ihr Stückpreis
*Login erforderlichUnsere Produktempfehlung:
Produktbeschreibung

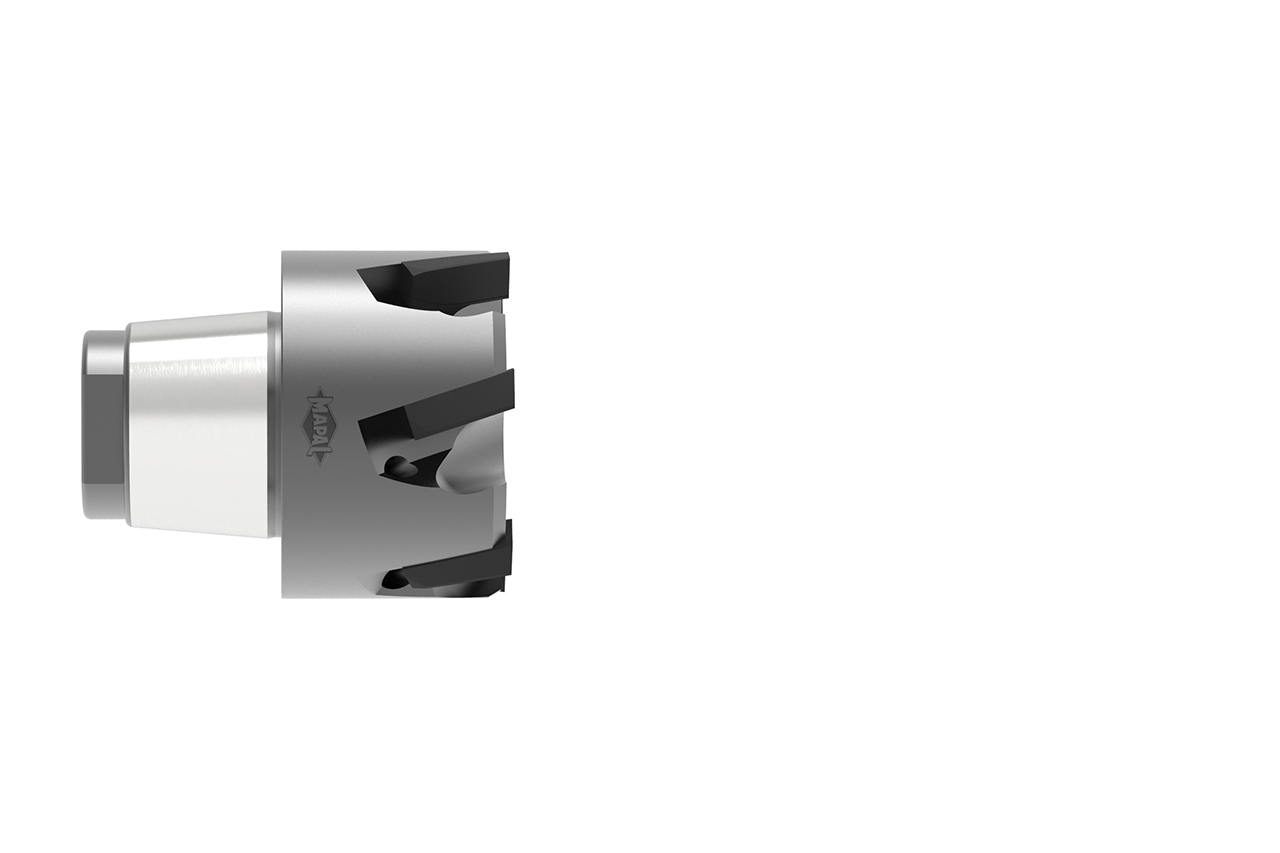

The HPR exchangeable head reamer by MAPAL offers precise concentricity and exchange accuracy of 3 μm, along with easy handling during tool head assembly and disassembly. The internal cooling system allows coolant to directly exit at the cutting edges, ensuring efficient cooling. Consequently, the HPR reamers are suitable for minimum quantity lubrication and provide high precision and tool life. The standard range includes various series for through-holes and blind holes.
Technische Daten
- Trennstelle
- HFS
- Trennstellengröße
- 20
- Bohrungsart
- Durchgangsbohrung

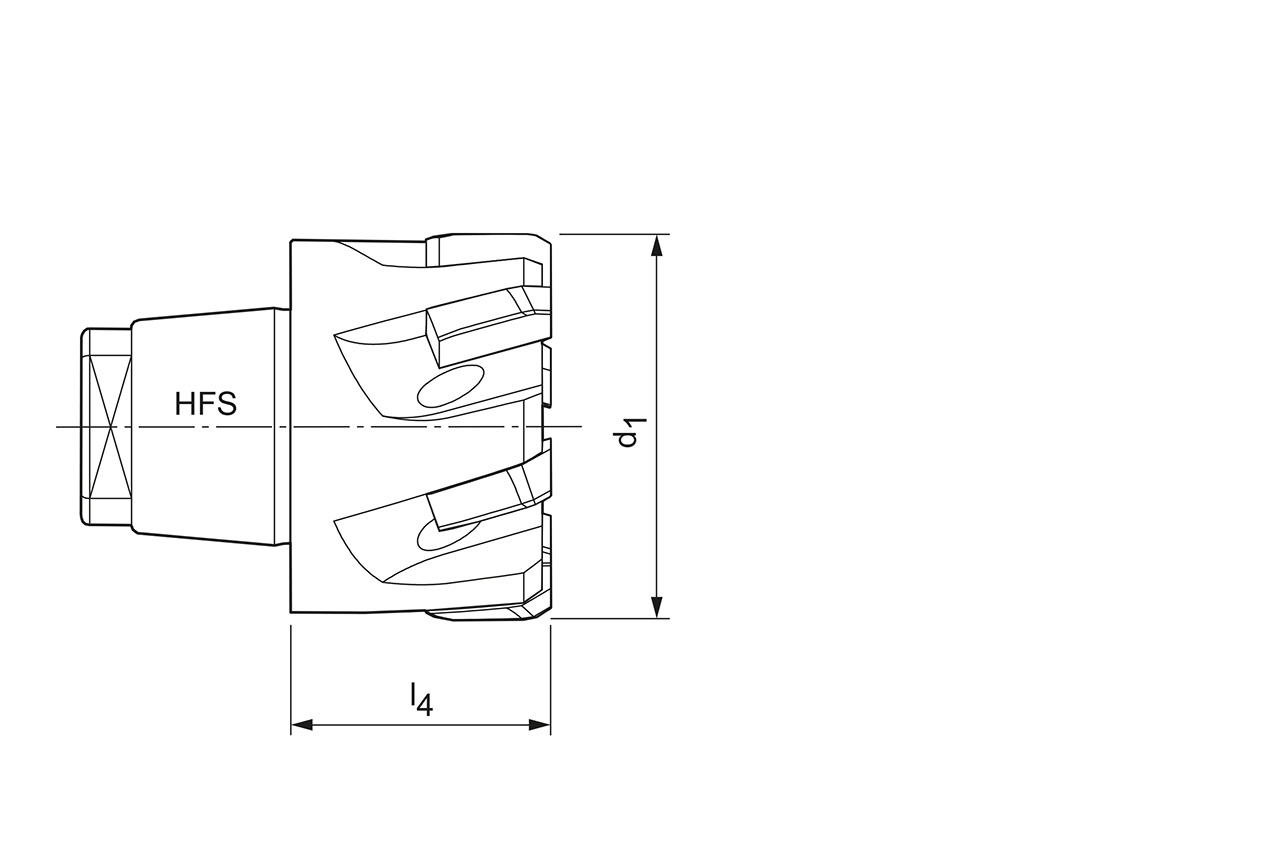

- d1
- 35 mm
- l1
- 32 mm
- l2
- 8 mm
- l4
- 17 mm
- l5
- 17 mm
- Toleranz
- H7
- Kühlmittelzufuhr
- intern
- Anzahl Schneiden (z)
- 8
- Materialgruppe
- O
- Spezifikation
- HPR110Ø35.00H7ME1G-CU134
Downloads
- Technische Zeichnung in pdf
- 30084885_24509-000-01-ED1.PDF
- Technische Zeichnung in dxf
- 30084885_24509-000-01-ED1.DXF
- Technische Zeichnung in tif
- 30084885_24509-000-01-ED1.TIF
- 3D Hüllkontur in stp
- 30084885_607504628-000-01-E43.STP
- Cutting data recommendations
- 30084885_HPR_EN.pdf
