HPR | HPR131

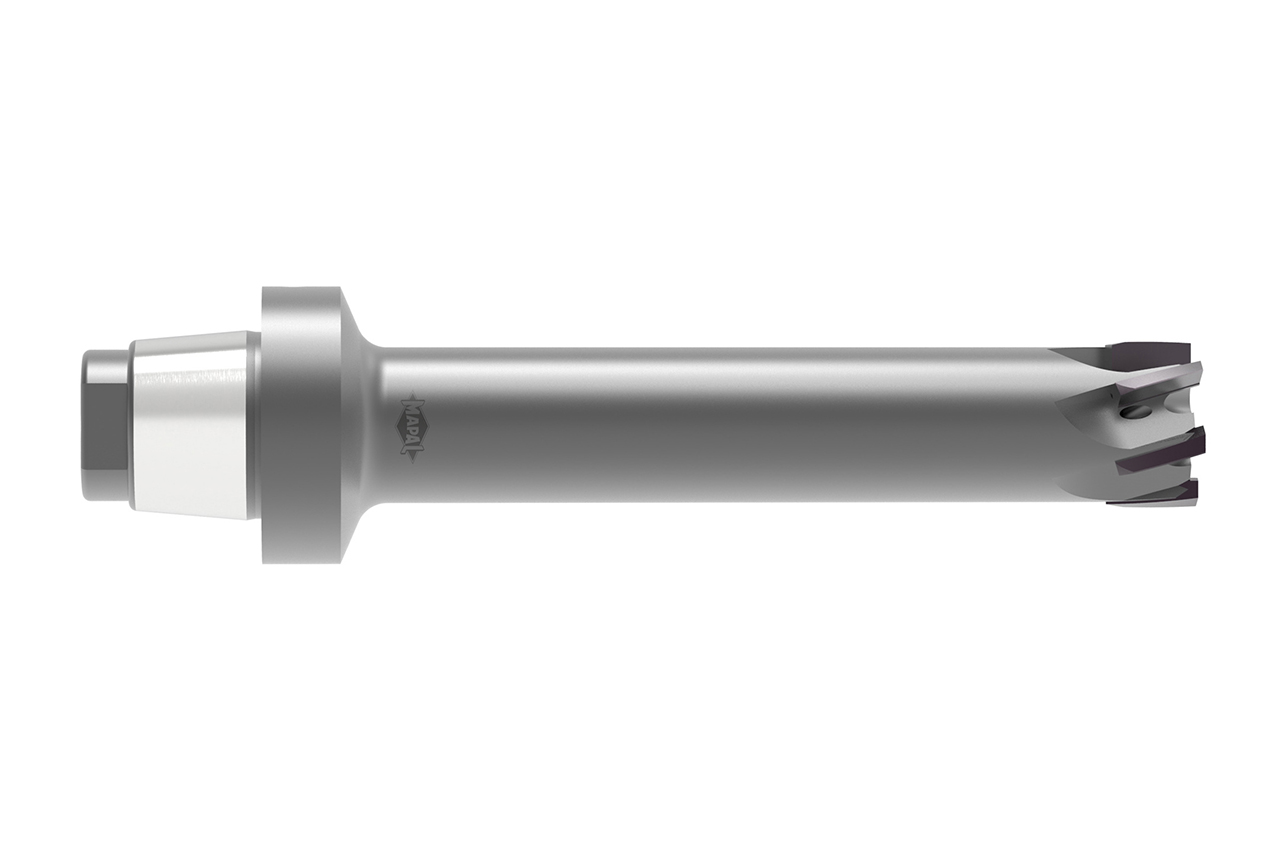

  • Product image HPR 1++

Diameter d1 (mm)

16.0

Your unit price

*Login required

Article

30047996

Quantity

Added to Your Shopping Cart

Product description

The HPR exchangeable head reamer by MAPAL offers precise concentricity and exchange accuracy of 3 μm, along with easy handling during tool head assembly and disassembly. The internal cooling system allows coolant to directly exit at the cutting edges, ensuring efficient cooling. Consequently, the HPR reamers are suitable for minimum quantity lubrication and provide high precision and tool life. The standard range includes various series for through-holes and blind holes.

Material suitability

Technical specifications

Trennstelle
HFS
Trennstellengröße
12
Bohrungsart
Durchgangsbohrung

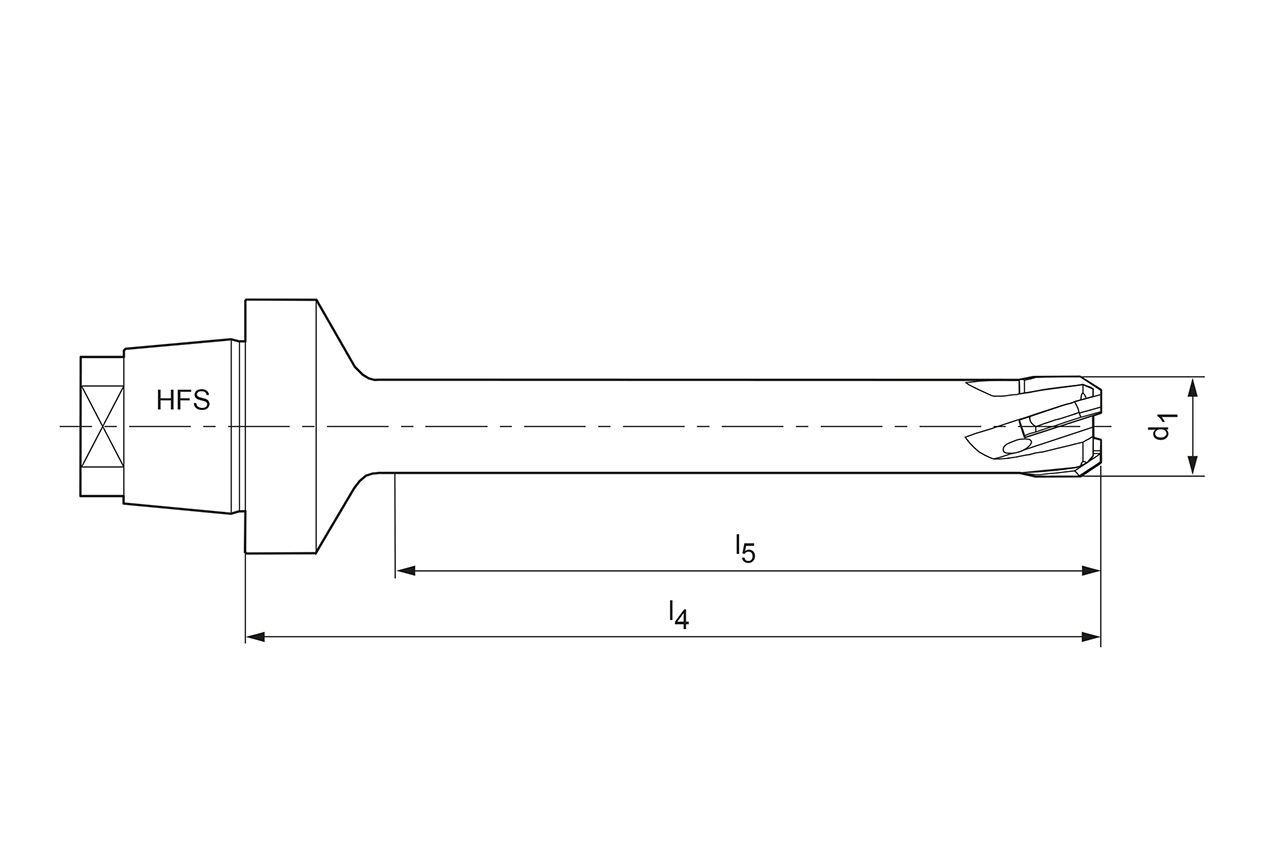

d1
16   mm
l1
71.5   mm
l2
6   mm
l4
60   mm
l5
45   mm
Toleranz
H7
Kühlmittelaustritt
innere Kühlmittelzufuhr
Anzahl Schneiden (z)
6
Materialgruppe
O
Spezifikation
HPR131Ø16.00H7ME1G-CU134

Downloads

3D Hüllkontur in stp
30047996_607748909-000-00-E43.STP
Technische Zeichnung in pdf
30047996_607876725-000-00-ED1.PDF
Technische Zeichnung in dxf
30047996_607876725-000-00-ED1.DXF
Technische Zeichnung in tif
30047996_607876725-000-00-ED1.TIF
Cutting data recommendations
30047996_HPR_EN.pdf
