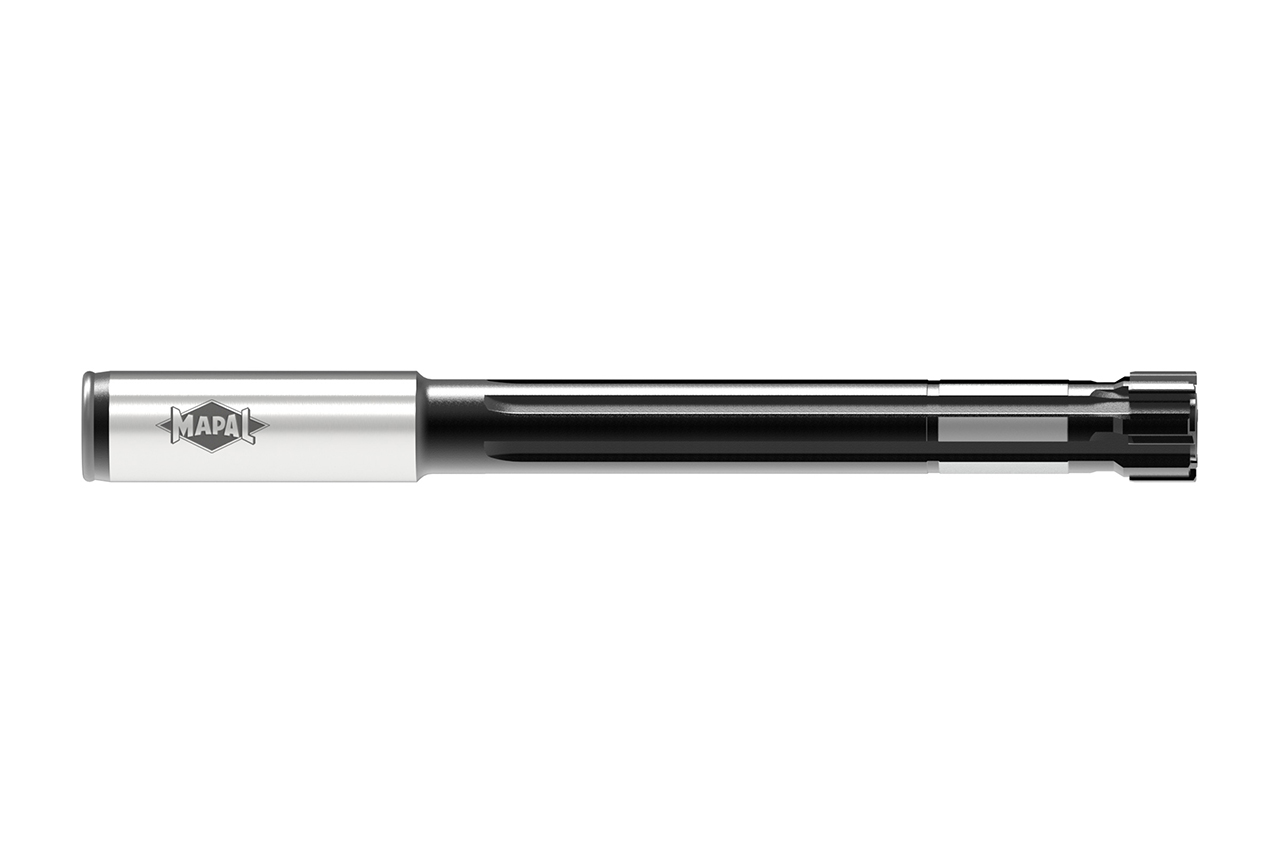

FixReam 7++
Durchmesser d1 (mm)
32.0
Ihr Stückpreis
*Login erforderlichProduktbeschreibung
The FixReam 700 was developed to increase economic efficiency through effective reconditioning. Thanks to an expansion screw, the multi-bladed reamer can be expanded in diameter before regrinding. As a result, all
functional surfaces can be reground, both on the lead as well as on the tool diameter. This allows the reamer to be reused up to 9 times.
Technische Daten
- Trennstelle
- Zylinderschaft
- Trennstellengröße
- 250
- Bohrungsart
- Durchgangsbohrung

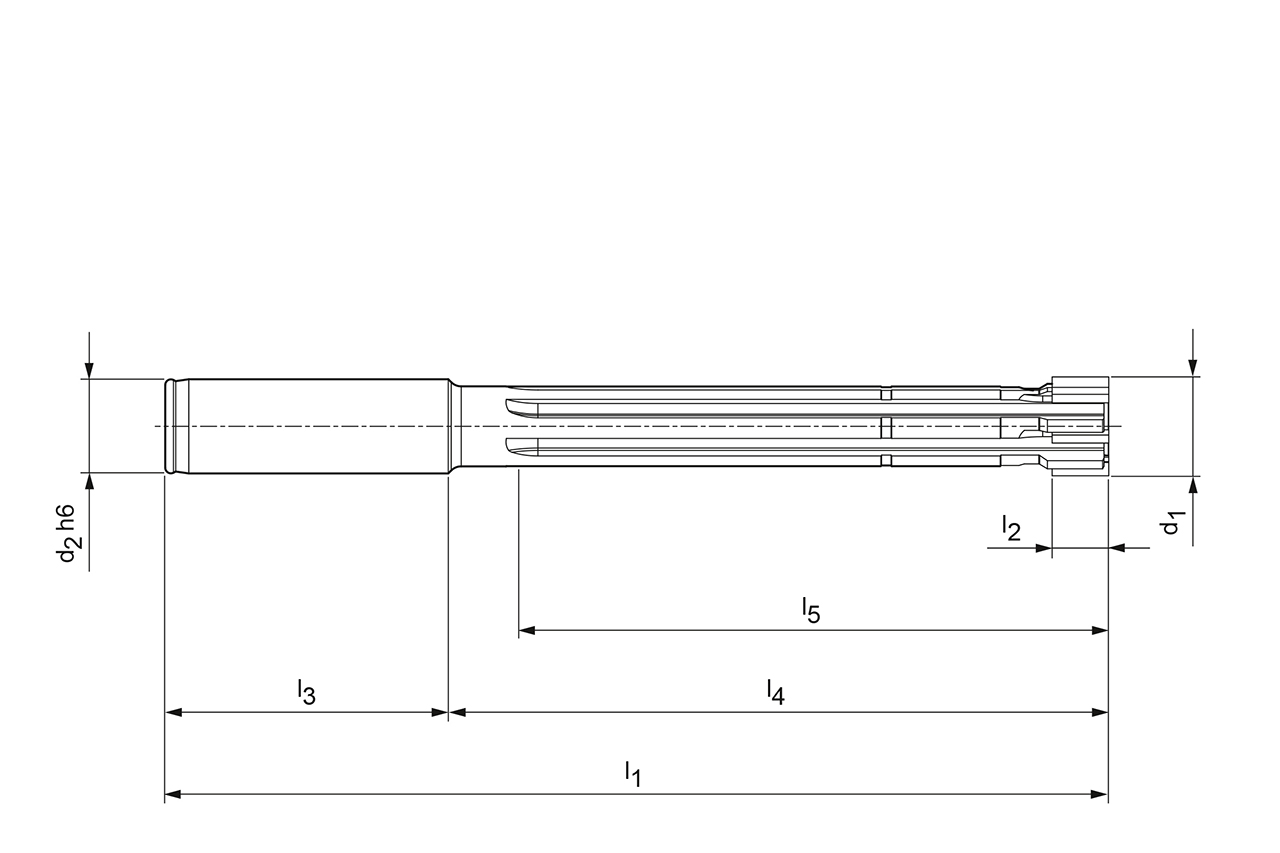

- d1
- 32 mm
- d2
- 25 mm
- l1
- 210 mm
- l2
- 12 mm
- l3
- 56 mm
- l4
- 150 mm
- l5
- 130 mm
- Toleranz
- H7
- Anzahl Schneiden (z)
- 6
- Materialgruppe
- TF
- Spezifikation
- FXR705Ø32.000H7LB1G-HP905
Downloads
- Technische Zeichnung in tif
- 31553842_608180561-000-00-ED1.TIF
- Technische Zeichnung in dxf
- 31553842_608180561-000-00-ED1.DXF
- Technische Zeichnung in pdf
- 31553842_608180561-000-00-ED1.PDF
- 3D Hüllkontur in stp
- 31553842_608180562-000-00-E43.STP
- Brochure
- 31553842_MAPAL_FixReam-700__EN.pdf
