FixReam | FXR705

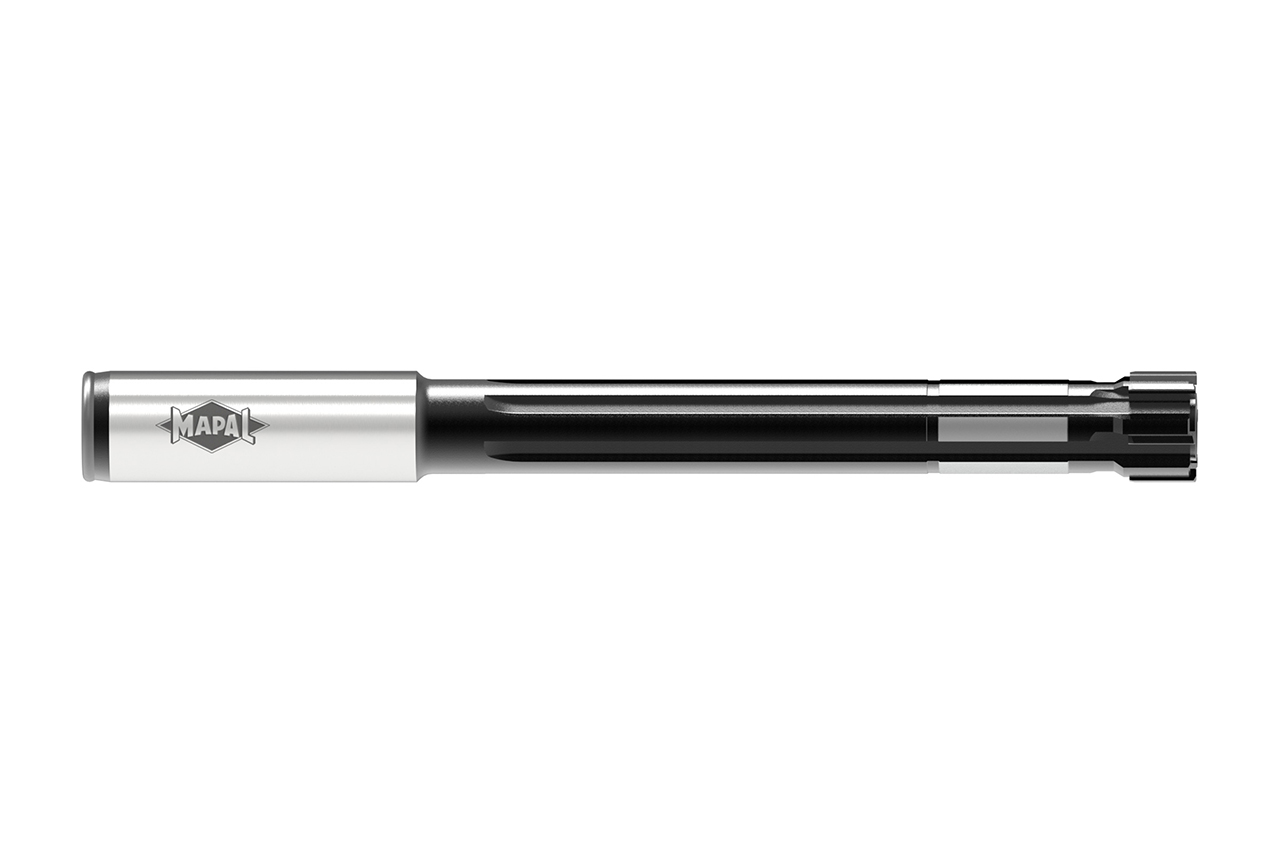

  • Product image FixReam 7++

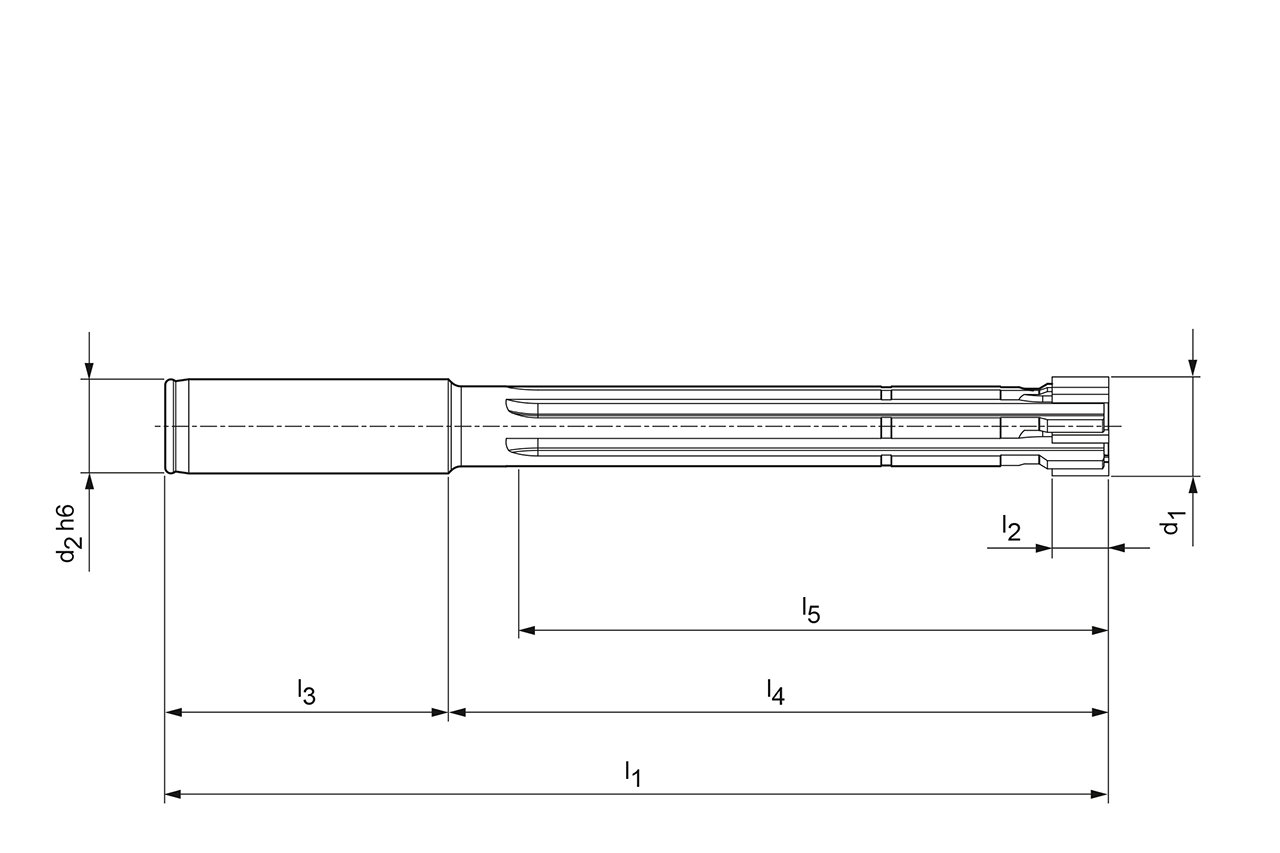

  • Technical drawing FixReam 7++

Diameter d1 (mm)

28.0

Your unit price

*Login required

Article

31553840

Quantity

Added to Your Shopping Cart

Product description

The FixReam 700 was developed to increase economic efficiency through effective reconditioning. Thanks to an expansion screw, the multi-bladed reamer can be expanded in diameter before regrinding. As a result, all
functional surfaces can be reground, both on the lead as well as on the tool diameter. This allows the reamer to be reused up to 9 times.

Material suitability

Technical specifications

Connection type
Cylindrical shank
Trennstellengröße
25
Bohrungsart
Grundbohrung
d1
28   mm
d2
25   mm
l1
210   mm
l2
12   mm
l3
56   mm
l4
150   mm
l5
130   mm
Toleranz
H7
Kühlmittelaustritt
externe Kühlmittelzufuhr
Anzahl Schneiden (z)
6
Materialgruppe
TF
Spezifikation
FXR705Ø28.000H7LB1G-HP905

Downloads

Technische Zeichnung in tif
31553840_608180556-000-00-ED1.TIF
Technische Zeichnung in dxf
31553840_608180556-000-00-ED1.DXF
3D Hüllkontur in stp
31553840_608180557-000-00-E43.STP
Brochure
31553840_MAPAL_FixReam-700__EN.pdf
