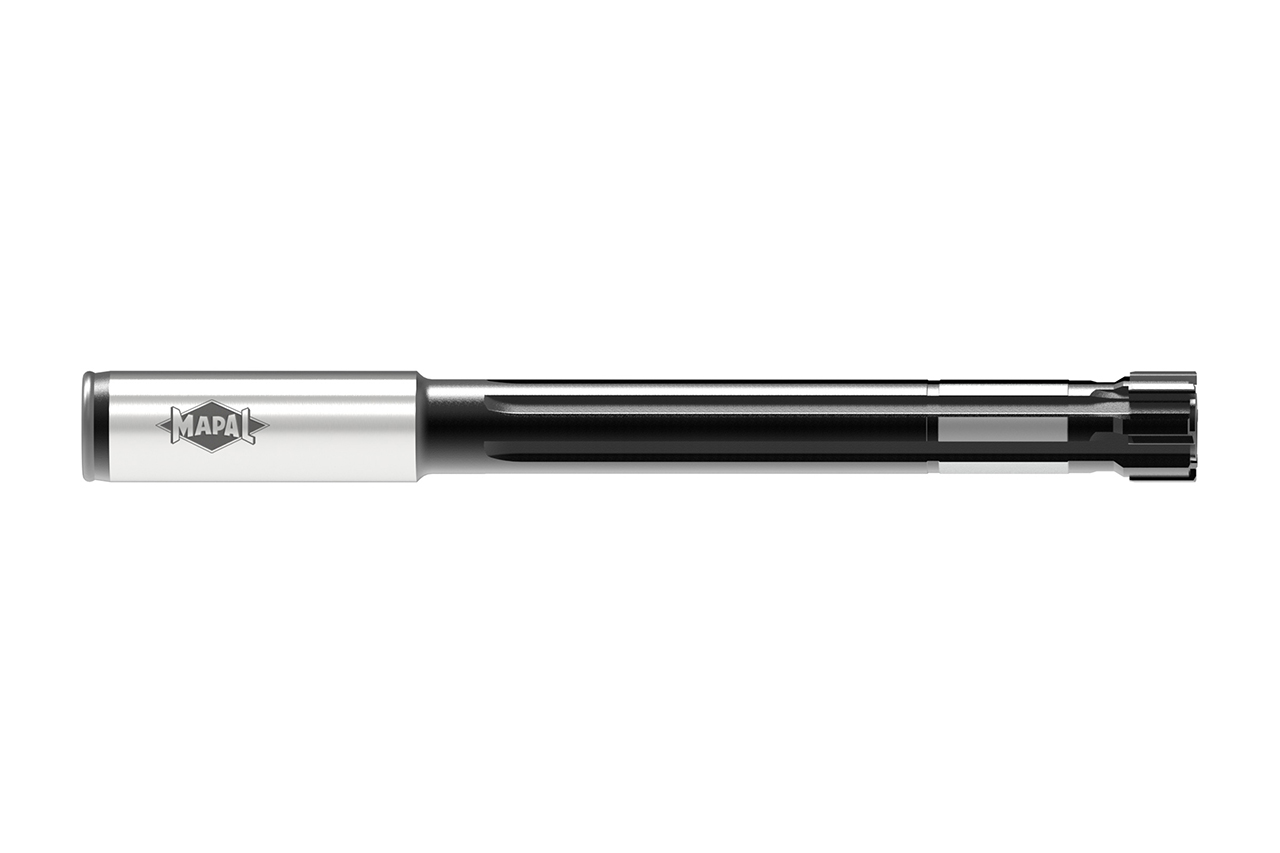

FixReam | FXR705
Diameter d1 (mm)
22.0
Your unit price
*Login requiredProduct description
The FixReam 700 was developed to increase economic efficiency through effective reconditioning. Thanks to an expansion screw, the multi-bladed reamer can be expanded in diameter before regrinding. As a result, all
functional surfaces can be reground, both on the lead as well as on the tool diameter. This allows the reamer to be reused up to 9 times.
Technical specifications
- Connection type
- Cylindrical shank
- Connection size
- 20
- Type of bore
- Blind bore
- d1
- 22 mm
- d3
- 20 mm
- l1
- 200 mm
- l2
- 12 mm
- l3
- 50 mm
- l4
- 140 mm
- l5
- 120 mm
- Tolerance
- H7
- Cooling
- external cooling
- Number of cutting edges (z)
- 6
- Material group
- TF
- Specification
- FXR705Ø22.000H7LB1G-HP905
Downloads

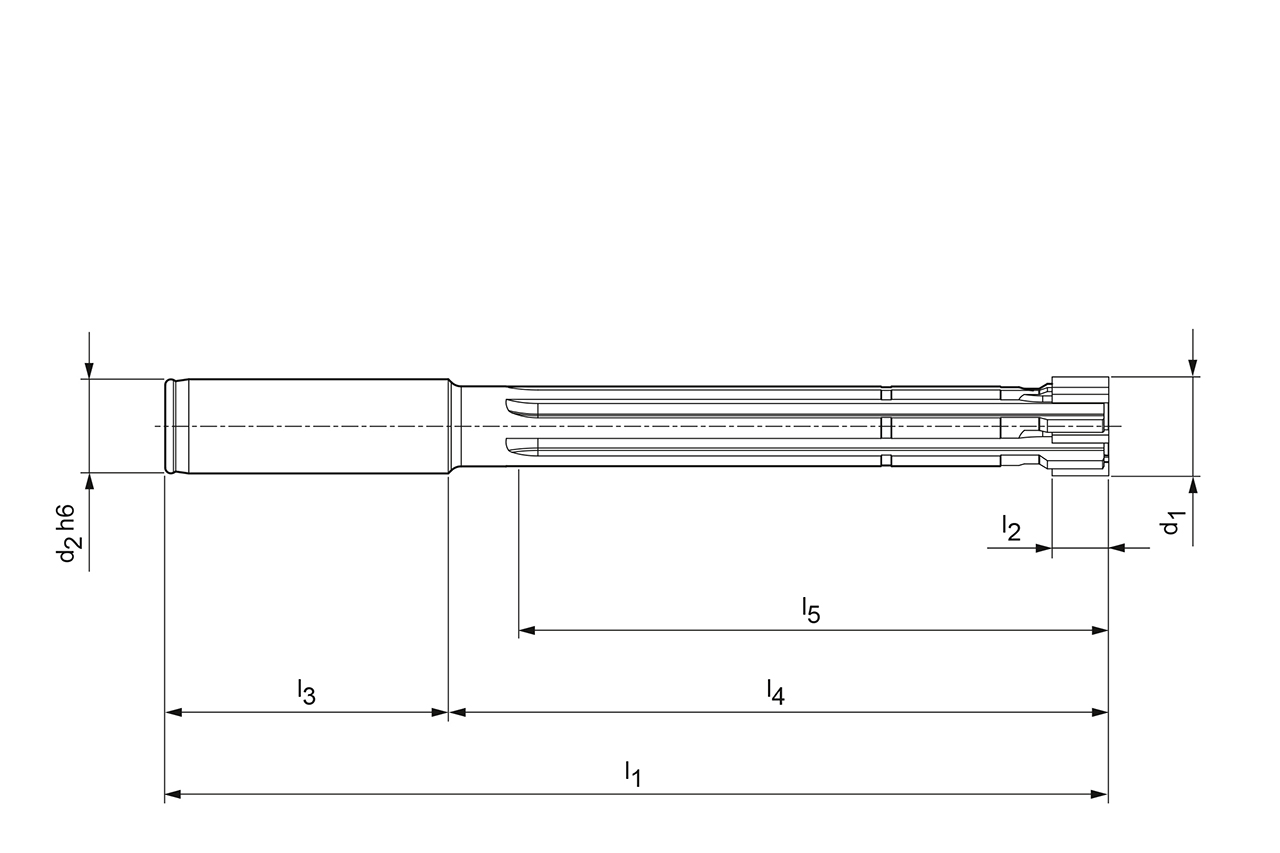

- Technical drawing in tif
- 31553837_608180550-000-00-ED1.TIF
- Technical drawing in dxf
- 31553837_608180550-000-00-ED1.DXF
- 3D envelope in stp
- 31553837_608180551-000-00-E43.STP
- Brochure
- 31553837_MAPAL_FixReam-700__EN.pdf
