FixReam | FXR705
Diameter d1 (mm)
14.0
Your unit price
*Login requiredProduct description

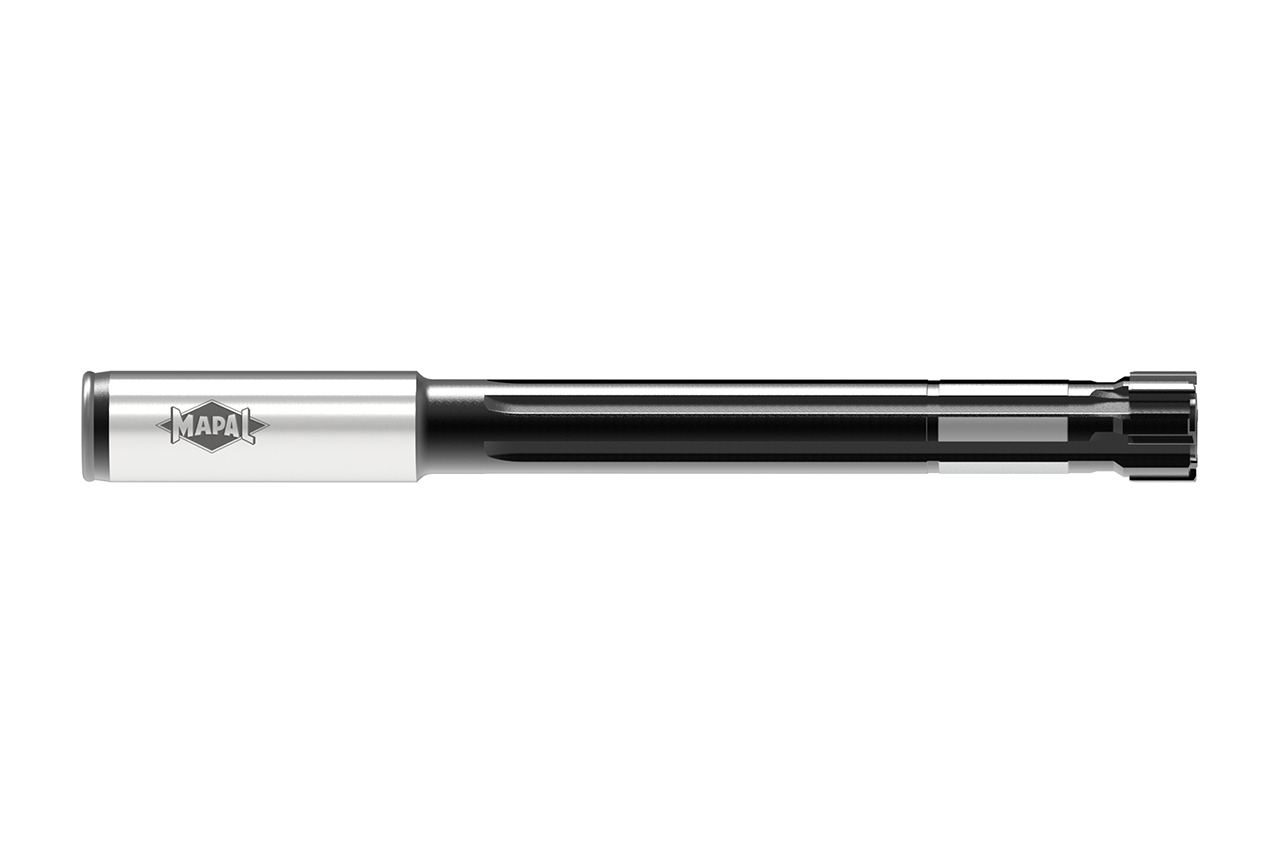

The FixReam 700 was developed to increase economic efficiency through effective reconditioning. Thanks to an expansion screw, the multi-bladed reamer can be expanded in diameter before regrinding. As a result, all
functional surfaces can be reground, both on the lead as well as on the tool diameter. This allows the reamer to be reused up to 9 times.
Material suitability
P
P1
P2
P3
P4
P5
P6
M
M1
M2
M3
K
K1
K2
K3
N
N1
N2
N3
N4
S
S1
S2
S3
S4
S5
H
H1
H2
H3

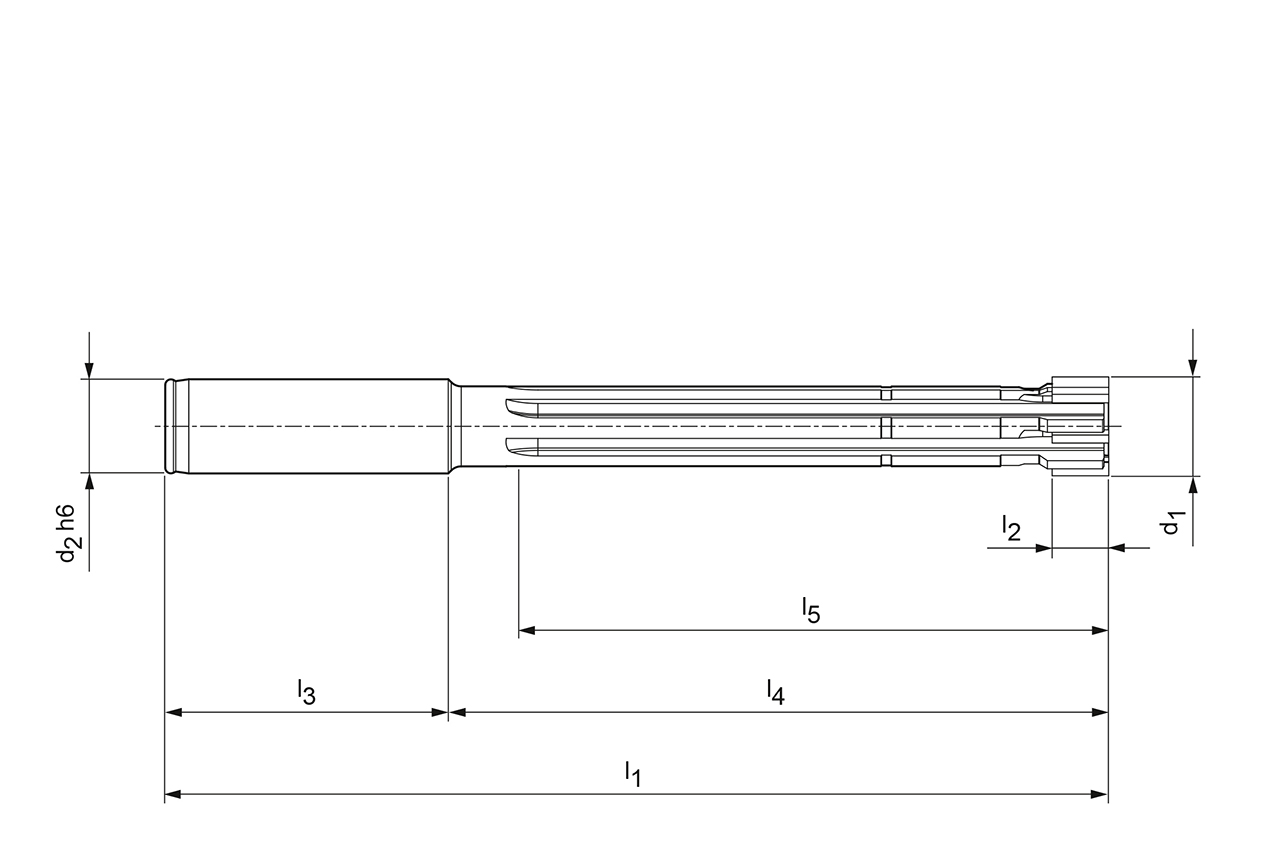

Technical specifications
- Connection type
- Cylindrical shank
- Connection size
- 12
- Type of bore
- Blind bore
- d1
- 14 mm
- d3
- 12 mm
- l1
- 160 mm
- l2
- 8 mm
- l3
- 45 mm
- l4
- 115 mm
- l5
- 100 mm
- Tolerance
- H7
- Number of cutting edges (z)
- 6
- Material group
- TF
- Specification
- FXR705Ø14.000H7LB1G-HP905
Downloads
- Technical drawing in tif
- 31553833_608180542-000-00-ED1.TIF
- Technical drawing in dxf
- 31553833_608180542-000-00-ED1.DXF
- Technical drawing in pdf
- 31553833_608180542-000-00-ED1.PDF
- 3D envelope in stp
- 31553833_608180543-000-00-E43.STP
- Brochure
- 31553833_MAPAL_FixReam-700__EN.pdf
