FixReam | FXR703

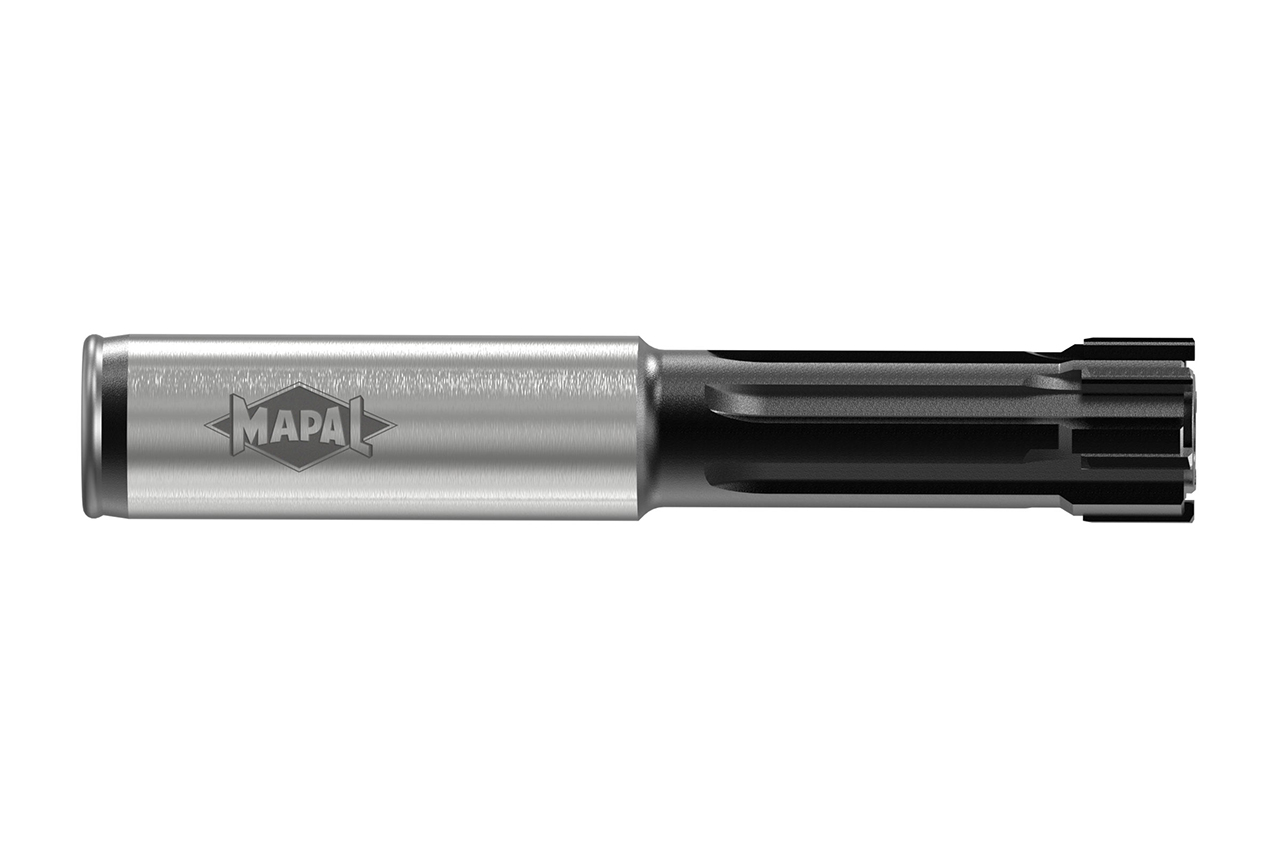

  • Product image FixReam 7++

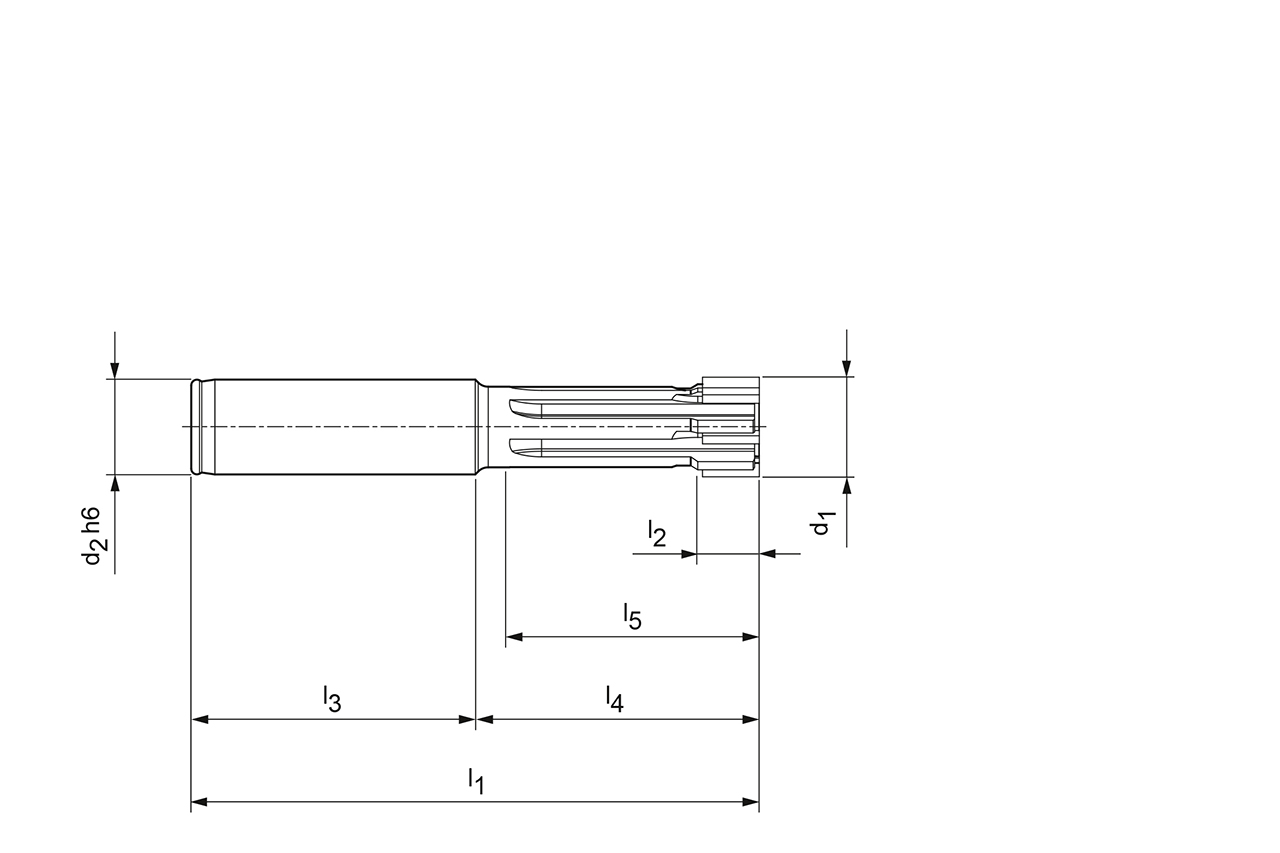

  • Technical drawing FixReam 7++

Diameter d1 (mm)

10.0

Your unit price

*Login required

Article

31553819

Quantity

Added to Your Shopping Cart

Product description

The FixReam 700 was developed to increase economic efficiency through effective reconditioning. Thanks to an expansion screw, the multi-bladed reamer can be expanded in diameter before regrinding. As a result, all
functional surfaces can be reground, both on the lead as well as on the tool diameter. This allows the reamer to be reused up to 9 times.

Material suitability

Technical specifications

Connection type
Cylindrical shank
Connection size
12
Type of bore
Blind bore
d1
10   mm
d2
12   mm
l1
95   mm
l2
8   mm
l3
45   mm
l4
50   mm
l5
38   mm
Toleranz
H7
Kühlmittelaustritt
externe Kühlmittelzufuhr
Anzahl Schneiden (z)
6
Materialgruppe
TF
Spezifikation
FXR703Ø10.000H7LB1G-HP905

Downloads

Technische Zeichnung in tif
31553819_608180501-000-00-ED1.TIF
Technische Zeichnung in dxf
31553819_608180501-000-00-ED1.DXF
3D Hüllkontur in stp
31553819_608180502-000-00-E43.STP
Brochure
31553819_MAPAL_FixReam-700__EN.pdf
