FixReam | FXR702

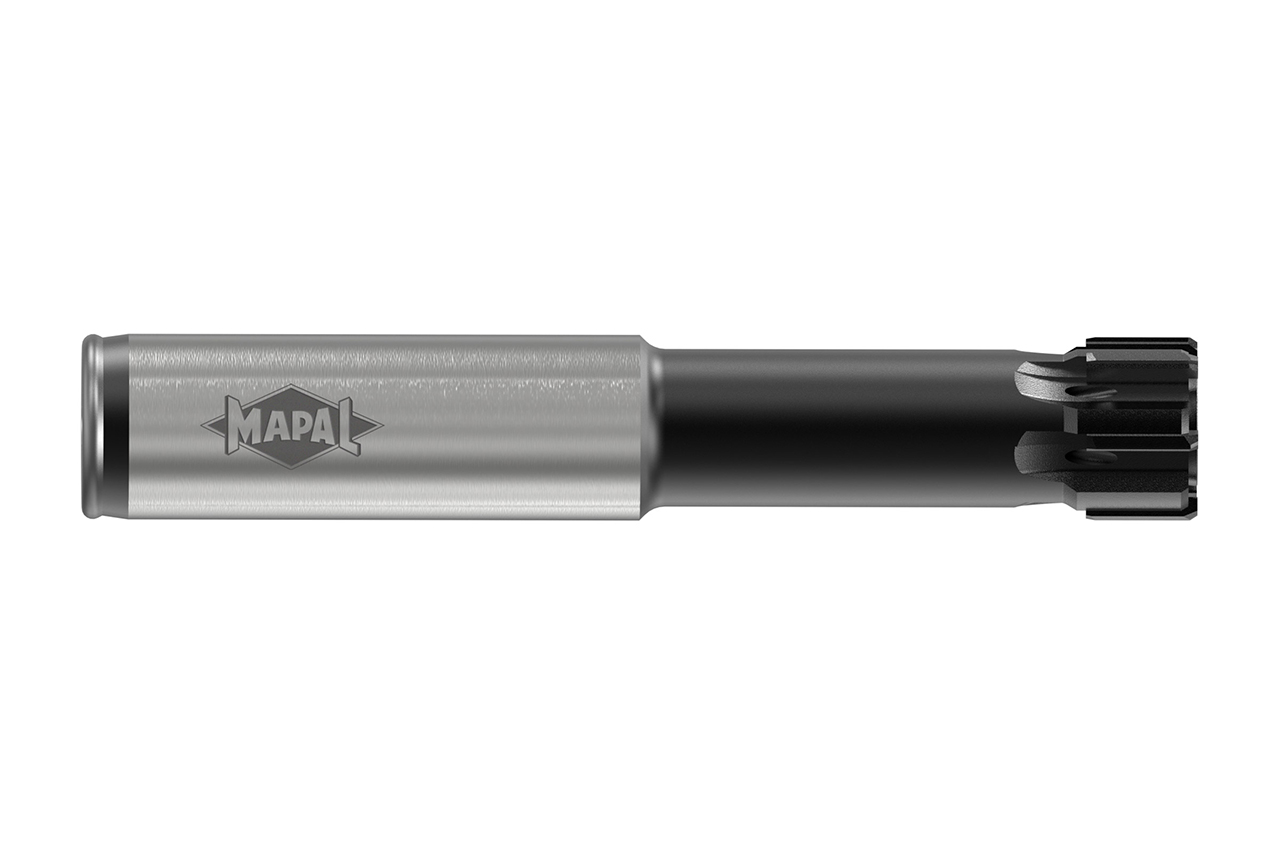

  • Product image FixReam 7++

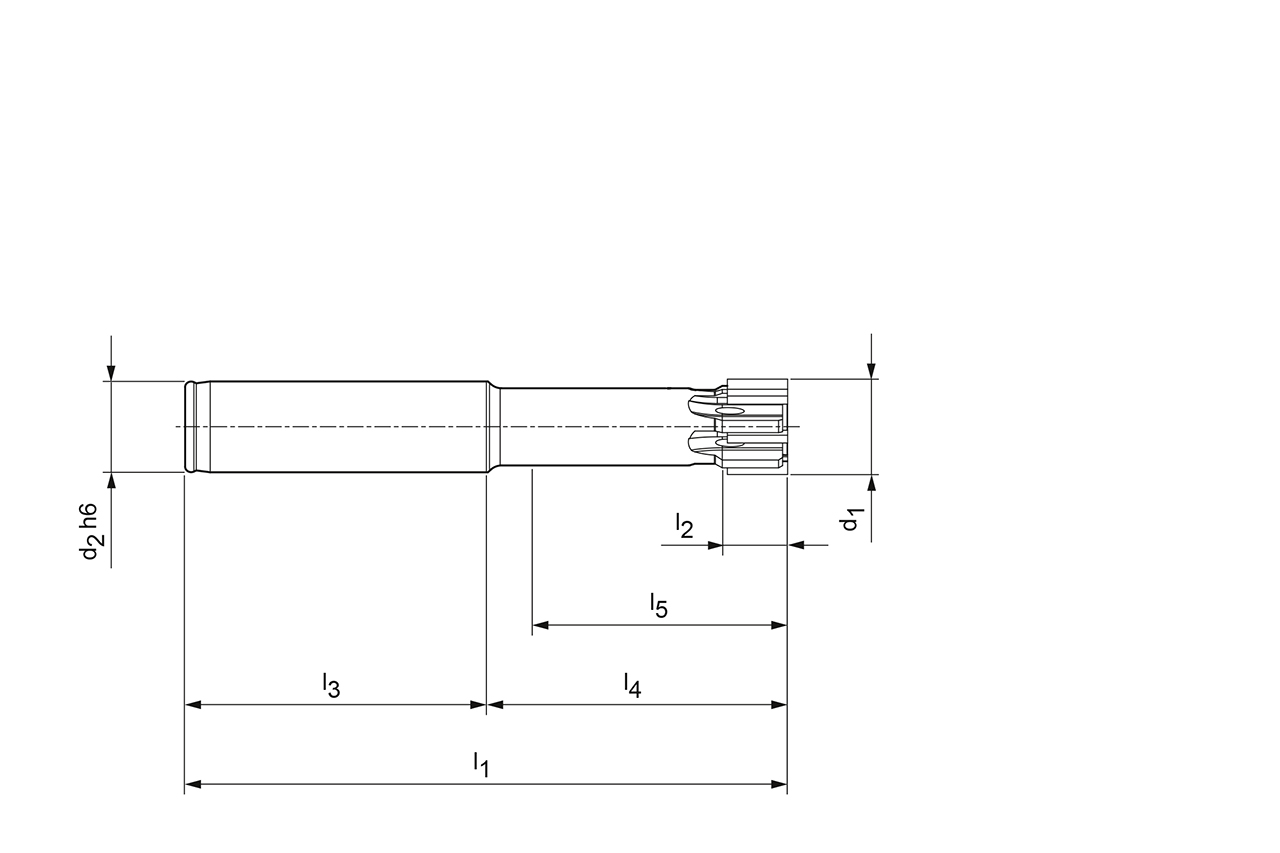

  • Technical drawing FixReam 7++

Diameter d1 (mm)

22.0

Your unit price

*Login required

Article

31553813

Quantity

Added to Your Shopping Cart

Product description

The FixReam 700 was developed to increase economic efficiency through effective reconditioning. Thanks to an expansion screw, the multi-bladed reamer can be expanded in diameter before regrinding. As a result, all
functional surfaces can be reground, both on the lead as well as on the tool diameter. This allows the reamer to be reused up to 9 times.

Material suitability

Technical specifications

Connection type
Cylindrical shank
Connection size
20
Type of bore
Through bore
d1
22   mm
d3
20   mm
l1
120   mm
l2
12   mm
l3
50   mm
l4
60   mm
l5
55   mm
Toleranz
H7
Kühlmittelaustritt
externe Kühlmittelzufuhr
Anzahl Schneiden (z)
6
Materialgruppe
TF
Spezifikation
FXR702Ø22.000H7LA1G-HP905

Downloads

Technische Zeichnung in tif
31553813_608180474-000-00-ED1.TIF
Technische Zeichnung in dxf
31553813_608180474-000-00-ED1.DXF
3D Hüllkontur in stp
31553813_608180475-000-00-E43.STP
Brochure
31553813_MAPAL_FixReam-700__EN.pdf
