FixReam | FXR705

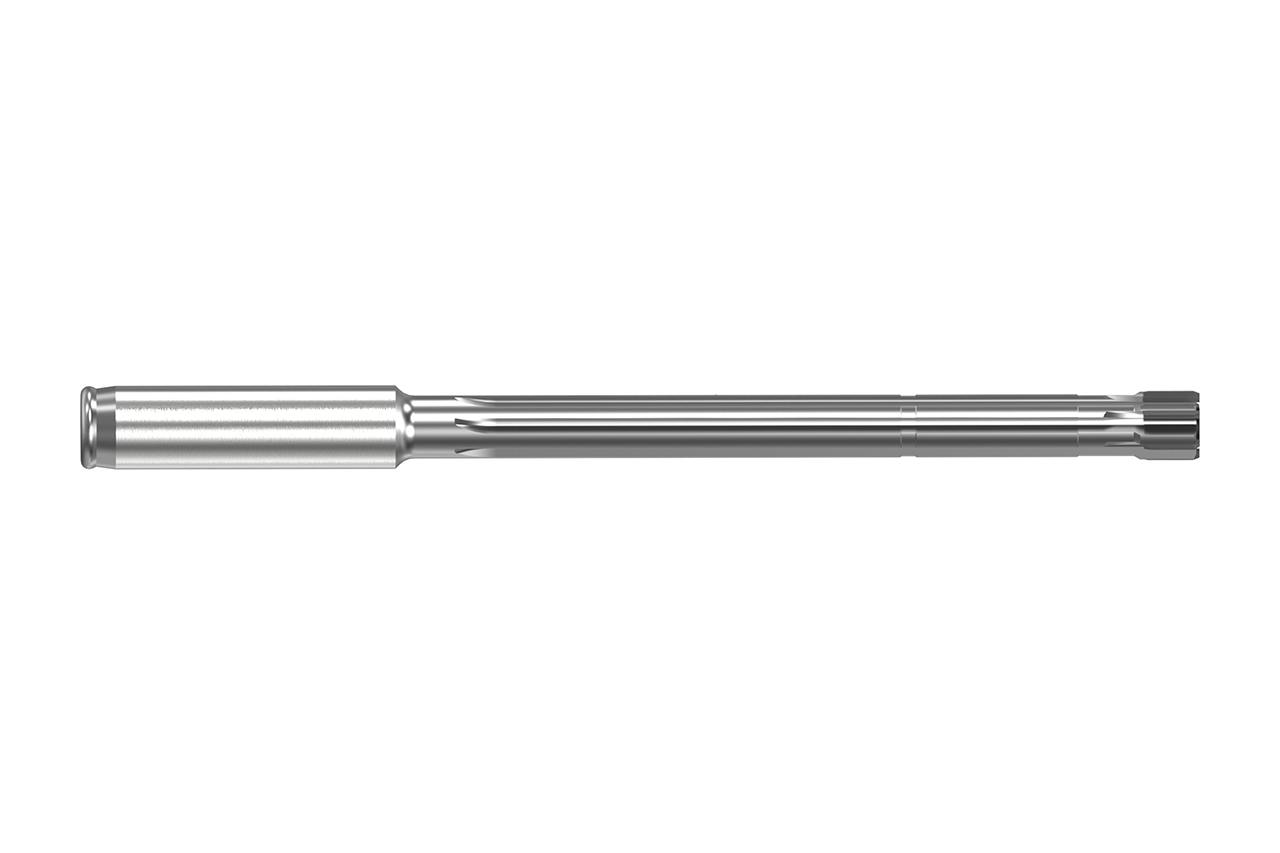

  • Product image FixReam 700

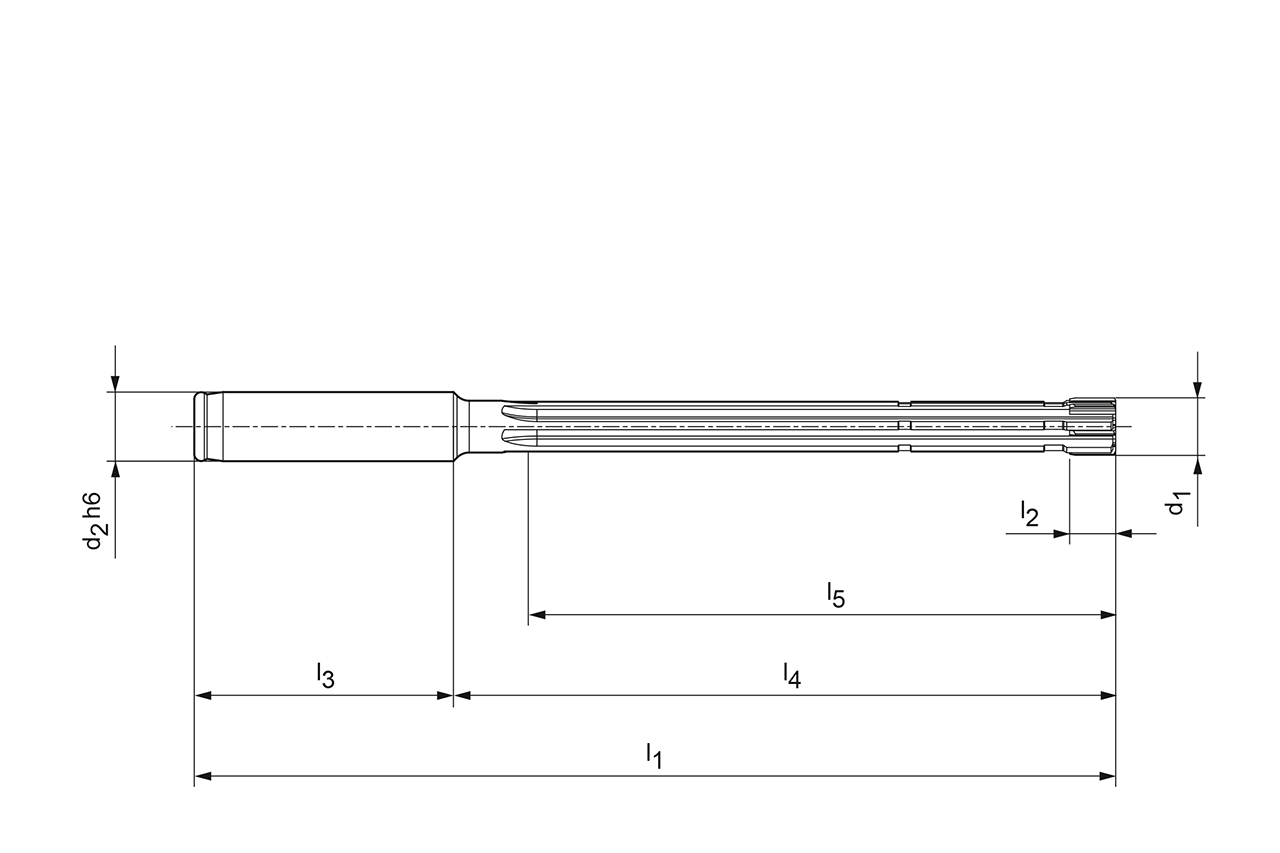

  • Technical drawing FixReam 700

Diameter d1 (mm)

20.0

Your unit price

*Login required

Article

31461000

Quantity

Added to Your Shopping Cart

Product description

The FixReam 700 was developed to increase economic efficiency through effective reconditioning. Thanks to an expansion screw, the multi-bladed reamer can be expanded in diameter before regrinding. As a result, all
functional surfaces can be reground, both on the lead as well as on the tool diameter. This allows the reamer to be reused up to 9 times.

Material suitability

Technical specifications

Connection type
Cylindrical shank
Type of bore
Blind bore
d1
20   mm
d3
20   mm
l1
200   mm
l2
12   mm
l3
50   mm
l4
140   mm
l5
120   mm
Tolerance
H7
Cutting material
CU111
Number of cutting edges (z)
6
Material group
TF

Downloads

Brochure
31461000_FixReam__EN.pdf
