FixReam | FXR705

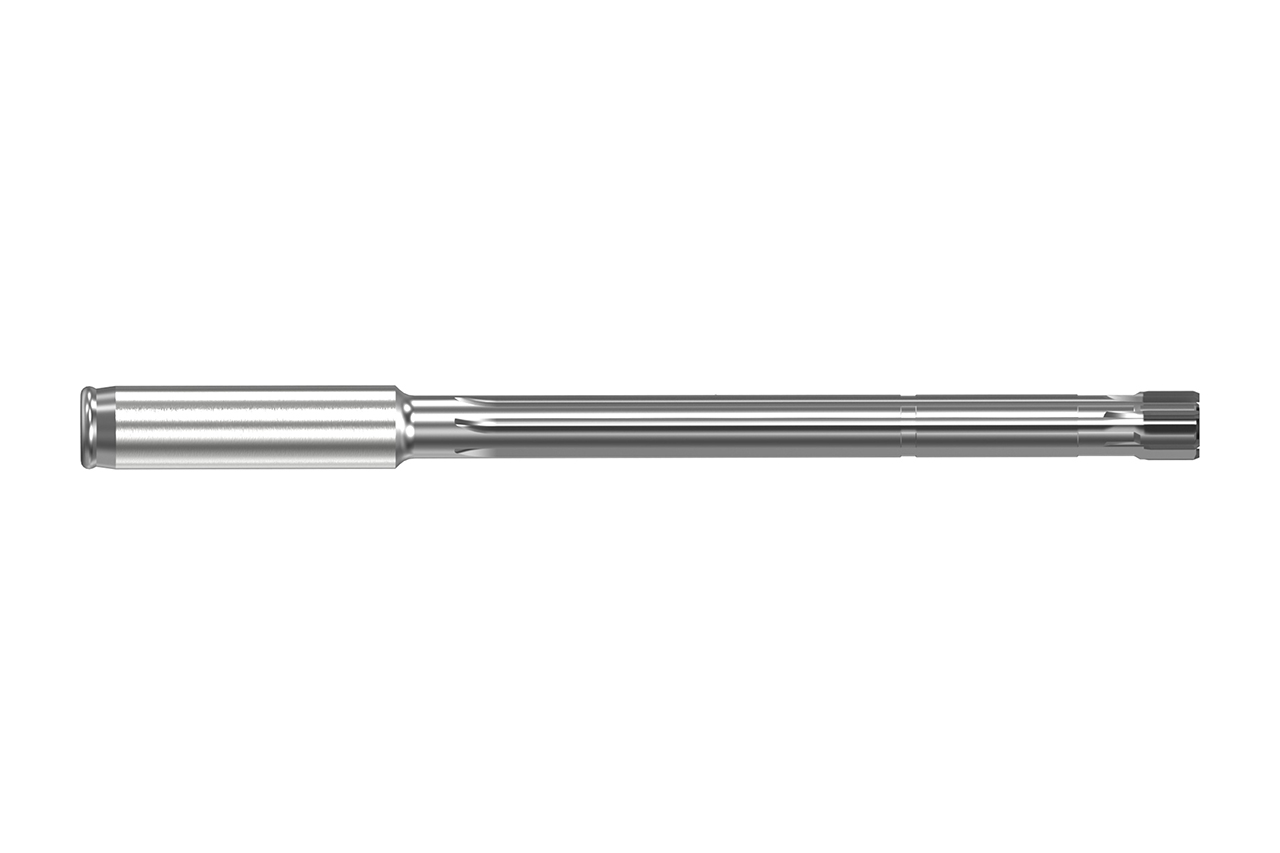

  • Product image FixReam 700

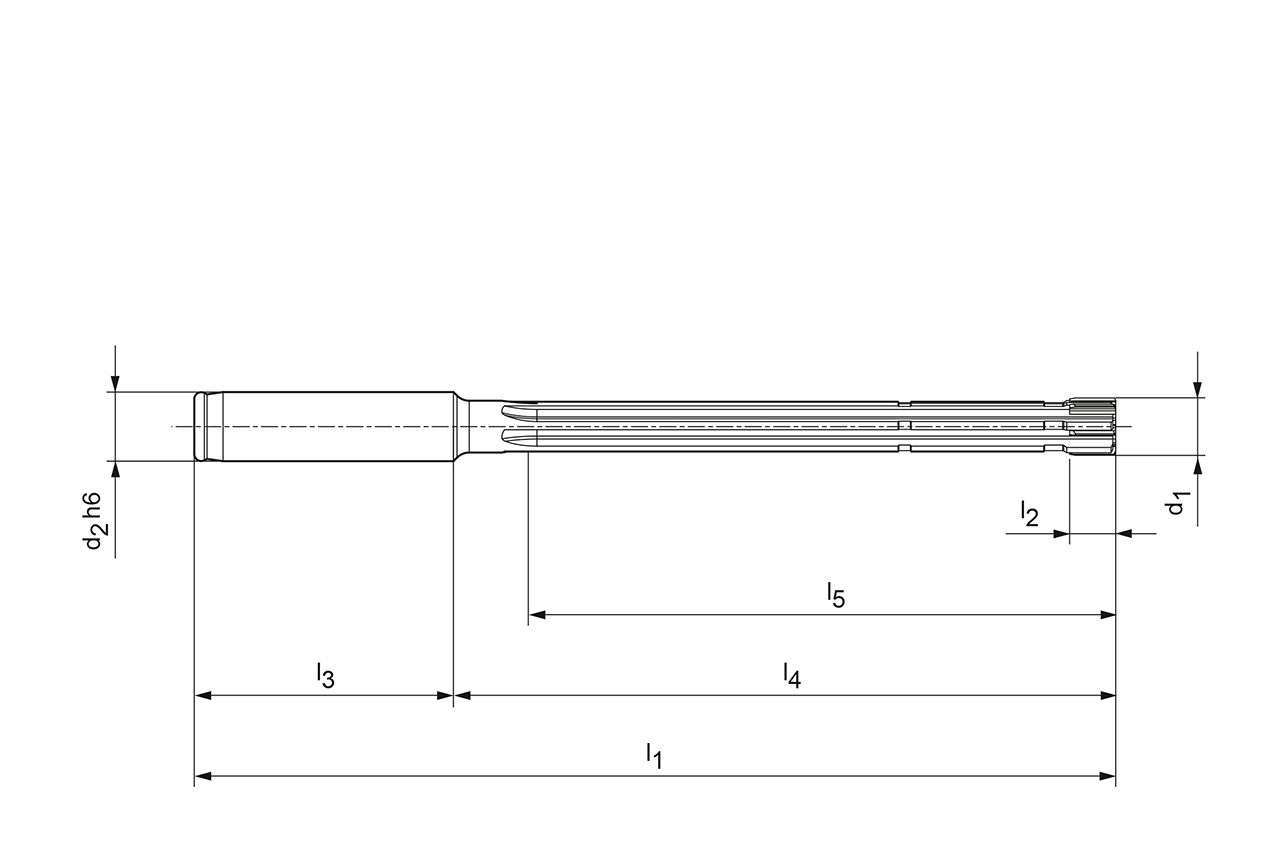

  • Technical drawing FixReam 700

Diameter d1 (mm)

16.0

Your unit price

*Login required

Article

31460998

Quantity

Added to Your Shopping Cart

Product description

The FixReam 700 was developed to increase economic efficiency through effective reconditioning. Thanks to an expansion screw, the multi-bladed reamer can be expanded in diameter before regrinding. As a result, all
functional surfaces can be reground, both on the lead as well as on the tool diameter. This allows the reamer to be reused up to 9 times.

Material suitability

Technical specifications

Trennstelle
Zylinderschaft
Trennstellengröße
0160
Bohrungsart
Grundbohrung
d1
16   mm
d2
16   mm
l1
180   mm
l2
12   mm
l3
48   mm
l4
130   mm
l5
113   mm
Toleranz
H7
Schneidstoff
CU111
Kühlmittelaustritt
externe Kühlmittelzufuhr
Anzahl Schneiden (z)
6
Materialgruppe
TF
Spezifikation
FXR705Ø16.000H7LB1G-CU111

Downloads

Technische Zeichnung in tif
31460998_608026987-000-00-ED1.TIF
Technische Zeichnung in dxf
31460998_608026987-000-00-ED1.DXF
3D Hüllkontur in stp
31460998_608026988-000-00-E43.STP
Brochure
31460998_MAPAL_FixReam-700__EN.pdf
