FixReam | FXR705
Durchmesser d1 (mm)
14.0
Ihr Stückpreis
*Login erforderlichProduktbeschreibung

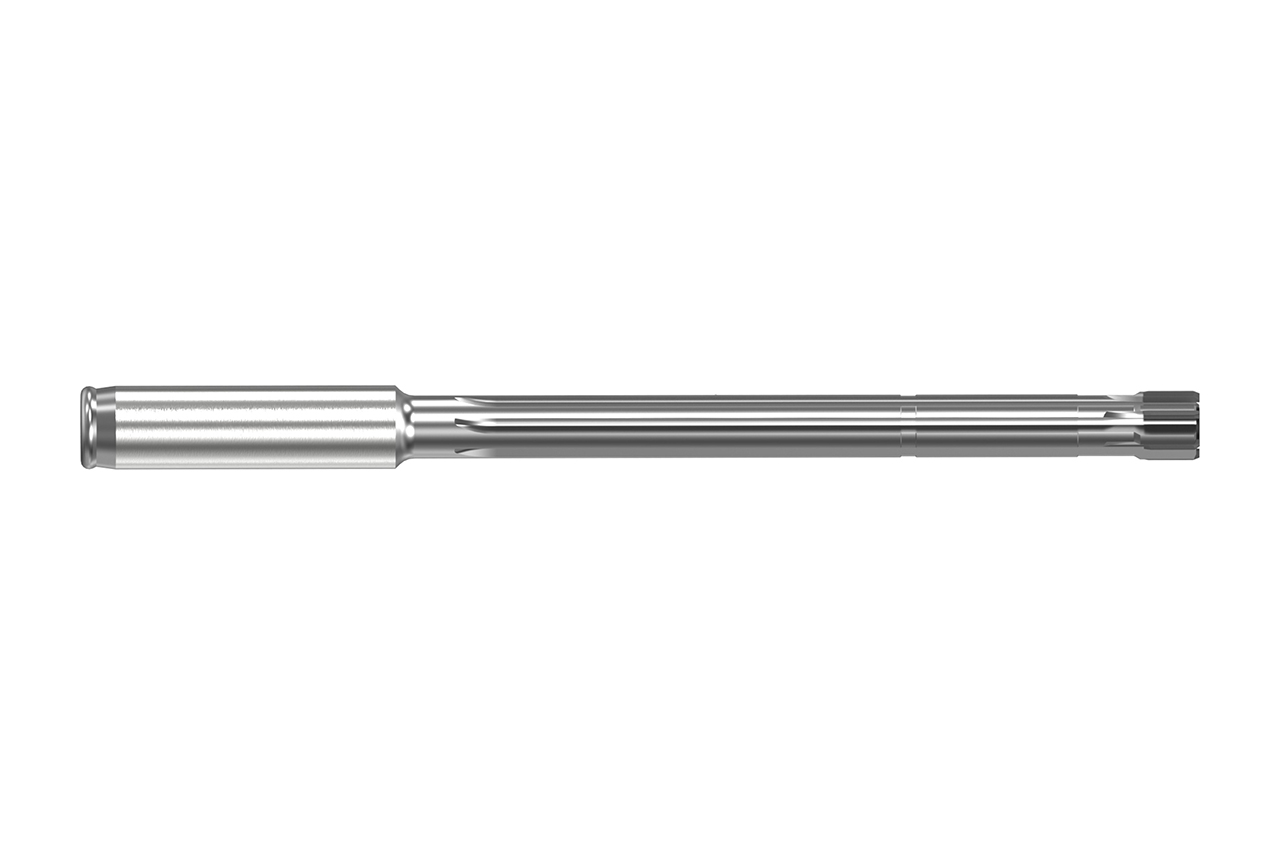

The FixReam 700 was developed to increase economic efficiency through effective reconditioning. Thanks to an expansion screw, the multi-bladed reamer can be expanded in diameter before regrinding. As a result, all
functional surfaces can be reground, both on the lead as well as on the tool diameter. This allows the reamer to be reused up to 9 times.
Technische Daten
- Trennstelle
- Zylinderschaft
- Trennstellengröße
- 12
- Bohrungsart
- Grundbohrung
- d1
- 14 mm
- d2
- 12 mm
- l1
- 160 mm
- l2
- 8 mm
- l3
- 45 mm
- l4
- 115 mm
- l5
- 100 mm
- Toleranz
- H7
- Schneidstoff
- CU111
- Kühlmittelaustritt
- externe Kühlmittelzufuhr
- Anzahl Schneiden (z)
- 6
- Materialgruppe
- TF
- Spezifikation
- FXR705Ø14.000H7LB1G-CU111
Downloads

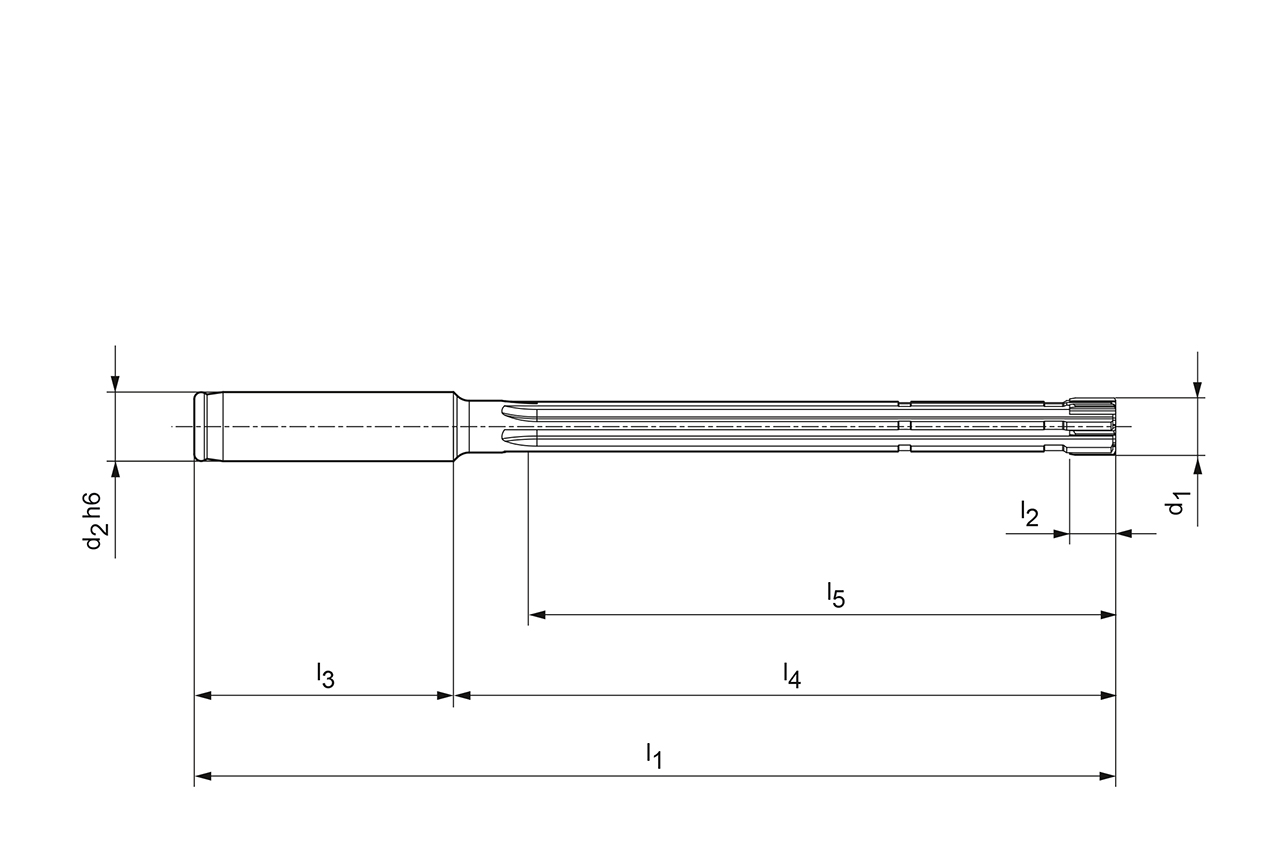

- Technische Zeichnung in tif
- 31460997_608026985-000-00-ED1.TIF
- Technische Zeichnung in dxf
- 31460997_608026985-000-00-ED1.DXF
- 3D Hüllkontur in stp
- 31460997_608026986-000-00-E43.STP
- Brochure
- 31460997_MAPAL_FixReam-700__EN.pdf
