FixReam | FXR705
Diameter d1 (mm)
10.0
Your unit price
*Login requiredProduct description

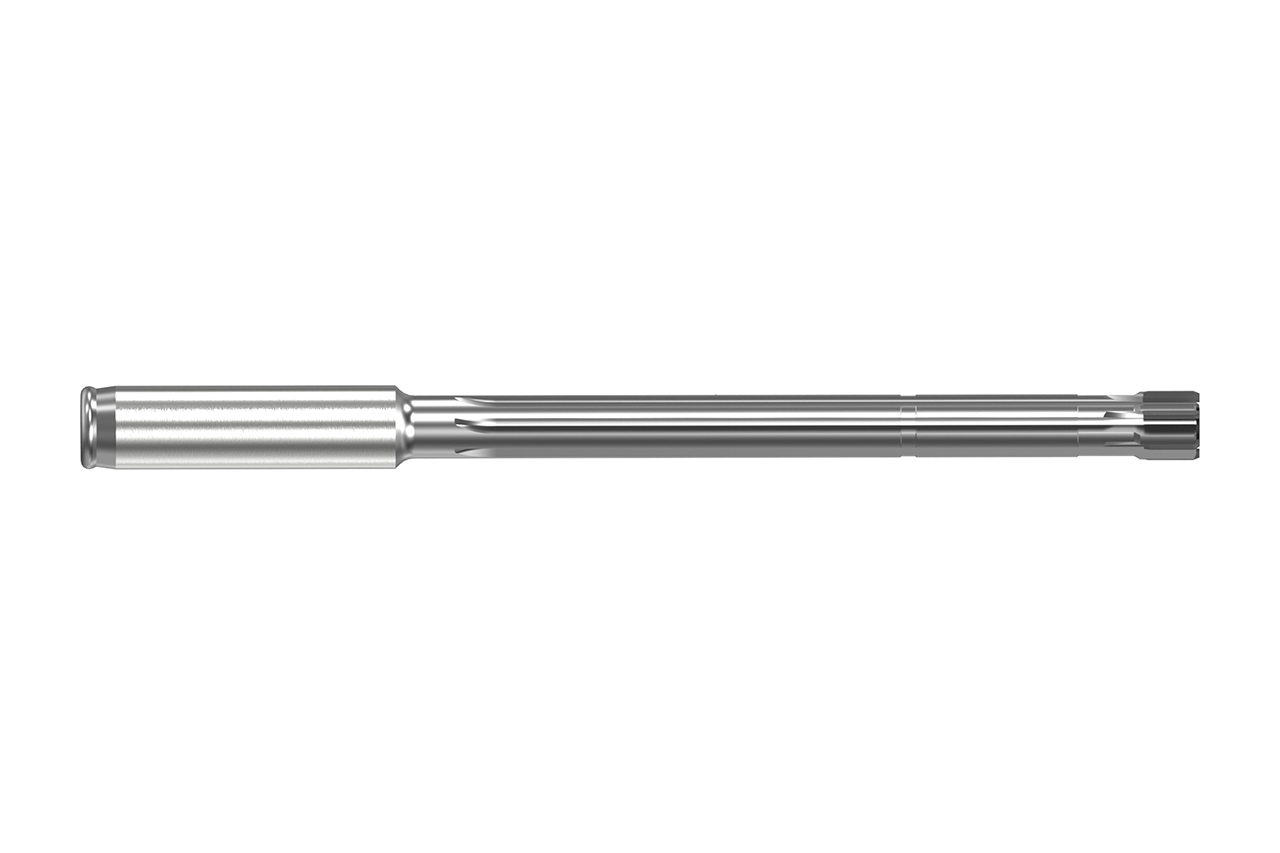

The FixReam 700 was developed to increase economic efficiency through effective reconditioning. Thanks to an expansion screw, the multi-bladed reamer can be expanded in diameter before regrinding. As a result, all
functional surfaces can be reground, both on the lead as well as on the tool diameter. This allows the reamer to be reused up to 9 times.
Technical specifications
- Connection type
- Cylindrical shank
- Connection size
- 12
- Type of bore
- Blind bore

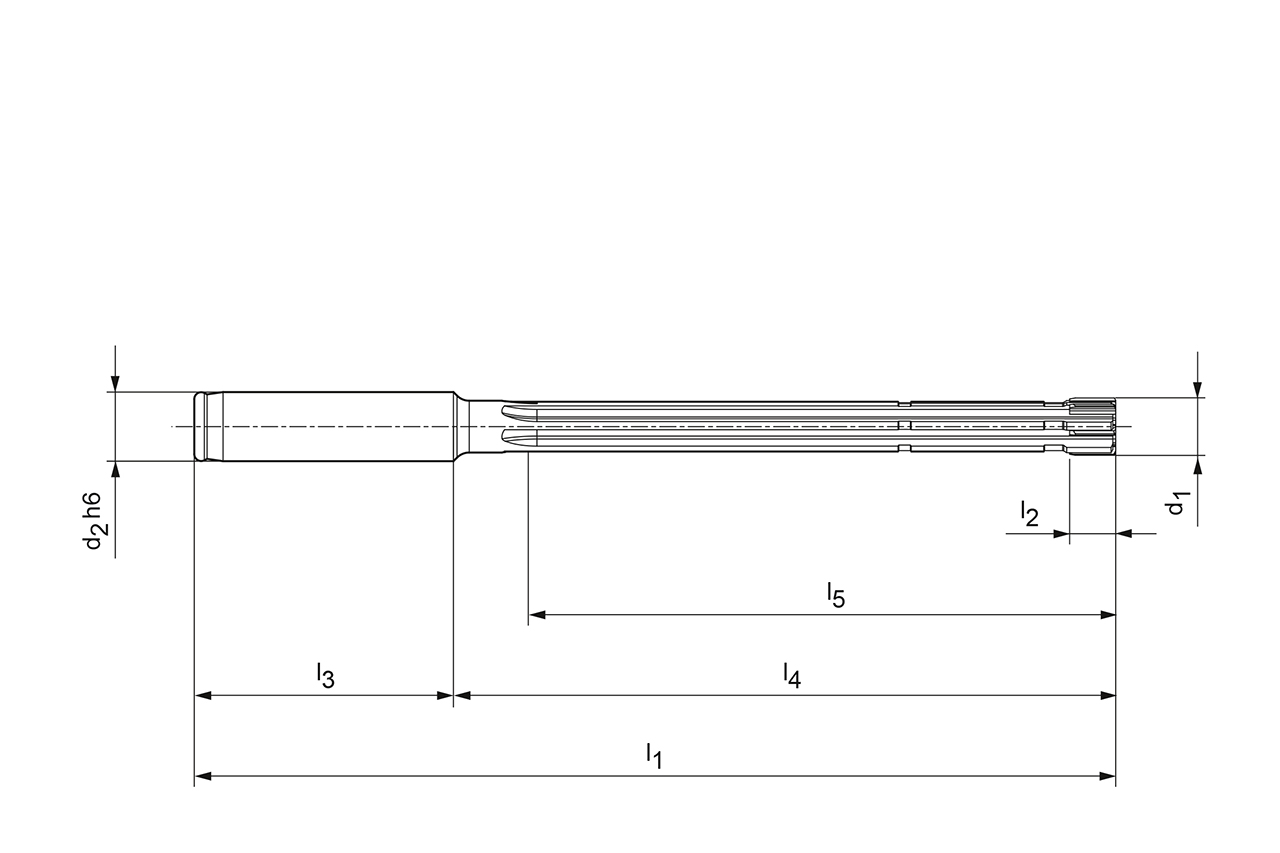

- d1
- 10 mm
- d3
- 12 mm
- l1
- 160 mm
- l2
- 8 mm
- l3
- 45 mm
- l4
- 115 mm
- l5
- 100 mm
- Toleranz
- H7
- Schneidstoff
- CU111
- Kühlmittelaustritt
- externe Kühlmittelzufuhr
- Anzahl Schneiden (z)
- 6
- Materialgruppe
- TF
- Spezifikation
- FXR705Ø10.000H7LB1G-CU111
Downloads
- Technische Zeichnung in tif
- 31460995_608026980-000-00-ED1.TIF
- Technische Zeichnung in dxf
- 31460995_608026980-000-00-ED1.DXF
- 3D Hüllkontur in stp
- 31460995_608026981-000-00-E43.STP
- Brochure
- 31460995_MAPAL_FixReam-700__EN.pdf
