FixReam | FXR703

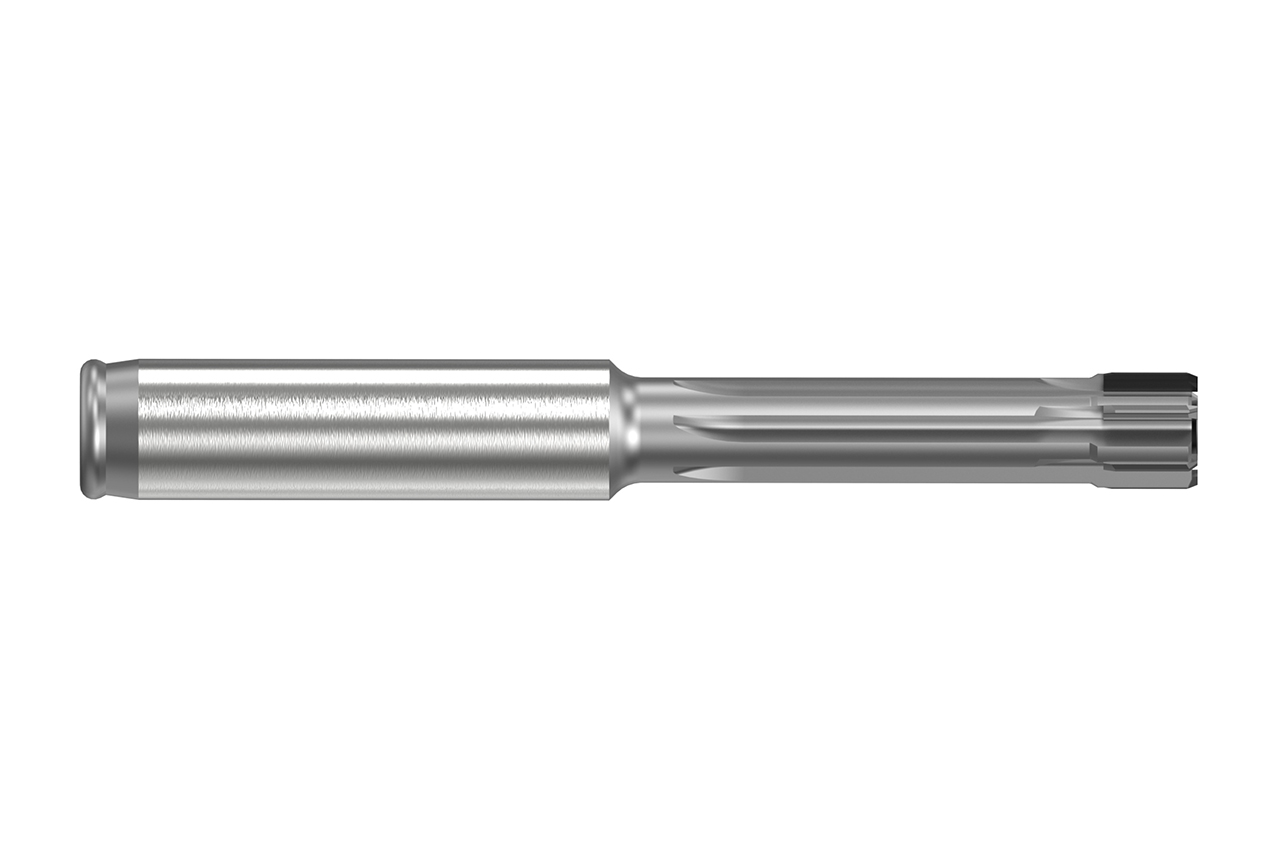

  • Product image FixReam 700

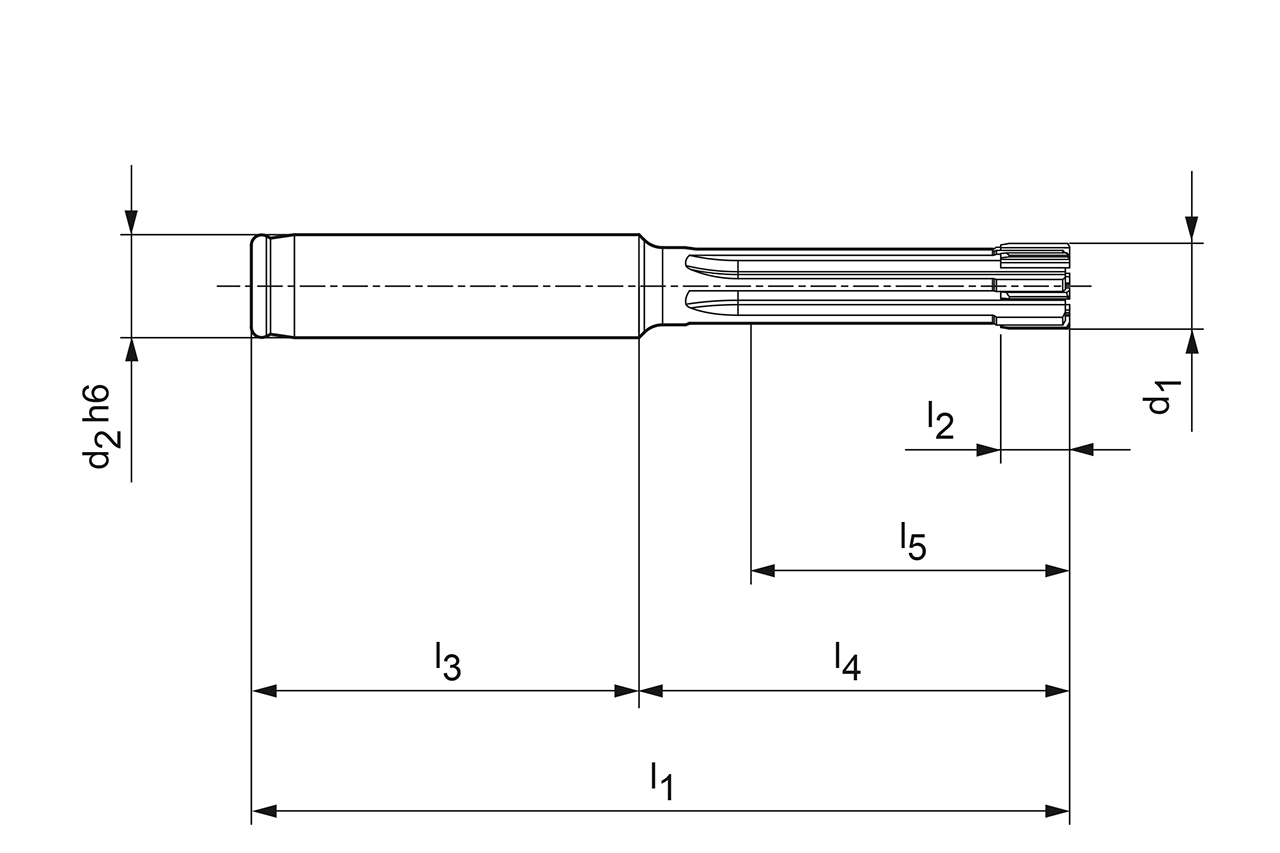

  • Technical drawing FixReam 700

Durchmesser d1 (mm)

32.0

Ihr Stückpreis

*Login erforderlich

Bestellnummer

31460994

Menge

Ihrem Warenkorb hinzugefügt

Produktbeschreibung

The FixReam 700 was developed to increase economic efficiency through effective reconditioning. Thanks to an expansion screw, the multi-bladed reamer can be expanded in diameter before regrinding. As a result, all
functional surfaces can be reground, both on the lead as well as on the tool diameter. This allows the reamer to be reused up to 9 times.

Materialeignung

Technische Daten

Trennstelle
Zylinderschaft
Trennstellengröße
25
Bohrungsart
Grundbohrung
d1
32   mm
d2
25   mm
l1
135   mm
l2
12   mm
l3
56   mm
l4
75   mm
l5
60   mm
Toleranz
H7
Schneidstoff
CU111
Kühlmittelaustritt
externe Kühlmittelzufuhr
Anzahl Schneiden (z)
6
Materialgruppe
TF
Spezifikation
FXR703Ø32.000H7LB1G-CU111

Downloads

Technische Zeichnung in tif
31460994_608026977-000-00-ED1.TIF
Technische Zeichnung in dxf
31460994_608026977-000-00-ED1.DXF
3D Hüllkontur in stp
31460994_608026978-000-00-E43.STP
Brochure
31460994_MAPAL_FixReam-700__EN.pdf
