FixReam | FXR703
Durchmesser d1 (mm)
16.0
Ihr Stückpreis
*Login erforderlichProduktbeschreibung

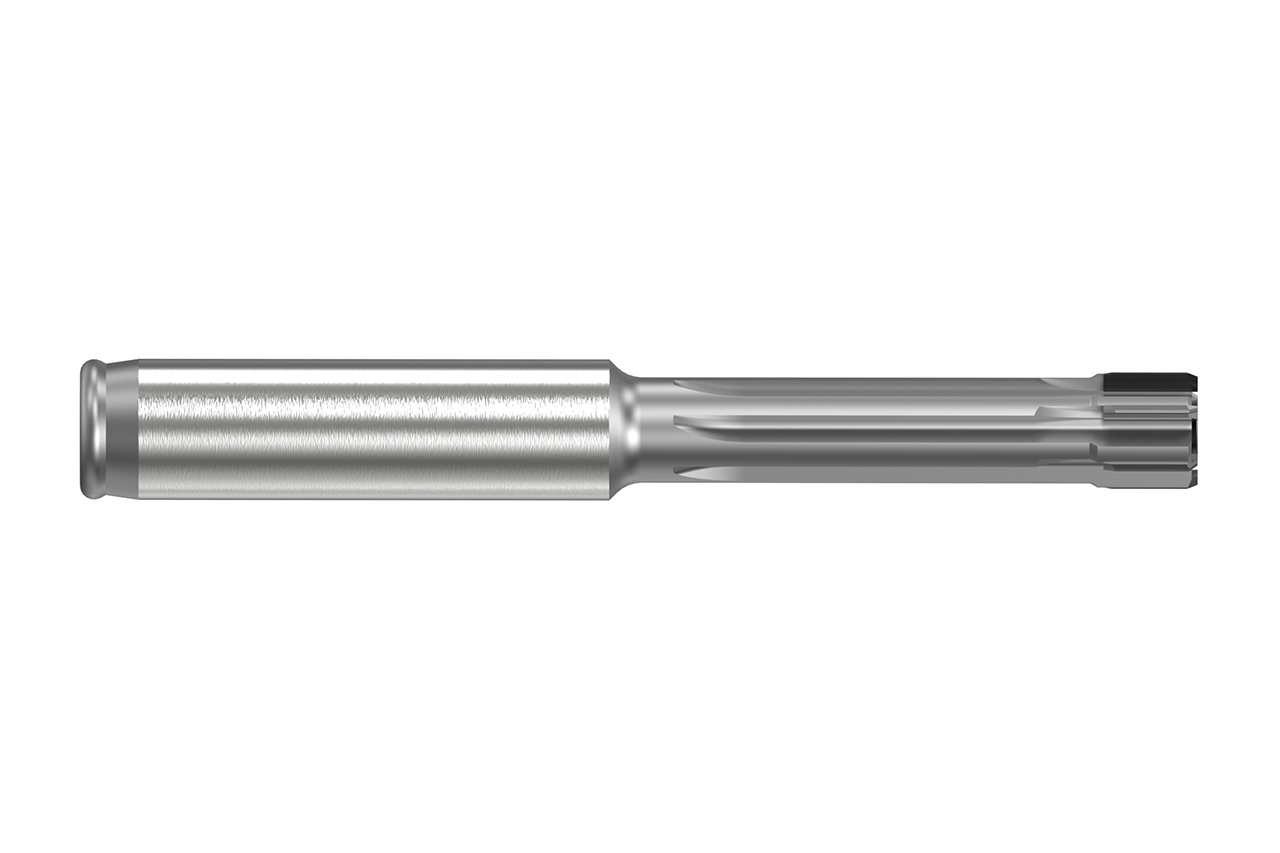

The FixReam 700 was developed to increase economic efficiency through effective reconditioning. Thanks to an expansion screw, the multi-bladed reamer can be expanded in diameter before regrinding. As a result, all
functional surfaces can be reground, both on the lead as well as on the tool diameter. This allows the reamer to be reused up to 9 times.
Technische Daten
- Trennstelle
- Zylinderschaft
- Connection size
- 0160
- Type of bore
- Blind bore

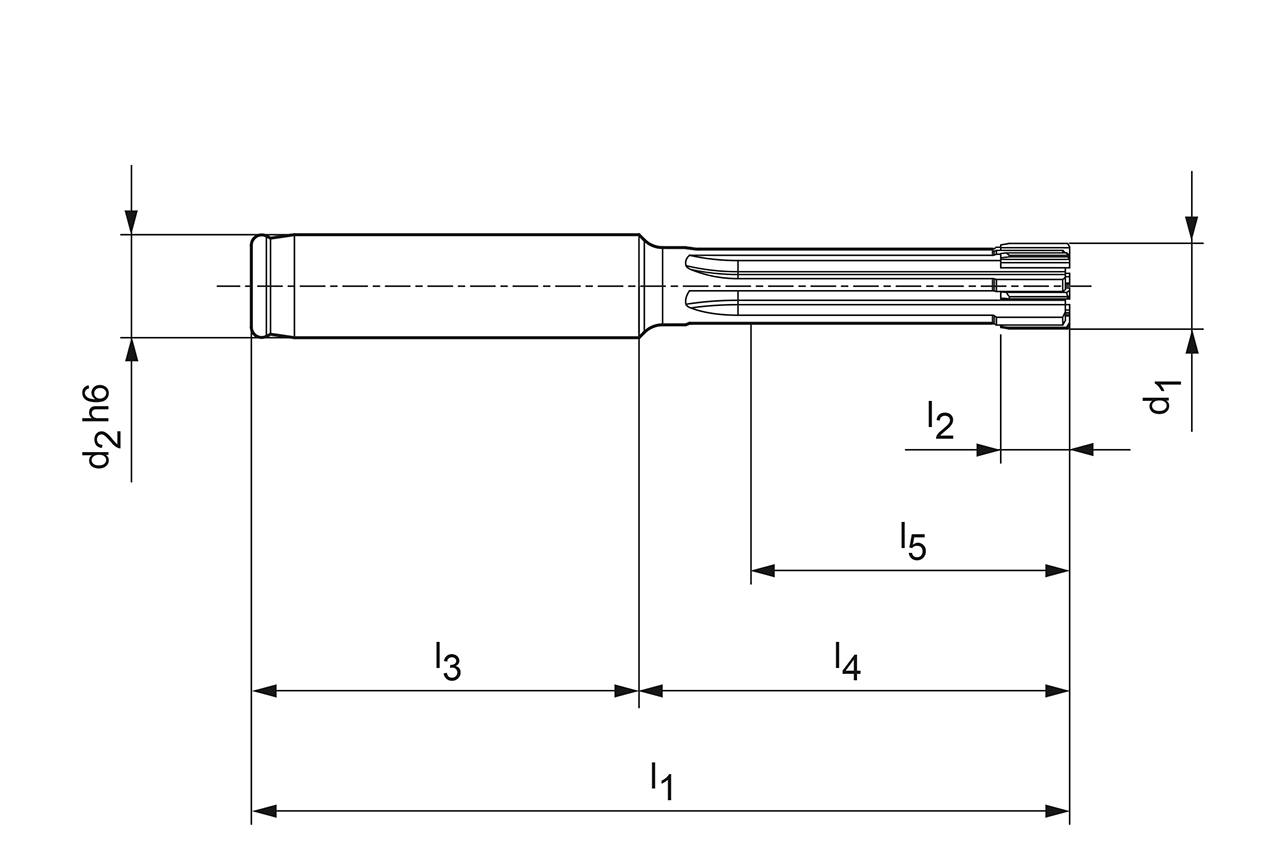

- d1
- 16 mm
- d3
- 16 mm
- l1
- 100 mm
- l2
- 12 mm
- l3
- 48 mm
- l4
- 50 mm
- l5
- 38 mm
- Tolerance
- H7
- Cutting material
- CU111
- Cooling
- external cooling
- Number of cutting edges (z)
- 6
- Material group
- TF
- Specification
- FXR703Ø16.000H7LB1G-CU111
Downloads
- Technical drawing in tif
- 31460986_608026965-000-00-ED1.TIF
- Technical drawing in dxf
- 31460986_608026965-000-00-ED1.DXF
- 3D envelope in stp
- 31460986_608026966-000-00-E43.STP
- Brochure
- 31460986_MAPAL_FixReam-700__EN.pdf
