FixReam | FXR700

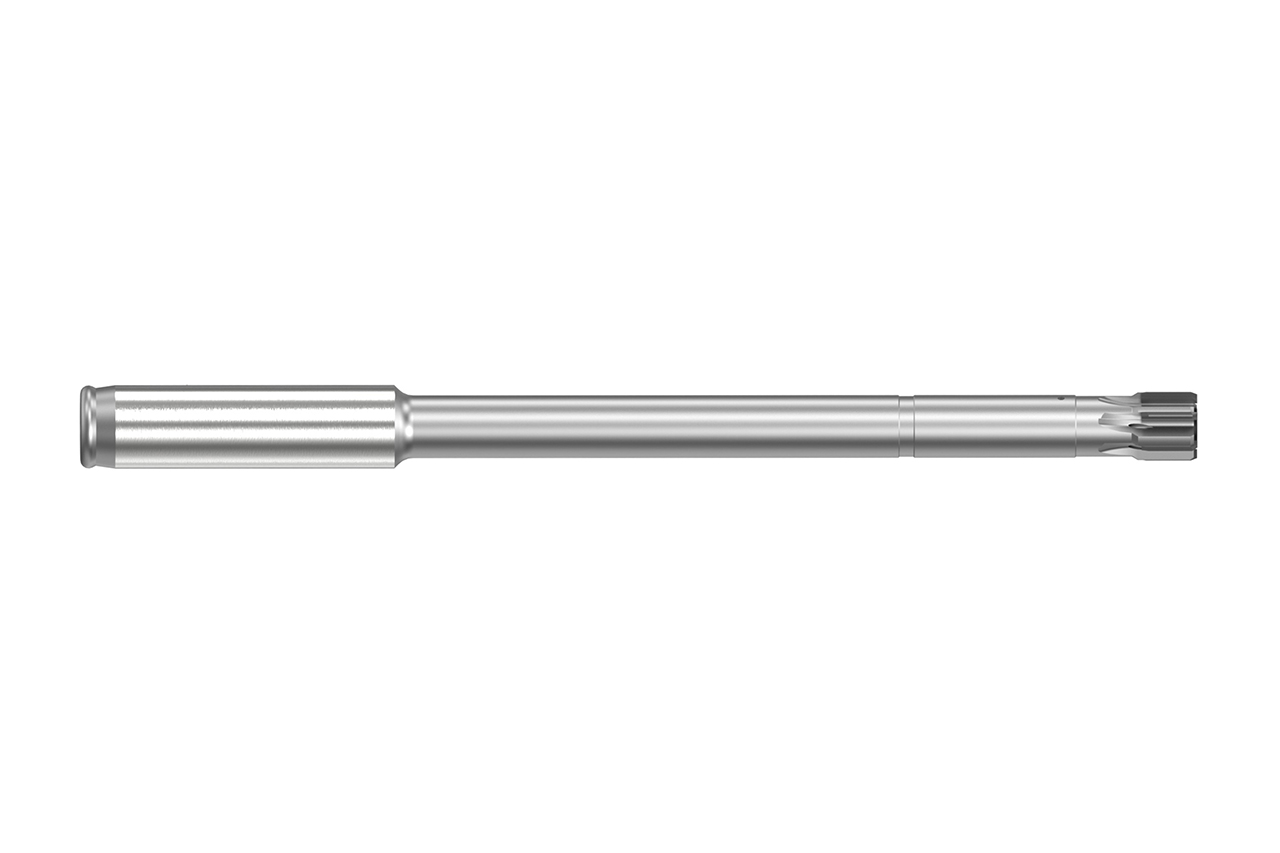

  • Product image FixReam 700

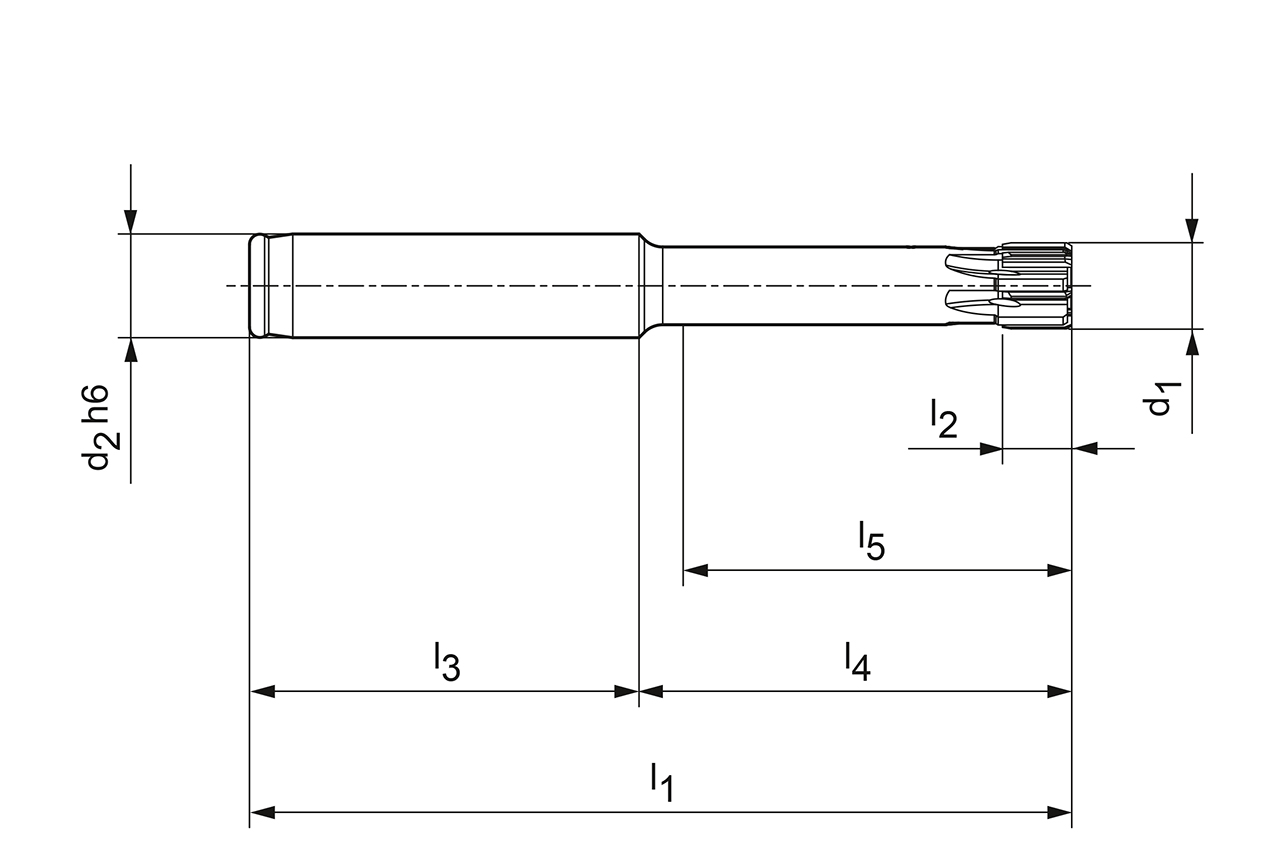

  • Technical drawing FixReam 700

Durchmesser d1 (mm)

18.0

Ihr Stückpreis

*Login erforderlich

Bestellnummer

31460975

Menge

Ihrem Warenkorb hinzugefügt

Produktbeschreibung

The FixReam 700 was developed to increase economic efficiency through effective reconditioning. Thanks to an expansion screw, the multi-bladed reamer can be expanded in diameter before regrinding. As a result, all
functional surfaces can be reground, both on the lead as well as on the tool diameter. This allows the reamer to be reused up to 9 times.

Materialeignung

Technische Daten

Trennstelle
Zylinderschaft
Trennstellengröße
0160
Bohrungsart
Durchgangsbohrung
d1
18   mm
d2
16   mm
l1
180   mm
l2
12   mm
l3
48   mm
l4
130   mm
l5
125   mm
Toleranz
H7
Schneidstoff
CU111
Kühlmittelaustritt
externe Kühlmittelzufuhr
Anzahl Schneiden (z)
6
Materialgruppe
TF
Spezifikation
FXR700Ø18.000H7LA1G-CU111

Downloads

Technische Zeichnung in tif
31460975_608026943-000-00-ED1.TIF
Technische Zeichnung in dxf
31460975_608026943-000-00-ED1.DXF
3D Hüllkontur in stp
31460975_608026944-000-00-E43.STP
Brochure
31460975_MAPAL_FixReam-700__EN.pdf
