FixReam | FXR500
Diameter d1 (mm)
10.0
Your unit price
*Login requiredProduct description

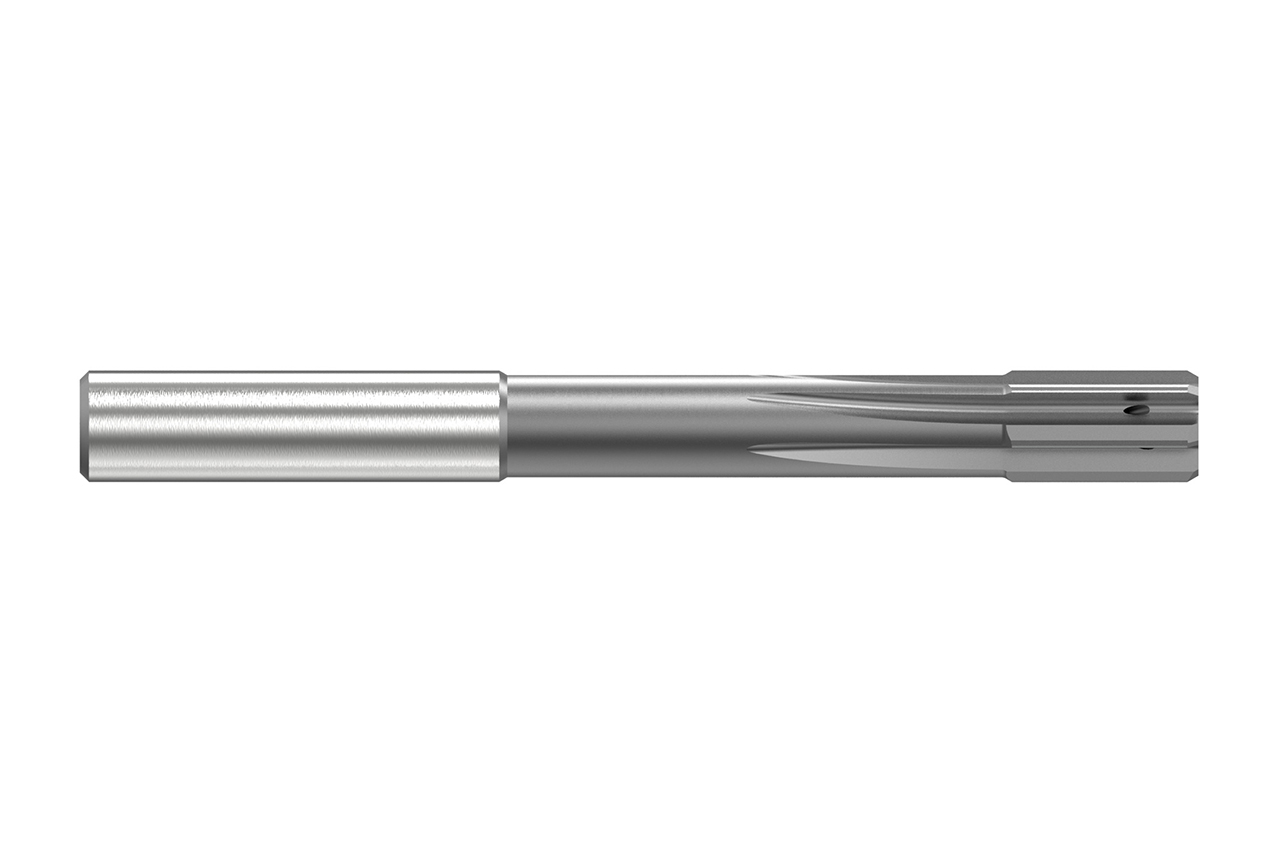

The FXR series of high-performance reamers made of solid carbide cover a wide range of applications. Depending on the diameter, the high-performance FixReam reamers have between four and eight cutting edges with internal cooling and thus achieve correspondingly high feed rates.
Technical specifications
- Connection type
- Cylindrical shank
- Trennstellengröße
- 10
- Bohrungsart
- Durchgangsbohrung

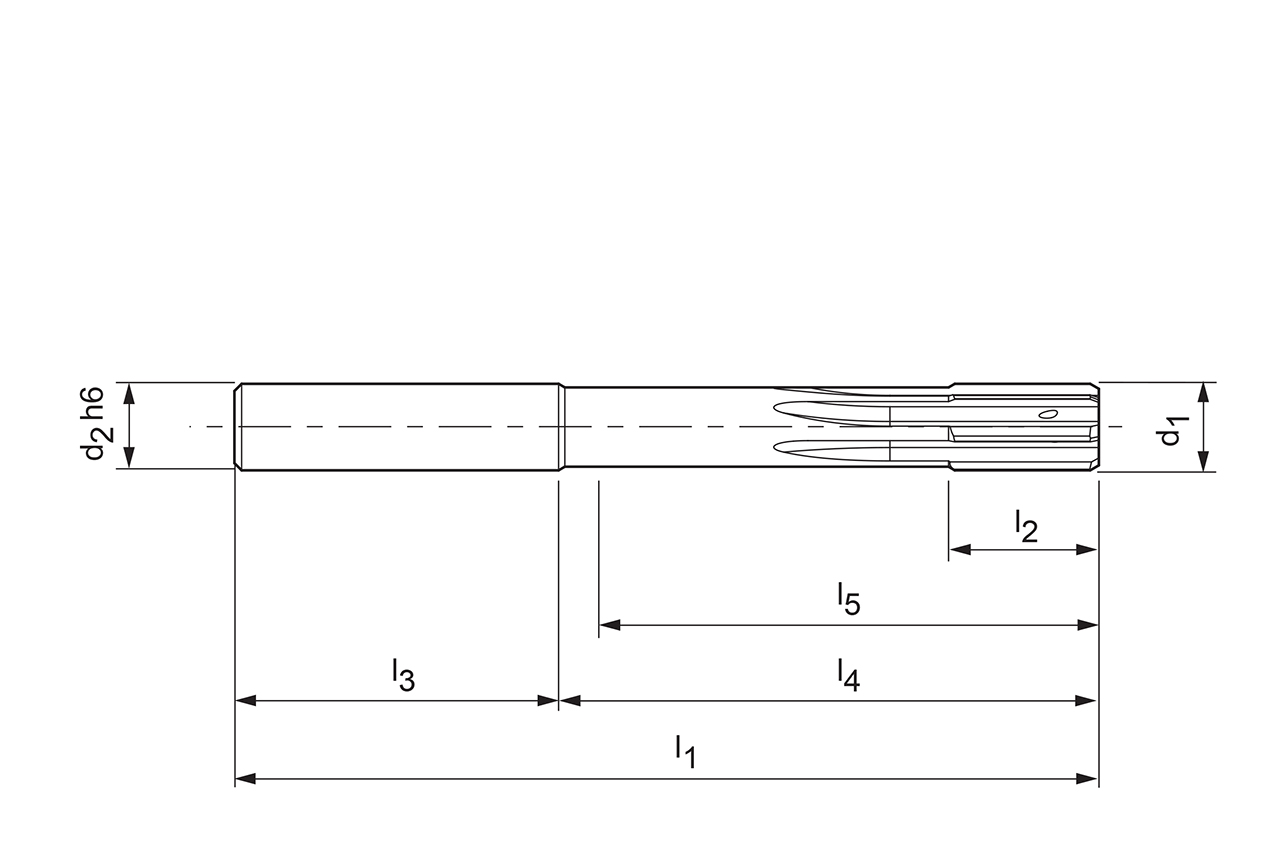

- d1
- 10 mm
- d2
- 10 mm
- l1
- 120 mm
- l2
- 20 mm
- l3
- 40 mm
- l4
- 80 mm
- l5
- 76 mm
- Toleranz
- H7
- Schneidstoff
- HP141
- Anzahl Schneiden (z)
- 6
- Materialgruppe
- XN
Downloads
- 3D Hüllkontur in stp
- 30570834_607412305-000-00-E43.STP
- Technische Zeichnung in dxf
- 30570834_607990693-000-00-ED1.DXF
- Technische Zeichnung in tif
- 30570834_607990693-000-00-ED1.TIF
