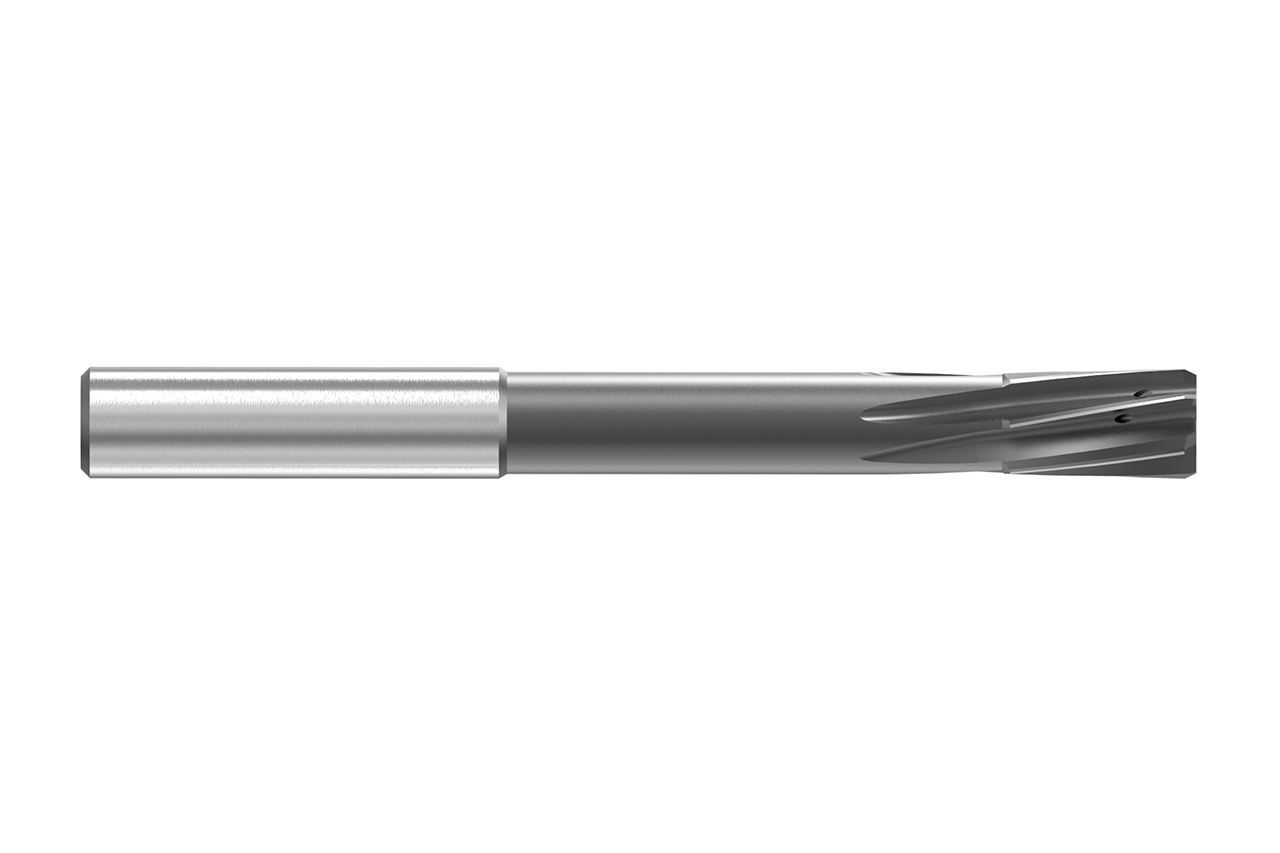

FixReam | FXR510
Durchmesser d1 (mm)
11.0
Ihr Stückpreis
*Login erforderlichProduktbeschreibung
The FXR series of high-performance reamers made of solid carbide cover a wide range of applications. Depending on the diameter, the high-performance FixReam reamers have between four and eight cutting edges with internal cooling and thus achieve correspondingly high feed rates.
Technische Daten
- Materialgruppe
- XN
- Spezifikation
- FXR510Ø11.000H7MF1M-HP145
Downloads
- 3D Hüllkontur in stp
- 30570786_607444020-000-00-E43.STP

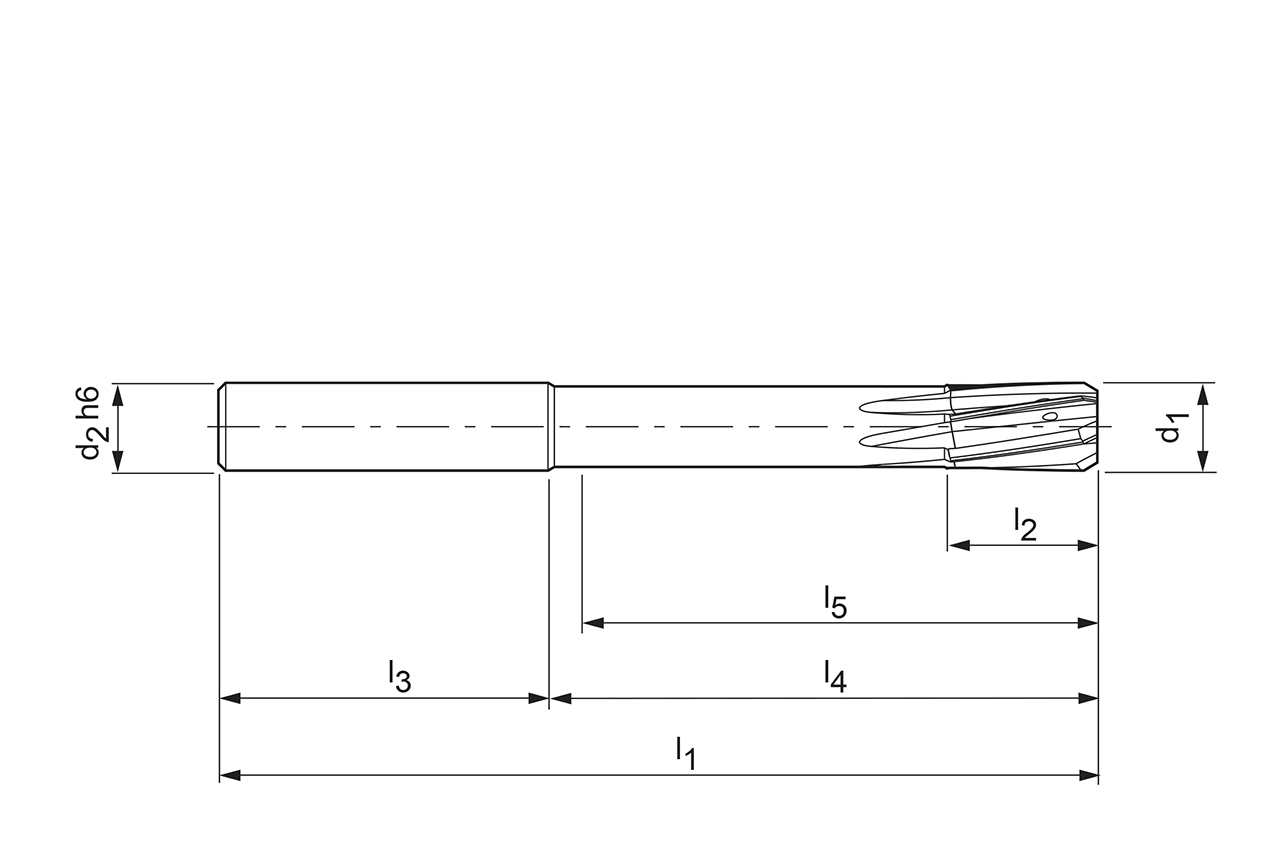

- Technische Zeichnung in dxf
- 30570786_607991409-000-00-ED1.DXF
- Technische Zeichnung in tif
- 30570786_607991409-000-00-ED1.TIF
- Cutting data recommendations
- 30570786_FixReam5_EN.pdf
