FixReam | FXR510

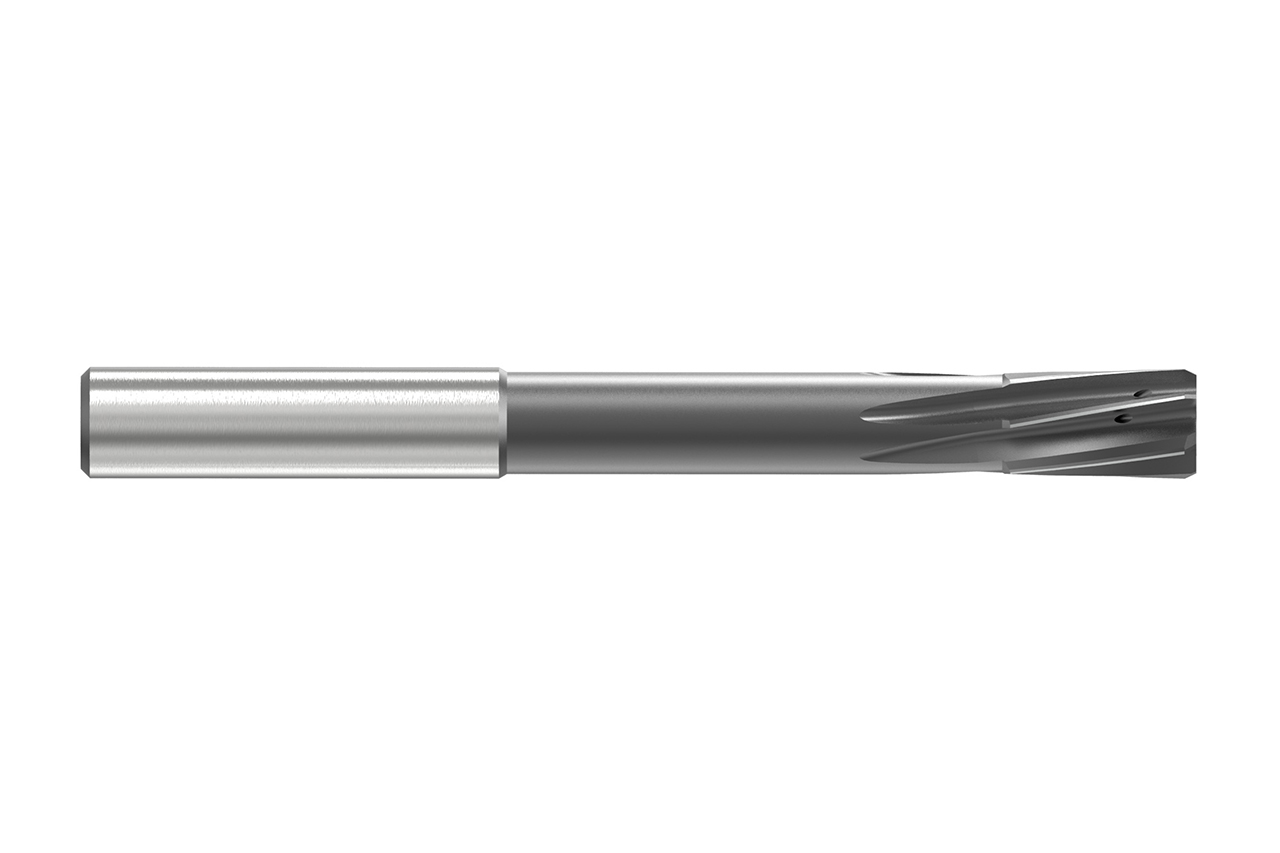

  • Product image FixReam

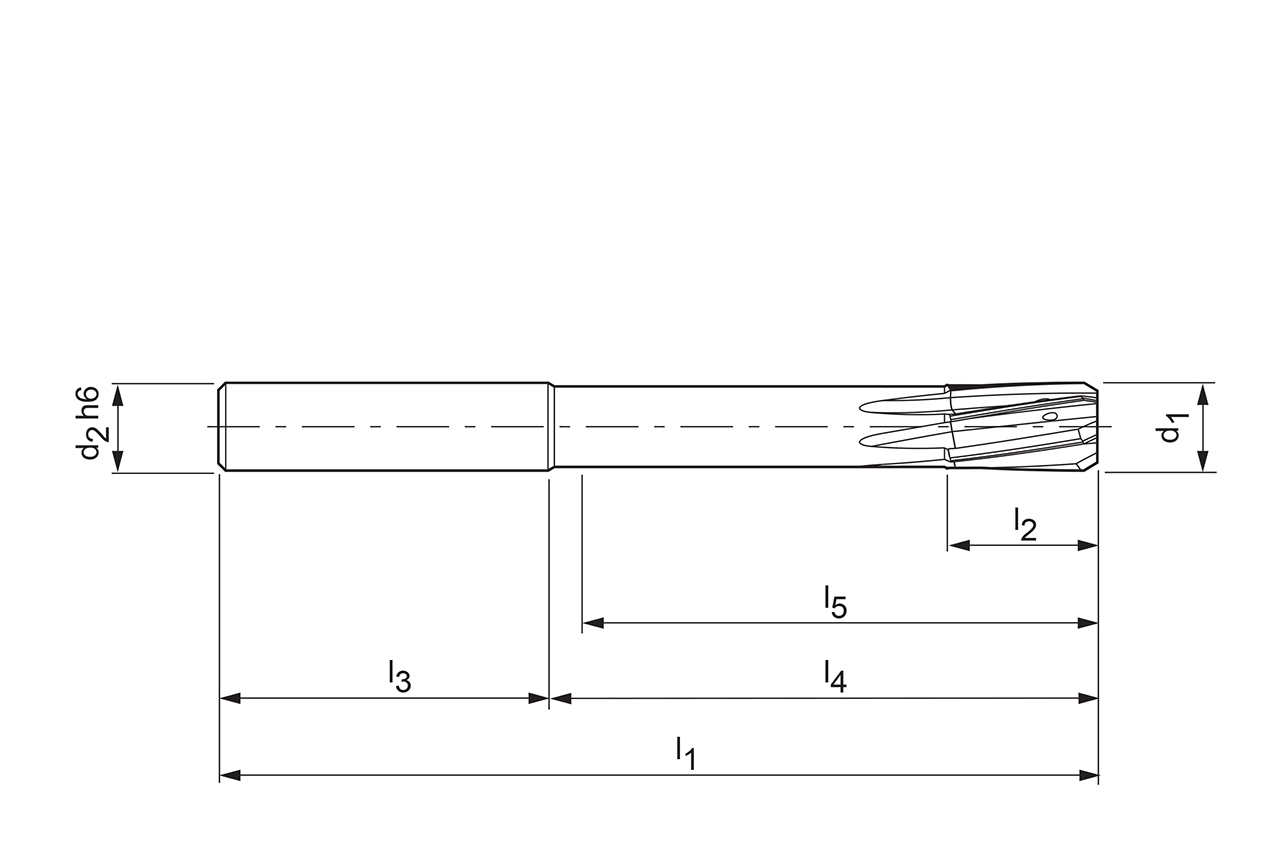

  • Technical drawing FixReam

Durchmesser d1 (mm)

10.0

Ihr Stückpreis

*Login erforderlich

Bestellnummer

30570784

Menge

Ihrem Warenkorb hinzugefügt

Produktbeschreibung

The FXR series of high-performance reamers made of solid carbide cover a wide range of applications. Depending on the diameter, the high-performance FixReam reamers have between four and eight cutting edges with internal cooling and thus achieve correspondingly high feed rates.

Materialeignung

P
P1
P2
P3
P4
bestens geeignet
P5
P6
bestens geeignet
M
M1
bestens geeignet
M2
bestens geeignet
M3
bestens geeignet
K
K1
K2
K3
N
N1
N2
N3
N4
S
S1
S2
S3
S4
S5
H
H1
H2
H3

Technische Daten

Trennstelle
Zylinderschaft
Trennstellengröße
10
Bohrungsart
Durchgangsbohrung
d1
10   mm
d2
10   mm
l1
120   mm
l2
20   mm
l3
40   mm
l4
80   mm
l5
76   mm
Toleranz
H7
Schneidstoff
HP145
Anzahl Schneiden (z)
6
Materialgruppe
XN
Spezifikation
FXR510Ø10.000H7MF1M-HP145

Downloads

3D Hüllkontur in stp
30570784_607444018-000-00-E43.STP
Technische Zeichnung in dxf
30570784_607991407-000-00-ED1.DXF
Technische Zeichnung in tif
30570784_607991407-000-00-ED1.TIF
Cutting data recommendations
30570784_FixReam5_EN.pdf
