FixReam | FXR505

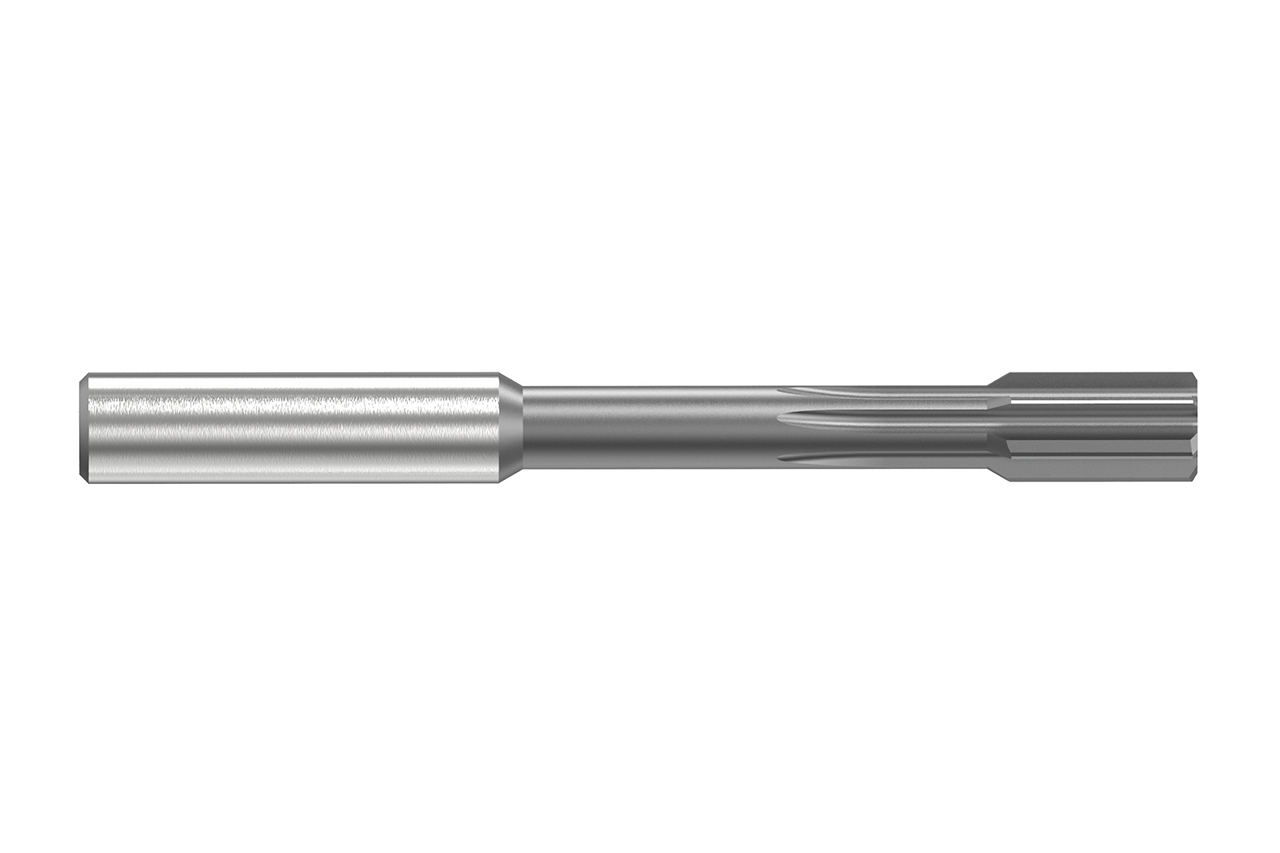

  • Product image FixReam

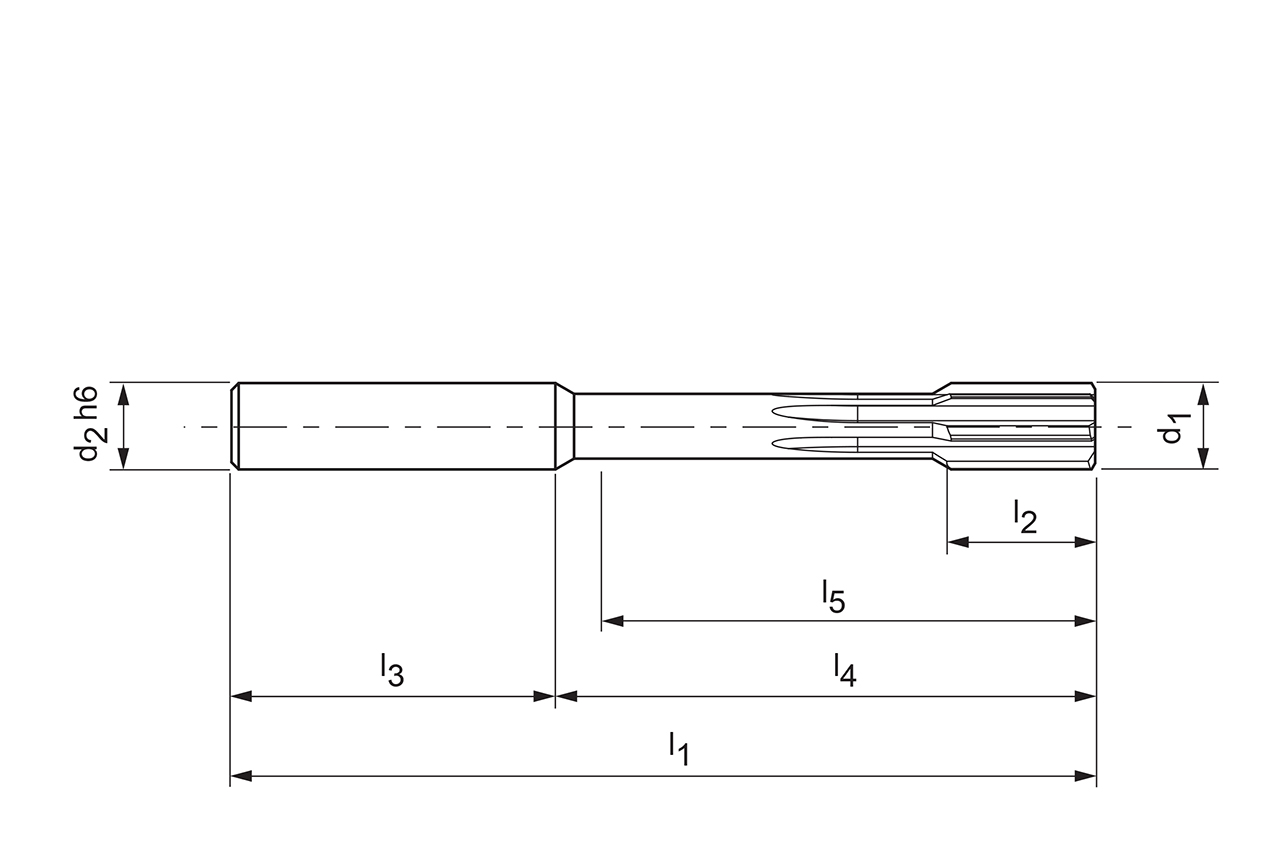

  • Produktzeichnung FixReam

Durchmesser d1 (mm)

16.0

Ihr Stückpreis

*Login erforderlich

Bestellnummer

30570767

Menge

Ihrem Warenkorb hinzugefügt

Produktbeschreibung

The FXR series of high-performance reamers made of solid carbide cover a wide range of applications. Depending on the diameter, the high-performance FixReam reamers have between four and eight cutting edges with internal cooling and thus achieve correspondingly high feed rates.

Materialeignung

Technische Daten

Trennstelle
Zylinderschaft
Trennstellengröße
0160
Bohrungsart
Grundbohrung
d1
16   mm
d2
16   mm
l1
150   mm
l2
25   mm
l3
48   mm
l4
102   mm
l5
95   mm
Toleranz
H7
Schneidstoff
HP145
Kühlmittelaustritt
innere Kühlmittelzufuhr
Anzahl Schneiden (z)
6
Materialgruppe
XN
Spezifikation
FXR505Ø16.000H7MV0A-HP145

Downloads

Technische Zeichnung in pdf
30570767_607444680-000-00-ED1.PDF
Technische Zeichnung in dxf
30570767_607444680-000-00-ED1.DXF
Technische Zeichnung in tif
30570767_607444680-000-00-ED1.TIF
3D Hüllkontur in stp
30570767_607443899-000-00-E43.STP
Cutting data recommendations
30570767_FixReam5_EN.pdf
