FixReam | FXR505

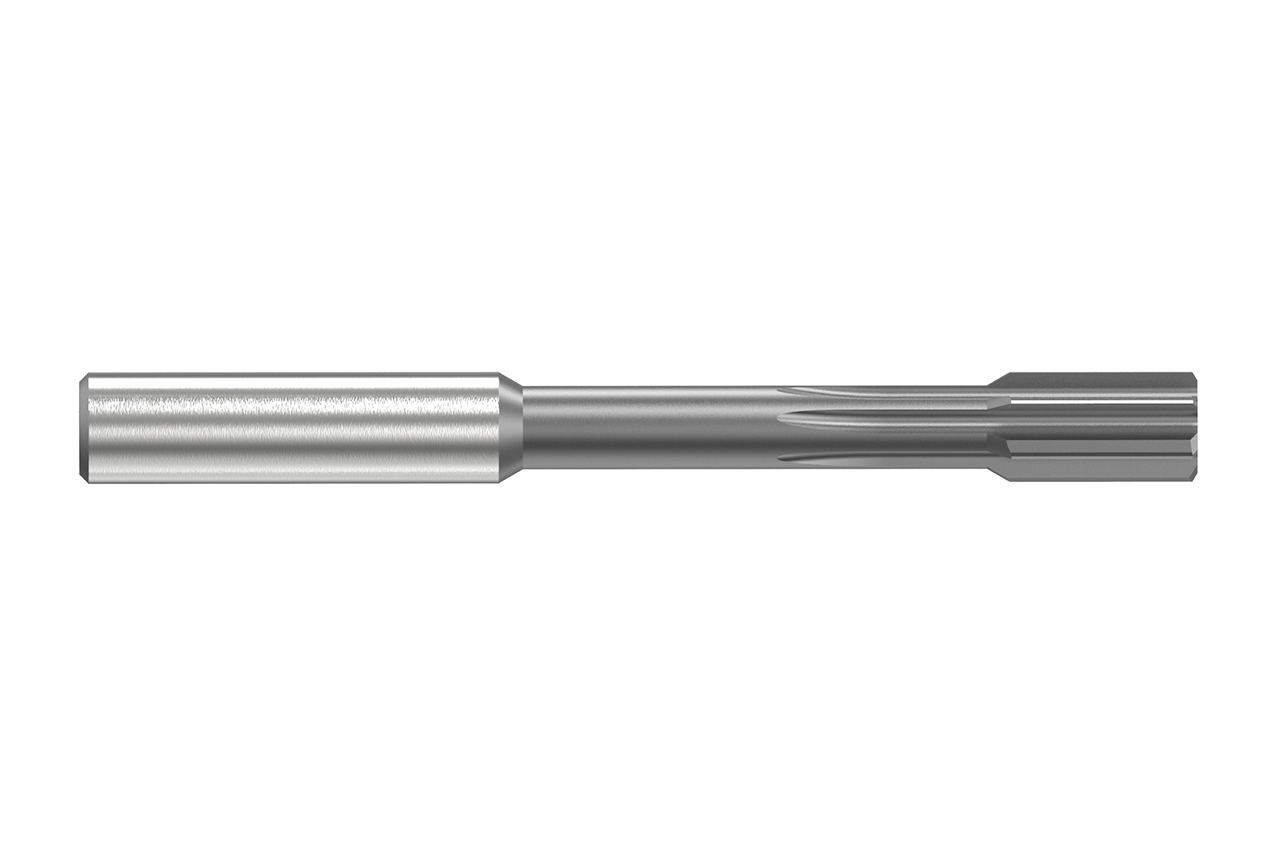

  • Product image FixReam

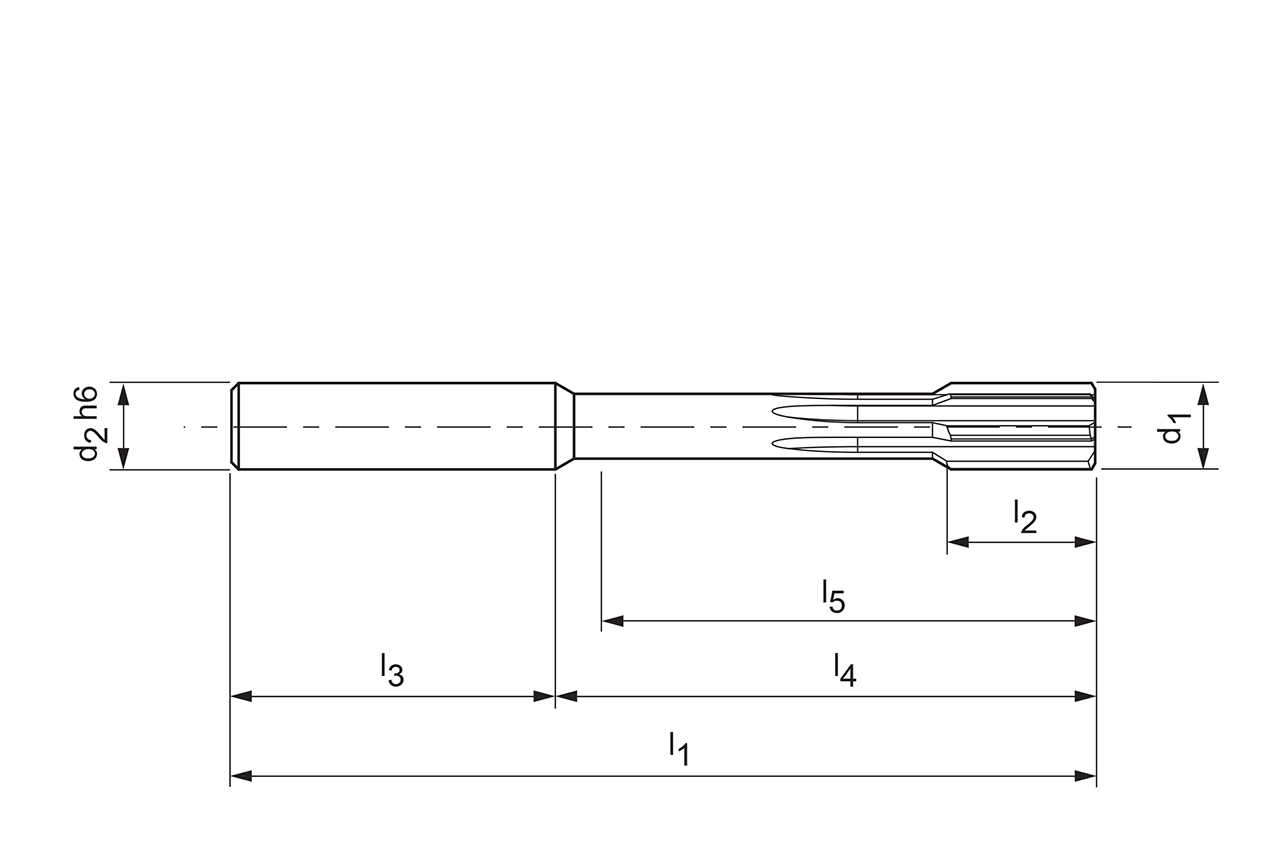

  • Technical drawing FixReam

Diameter d1 (mm)

13.0

Your unit price

*Login required

Article

30570764

Quantity

Added to Your Shopping Cart

Product description

The FXR series of high-performance reamers made of solid carbide cover a wide range of applications. Depending on the diameter, the high-performance FixReam reamers have between four and eight cutting edges with internal cooling and thus achieve correspondingly high feed rates.

Material suitability

Technical specifications

Connection type
Cylindrical shank
Trennstellengröße
0140
Bohrungsart
Grundbohrung
d1
13   mm
d2
14   mm
l1
130   mm
l2
22   mm
l3
45   mm
l4
85   mm
l5
78   mm
Toleranz
H7
Schneidstoff
HP145
Kühlmittelaustritt
innere Kühlmittelzufuhr
Anzahl Schneiden (z)
6
Materialgruppe
XN
Spezifikation
FXR505Ø13.000H7MV0A-HP145

Downloads

Technische Zeichnung in pdf
30570764_607444689-000-00-ED1.PDF
Technische Zeichnung in dxf
30570764_607444689-000-00-ED1.DXF
Technische Zeichnung in tif
30570764_607444689-000-00-ED1.TIF
3D Hüllkontur in stp
30570764_607443897-000-00-E43.STP
Cutting data recommendations
30570764_FixReam5_EN.pdf
