FixReam | FXR505

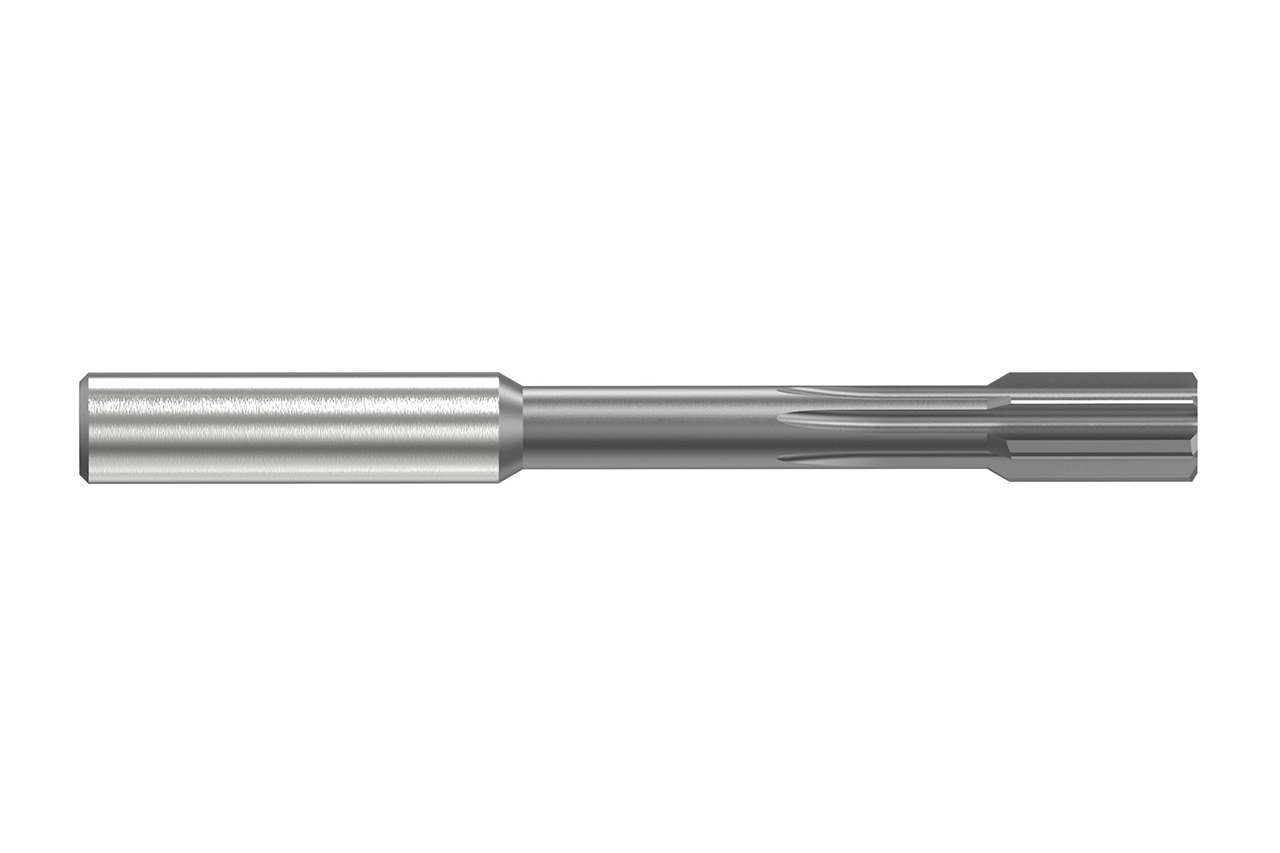

  • Product image FixReam

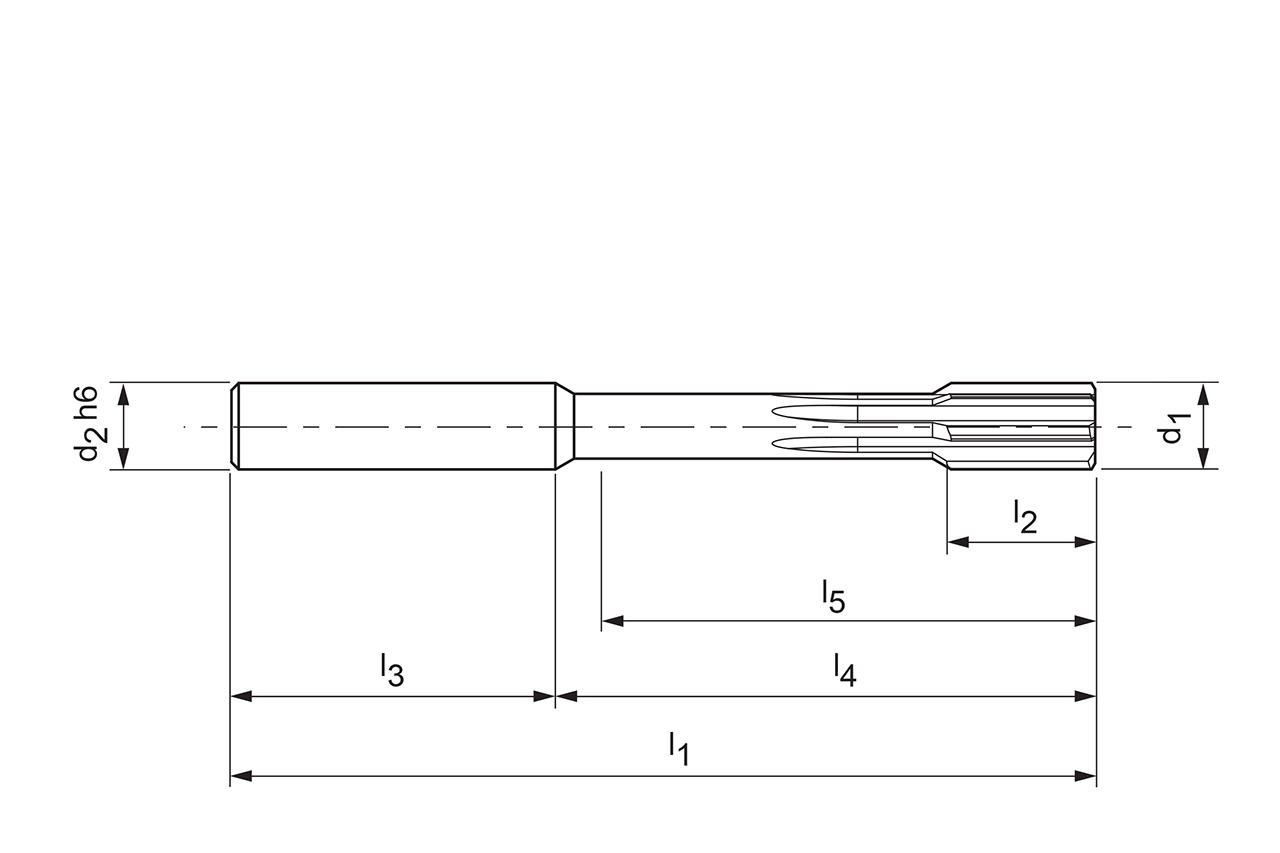

  • Technical drawing FixReam

Diameter d1 (mm)

11.0

Your unit price

*Login required

Article

30570761

Quantity

Added to Your Shopping Cart

Product description

The FXR series of high-performance reamers made of solid carbide cover a wide range of applications. Depending on the diameter, the high-performance FixReam reamers have between four and eight cutting edges with internal cooling and thus achieve correspondingly high feed rates.

Material suitability

Technical specifications

Connection type
Cylindrical shank
Connection size
12
Type of bore
Blind bore
d1
11   mm
d3
12   mm
l1
120   mm
l2
20   mm
l3
45   mm
l4
75   mm
l5
68   mm
Tolerance
H7
Cutting material
HP145
Anzahl Schneiden (z)
6
Materialgruppe
XN

Downloads

Technische Zeichnung in pdf
30570761_607444701-000-00-ED1.PDF
Technische Zeichnung in dxf
30570761_607444701-000-00-ED1.DXF
Technische Zeichnung in tif
30570761_607444701-000-00-ED1.TIF
3D Hüllkontur in stp
30570761_607443895-000-00-E43.STP
