FixReam | FXR505

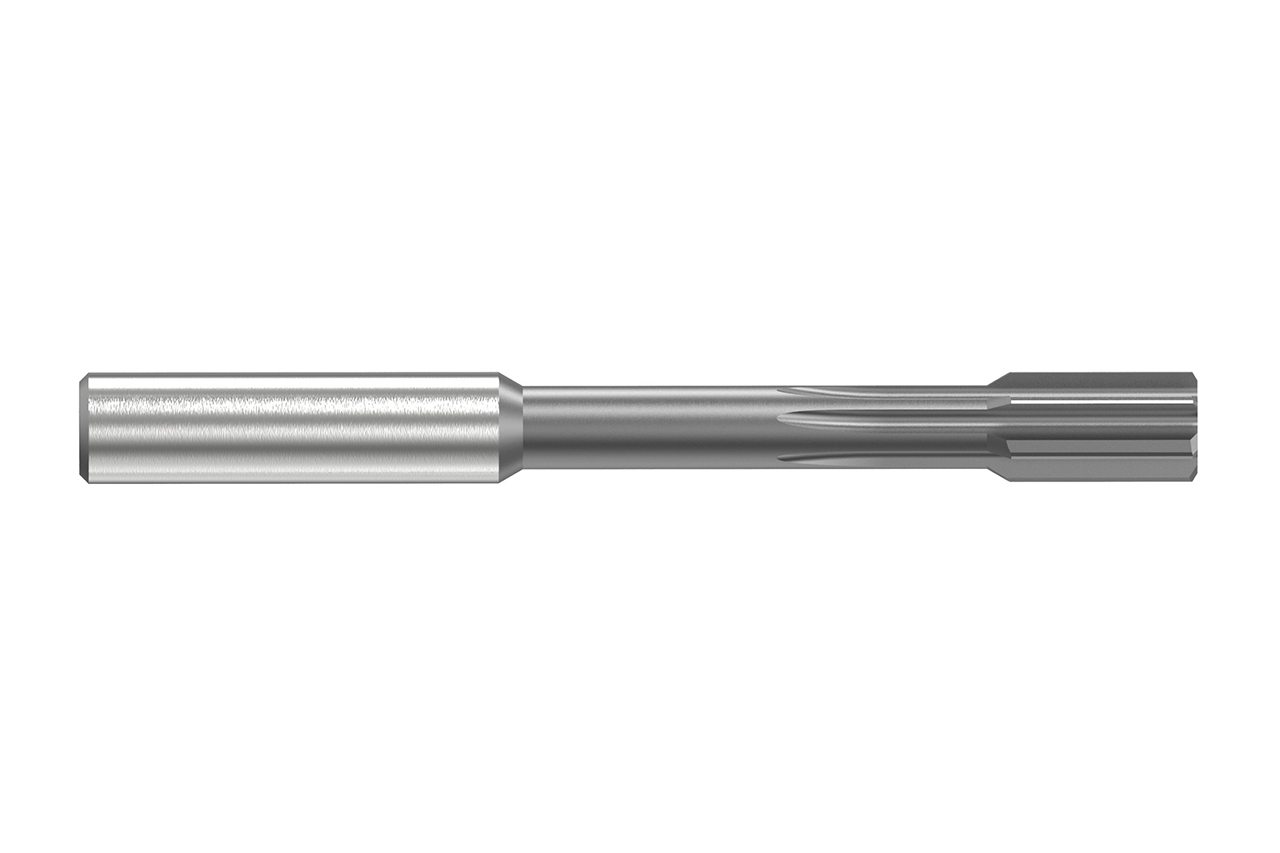

  • Product image FixReam

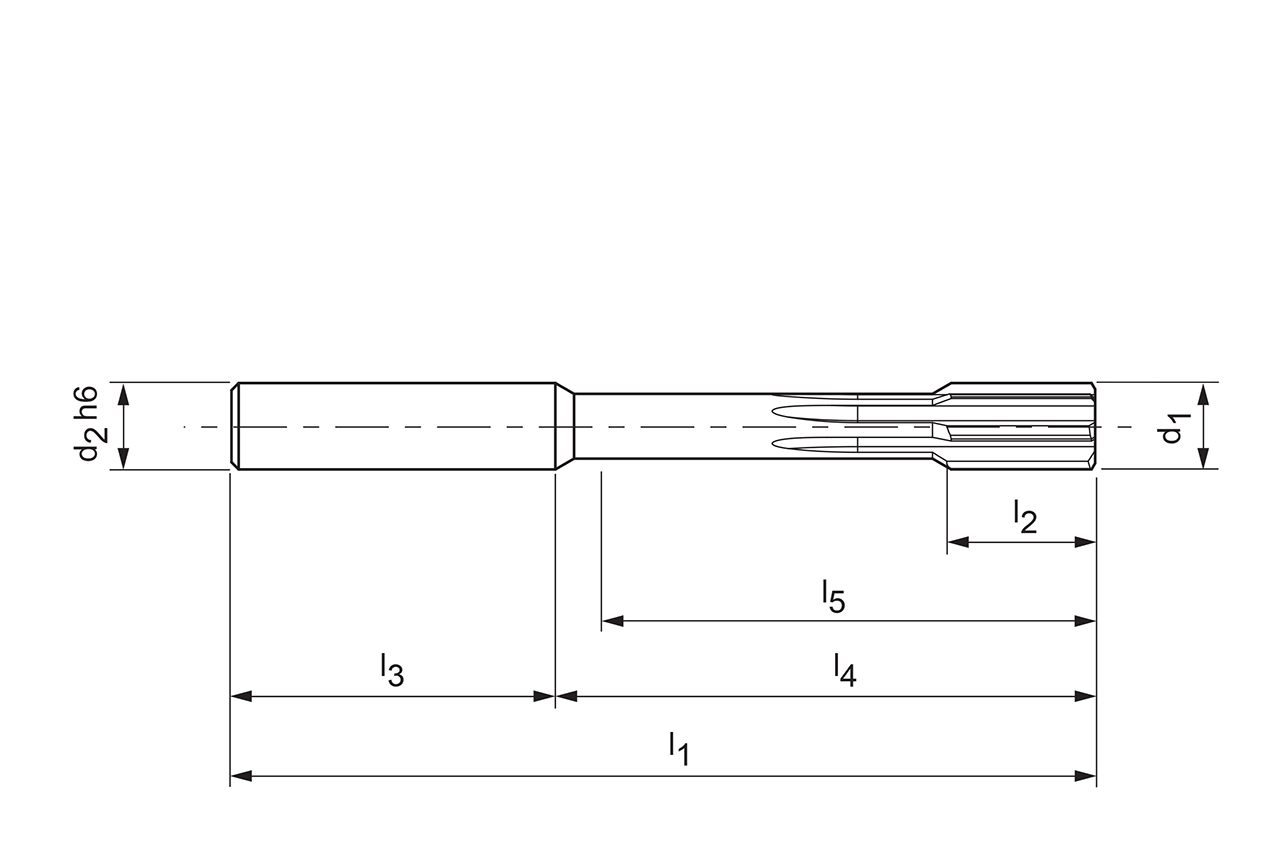

  • Technical drawing FixReam

Diameter d1 (mm)

9.5

Your unit price

*Login required

Article

30570758

Quantity

Added to Your Shopping Cart

Product description

The FXR series of high-performance reamers made of solid carbide cover a wide range of applications. Depending on the diameter, the high-performance FixReam reamers have between four and eight cutting edges with internal cooling and thus achieve correspondingly high feed rates.

Material suitability

Technical specifications

Connection type
Cylindrical shank
Trennstellengröße
10
Bohrungsart
Grundbohrung
d1
9.5   mm
d2
10   mm
l1
120   mm
l2
20   mm
l3
40   mm
l4
80   mm
l5
74   mm
Toleranz
H7
Schneidstoff
HP145
Kühlmittelaustritt
innere Kühlmittelzufuhr
Anzahl Schneiden (z)
6
Materialgruppe
XN
Spezifikation
FXR505Ø9.500H7MV0A-HP145

Downloads

Technische Zeichnung in pdf
30570758_607444663-000-00-ED1.PDF
Technische Zeichnung in dxf
30570758_607444663-000-00-ED1.DXF
Technische Zeichnung in tif
30570758_607444663-000-00-ED1.TIF
3D Hüllkontur in stp
30570758_607443892-000-00-E43.STP
DIN 4000 XML in xml
30570758_DIN4000-126-1.XML
Cutting data recommendations
30570758_FixReam5_EN.pdf
