FixReam | FXR505

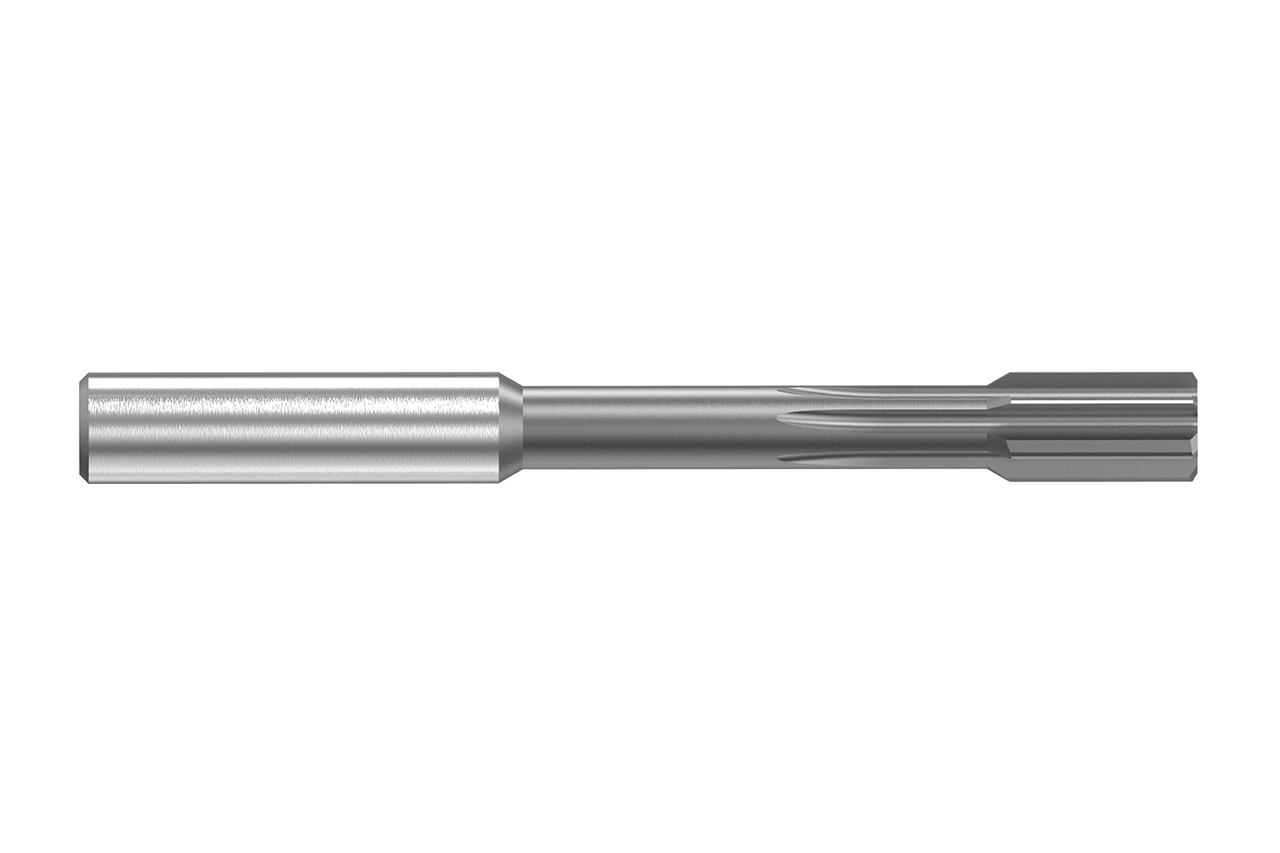

  • Product image FixReam
  • Technical drawing FixReam

Diameter d1 (mm)

8.5

Your unit price

*Login required

Article

30570756

Quantity

Added to Your Shopping Cart

Product description

The FXR series of high-performance reamers made of solid carbide cover a wide range of applications. Depending on the diameter, the high-performance FixReam reamers have between four and eight cutting edges with internal cooling and thus achieve correspondingly high feed rates.

Material suitability

Technical specifications

Connection type
Cylindrical shank
HFS connection size
10
Type of bore
Blind bore
d1
8.5   mm
d3
10   mm
l1
100   mm
l2
20   mm
l3
40   mm
l4
60   mm
l5
54   mm
Tolerance
H7
Cutting material
HP145
Number of cutting edges (z)
6
Material group
XN

Downloads

Technical drawing in pdf
30570756_607444665-000-00-ED1.PDF
Technical drawing in dxf
30570756_607444665-000-00-ED1.DXF
Technical drawing in tif
30570756_607444665-000-00-ED1.TIF
3D envelope in stp
30570756_607443890-000-00-E43.STP
