FixReam | FXR510

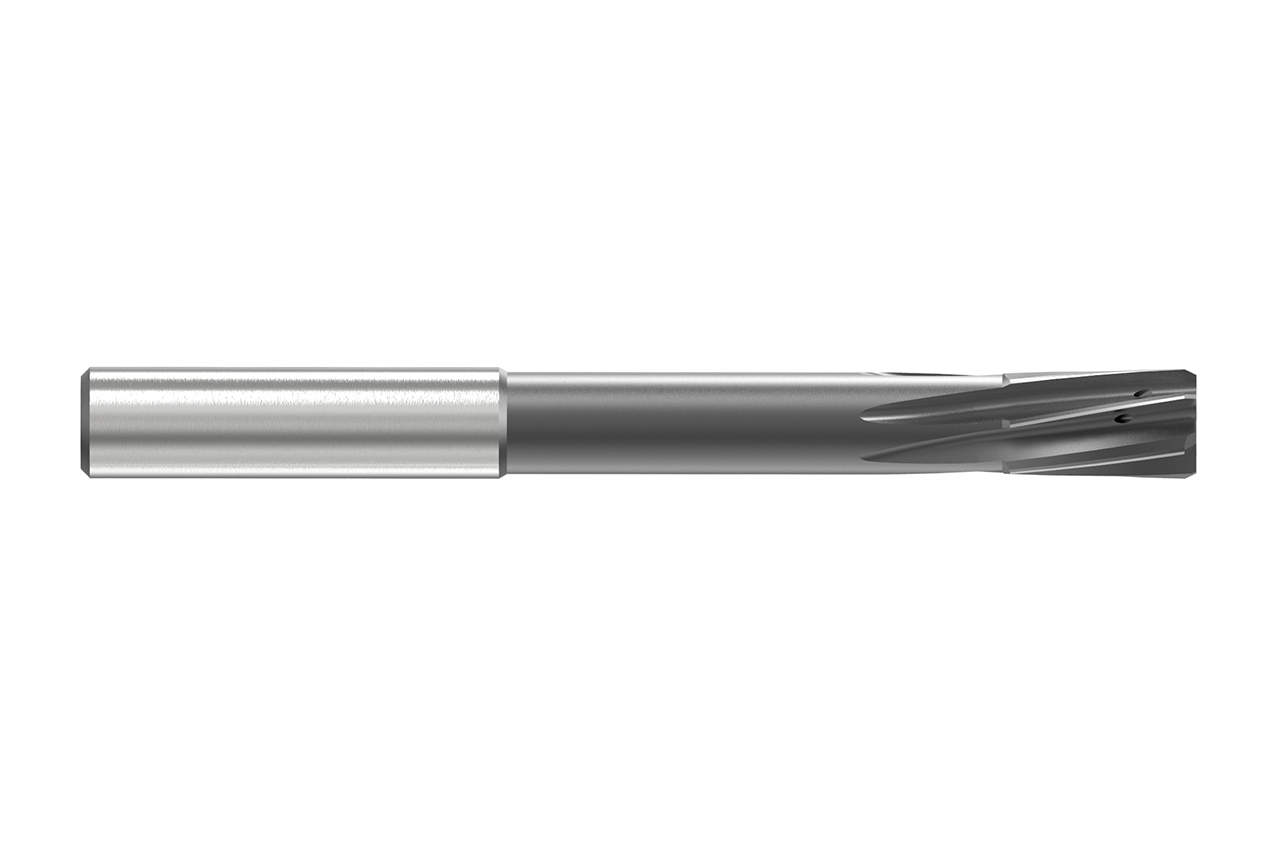

  • Product image FixReam

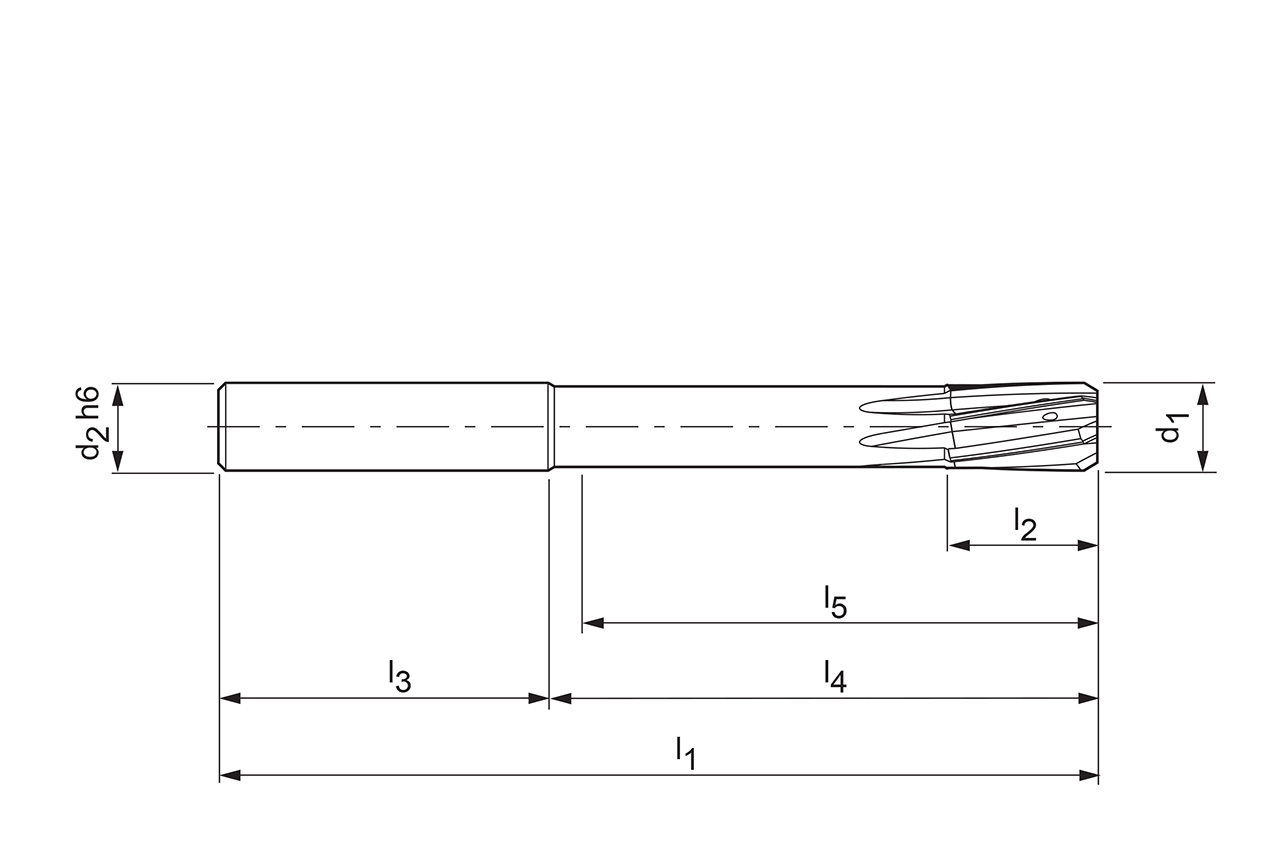

  • Technical drawing FixReam

Durchmesser d1 (mm)

11.5

Your unit price

*Login erforderlich

Article

30570737

Quantity

Added to Your Shopping Cart

Product description

The FXR series of high-performance reamers made of solid carbide cover a wide range of applications. Depending on the diameter, the high-performance FixReam reamers have between four and eight cutting edges with internal cooling and thus achieve correspondingly high feed rates.

Material suitability

Technical specifications

Trennstelle
Zylinderschaft
Trennstellengröße
12
Bohrungsart
Durchgangsbohrung
d1
11.5   mm
d2
12   mm
l1
120   mm
l2
20   mm
l3
45   mm
l4
75   mm
l5
71   mm
Toleranz
H7
Schneidstoff
HP145
Kühlmittelaustritt
innere Kühlmittelzufuhr
Anzahl Schneiden (z)
6
Materialgruppe
XN
Spezifikation
FXR510Ø11.500H7MG1M-HP145

Downloads

Technische Zeichnung in pdf
30570737_607444660-000-00-ED1.PDF
Technische Zeichnung in dxf
30570737_607444660-000-00-ED1.DXF
Technische Zeichnung in tif
30570737_607444660-000-00-ED1.TIF
3D Hüllkontur in stp
30570737_607443835-000-00-E43.STP
Cutting data recommendations
30570737_FixReam5_EN.pdf
