FixReam | FXR510

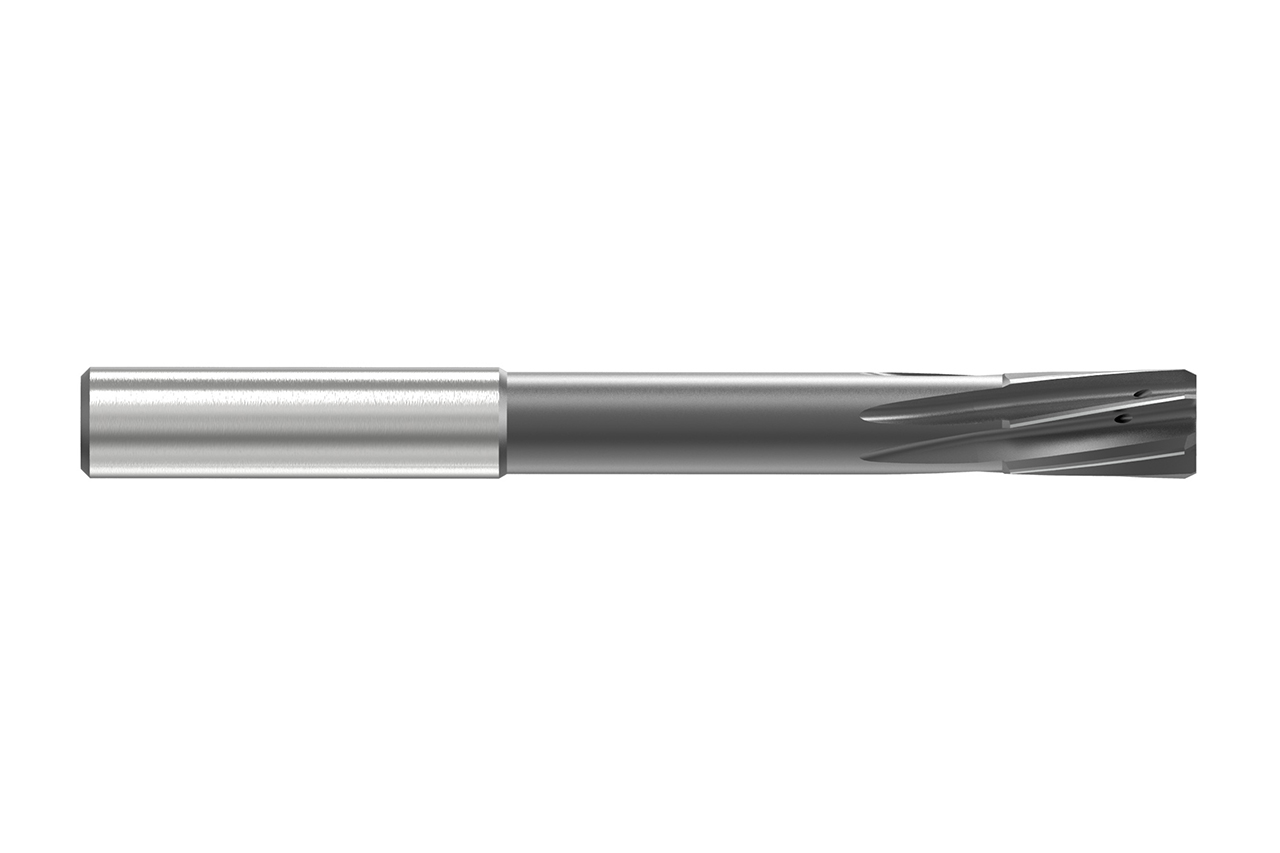

  • Product image FixReam

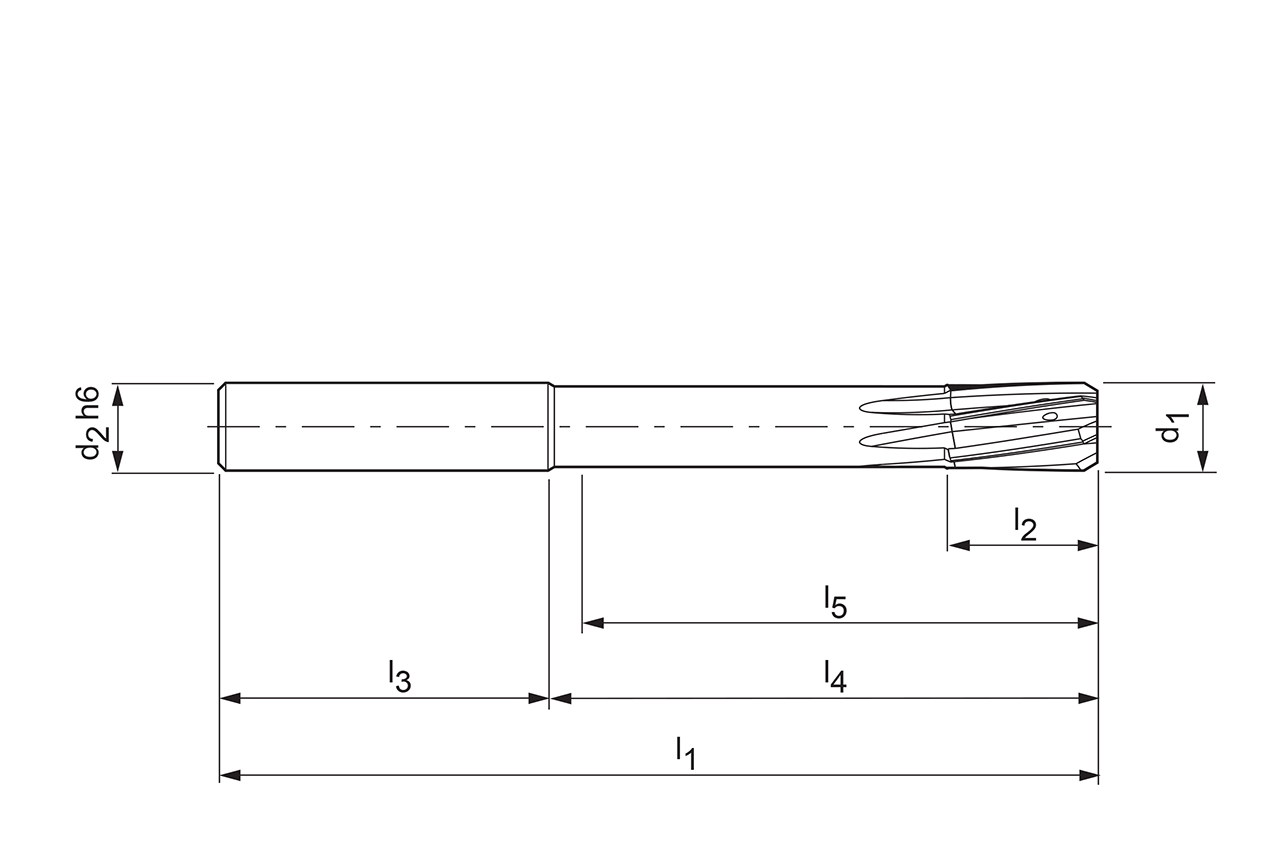

  • Technical drawing FixReam

Diameter d1 (mm)

10.0

Your unit price

*Login required

Article

30570734

Quantity

Added to Your Shopping Cart

Product description

The FXR series of high-performance reamers made of solid carbide cover a wide range of applications. Depending on the diameter, the high-performance FixReam reamers have between four and eight cutting edges with internal cooling and thus achieve correspondingly high feed rates.

Material suitability

Technical specifications

Connection type
Cylindrical shank
Trennstellengröße
10
Bohrungsart
Durchgangsbohrung
d1
10   mm
d2
10   mm
l1
120   mm
l2
20   mm
l3
40   mm
l4
80   mm
l5
76   mm
Toleranz
H7
Schneidstoff
HP145
Kühlmittelaustritt
innere Kühlmittelzufuhr
Anzahl Schneiden (z)
6
Materialgruppe
XN
Spezifikation
FXR510Ø10.000H7MG1M-HP145

Downloads

Technische Zeichnung in pdf
30570734_607444661-000-00-ED1.PDF
Technische Zeichnung in dxf
30570734_607444661-000-00-ED1.DXF
Technische Zeichnung in tif
30570734_607444661-000-00-ED1.TIF
3D Hüllkontur in stp
30570734_607443833-000-00-E43.STP
Cutting data recommendations
30570734_FixReam5_EN.pdf
