FixReam | FXR505

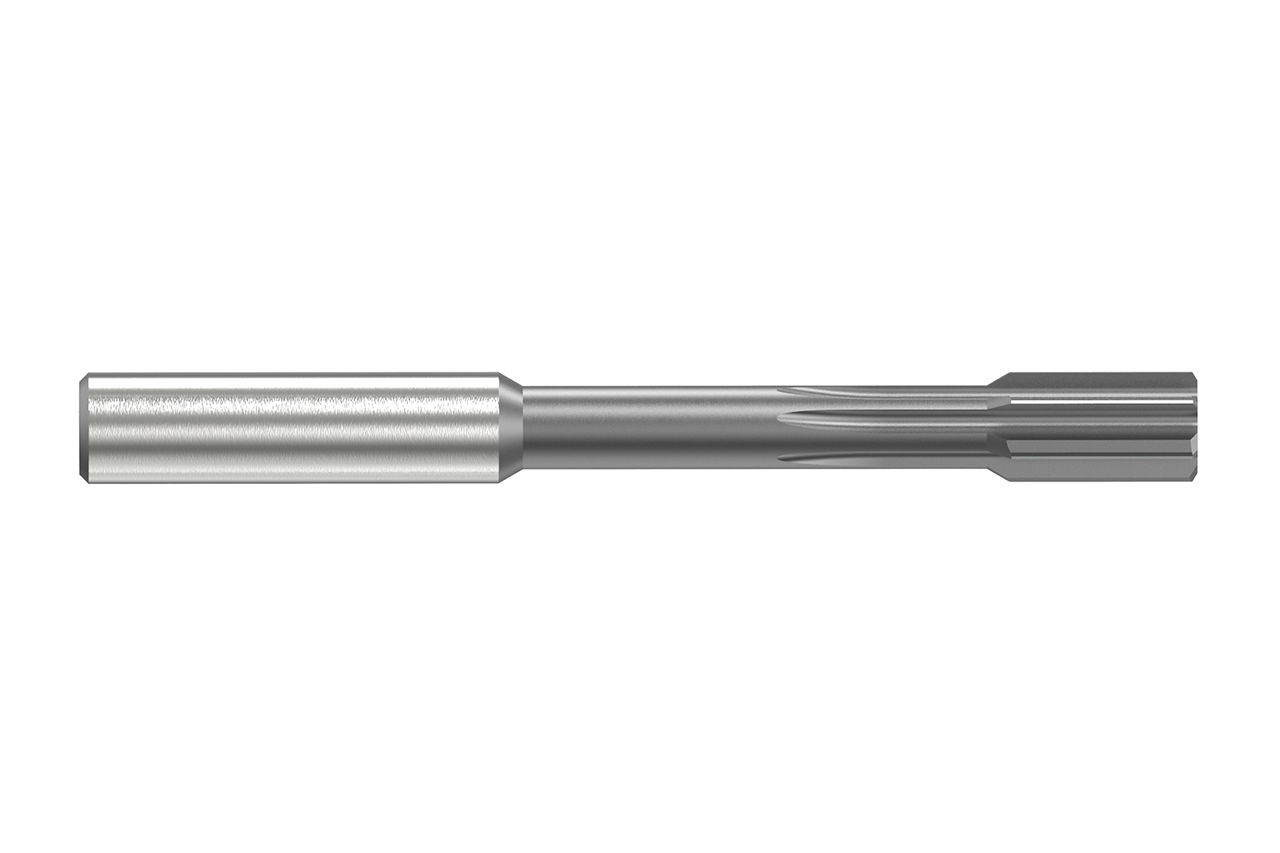

  • Product image FixReam
  • Technical drawing FixReam

Diameter d1 (mm)

20.0

Your unit price

*Login required

Article

30570718

Quantity

Added to Your Shopping Cart

Product description

The FXR series of high-performance reamers made of solid carbide cover a wide range of applications. Depending on the diameter, the high-performance FixReam reamers have between four and eight cutting edges with internal cooling and thus achieve correspondingly high feed rates.

Material suitability

Technical specifications

Connection type
Cylindrical shank
Connection size
20
Type of bore
Blind bore
d1
20   mm
d3
20   mm
l1
150   mm
l2
25   mm
l3
50   mm
l4
100   mm
l5
92   mm
Tolerance
H7
Cutting material
HU612
Cooling
internal cooling
Number of cutting edges (z)
6
Materialgruppe
XN
Spezifikation
FXR505Ø20.000H7MV0A-HU612

Downloads

3D Hüllkontur in stp
30570718_607412388-000-00-E43.STP
Technische Zeichnung in dxf
30570718_607681273-000-00-ED1.DXF
Technische Zeichnung in tif
30570718_607681273-000-00-ED1.TIF
Cutting data recommendations
30570718_FixReam5_EN.pdf
