FixReam | FXR505

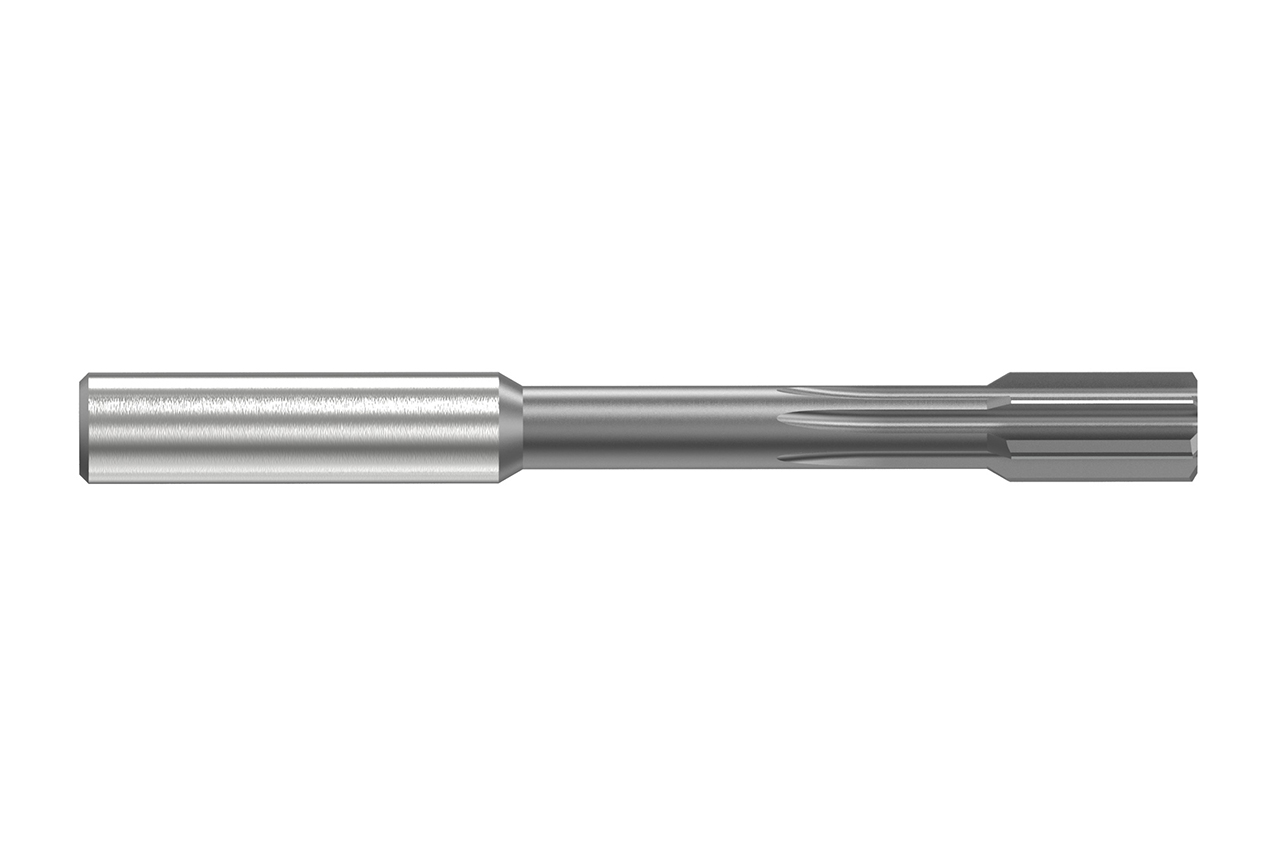

  • Product image FixReam

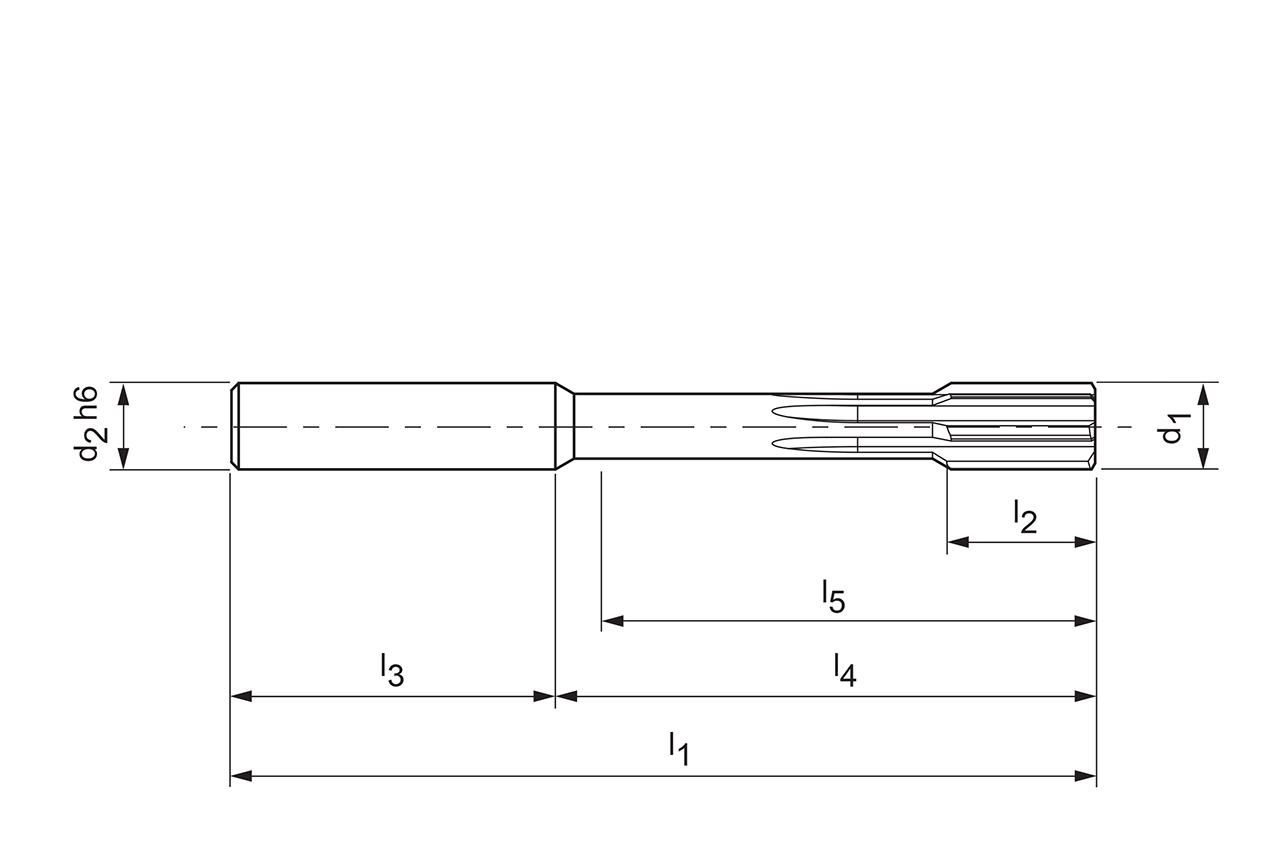

  • Technical drawing FixReam

Durchmesser d1 (mm)

8.5

Ihr Stückpreis

*Login erforderlich

Bestellnummer

30570703

Menge

Ihrem Warenkorb hinzugefügt

Produktbeschreibung

The FXR series of high-performance reamers made of solid carbide cover a wide range of applications. Depending on the diameter, the high-performance FixReam reamers have between four and eight cutting edges with internal cooling and thus achieve correspondingly high feed rates.

Materialeignung

Technische Daten

Trennstelle
Zylinderschaft
Connection size
10
Type of bore
Blind bore
d1
8.5   mm
d3
10   mm
l1
100   mm
l2
20   mm
l3
40   mm
l4
60   mm
l5
54   mm
Tolerance
H7
Cutting material
HU612
Cooling
internal cooling
Number of cutting edges (z)
6
Material group
XN
Specification
FXR505Ø8.500H7MV0A-HU612

Downloads

3D envelope in stp
30570703_607412361-000-00-E43.STP
Technical drawing in dxf
30570703_607990711-000-00-ED1.DXF
Technical drawing in tif
30570703_607990711-000-00-ED1.TIF
Cutting data recommendations
30570703_FixReam5_EN.pdf
