FixReam | FXR510

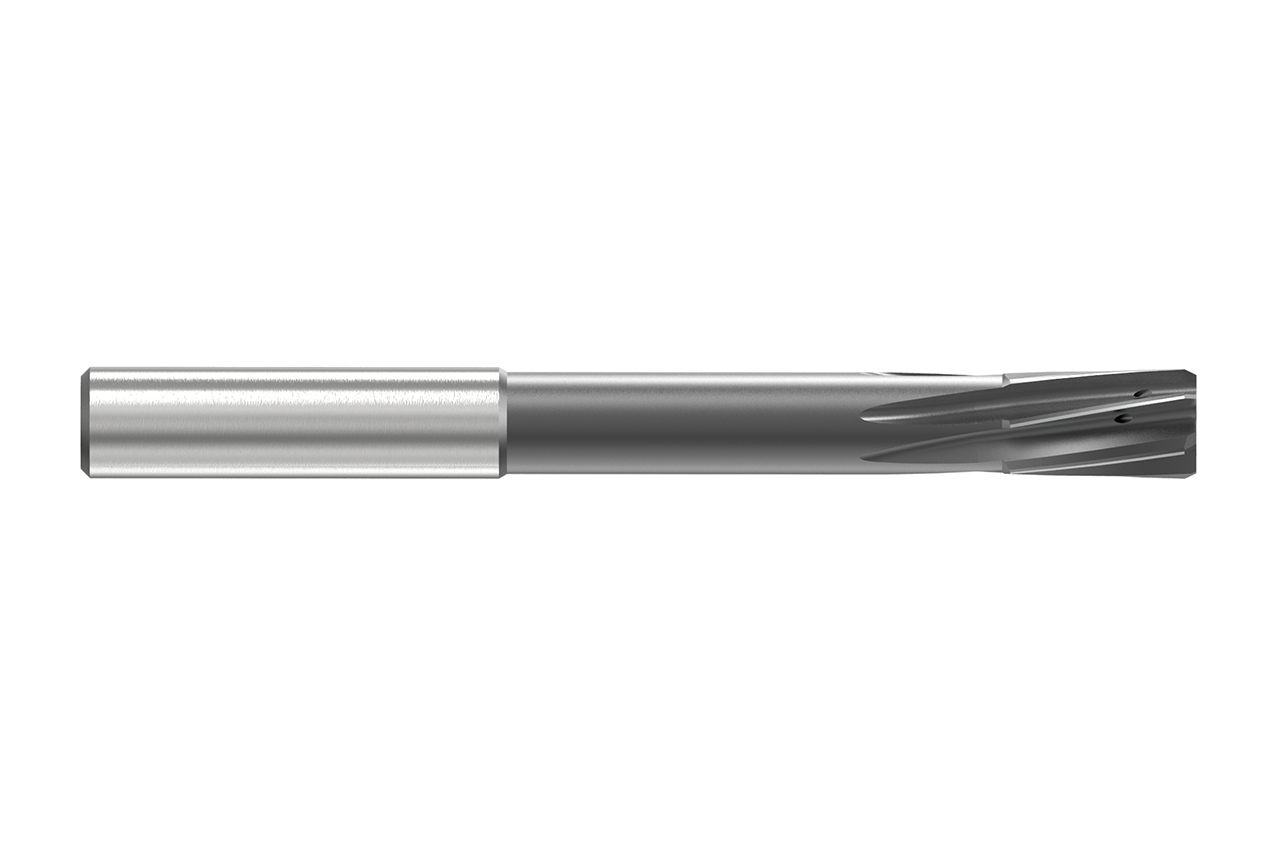

  • Product image FixReam

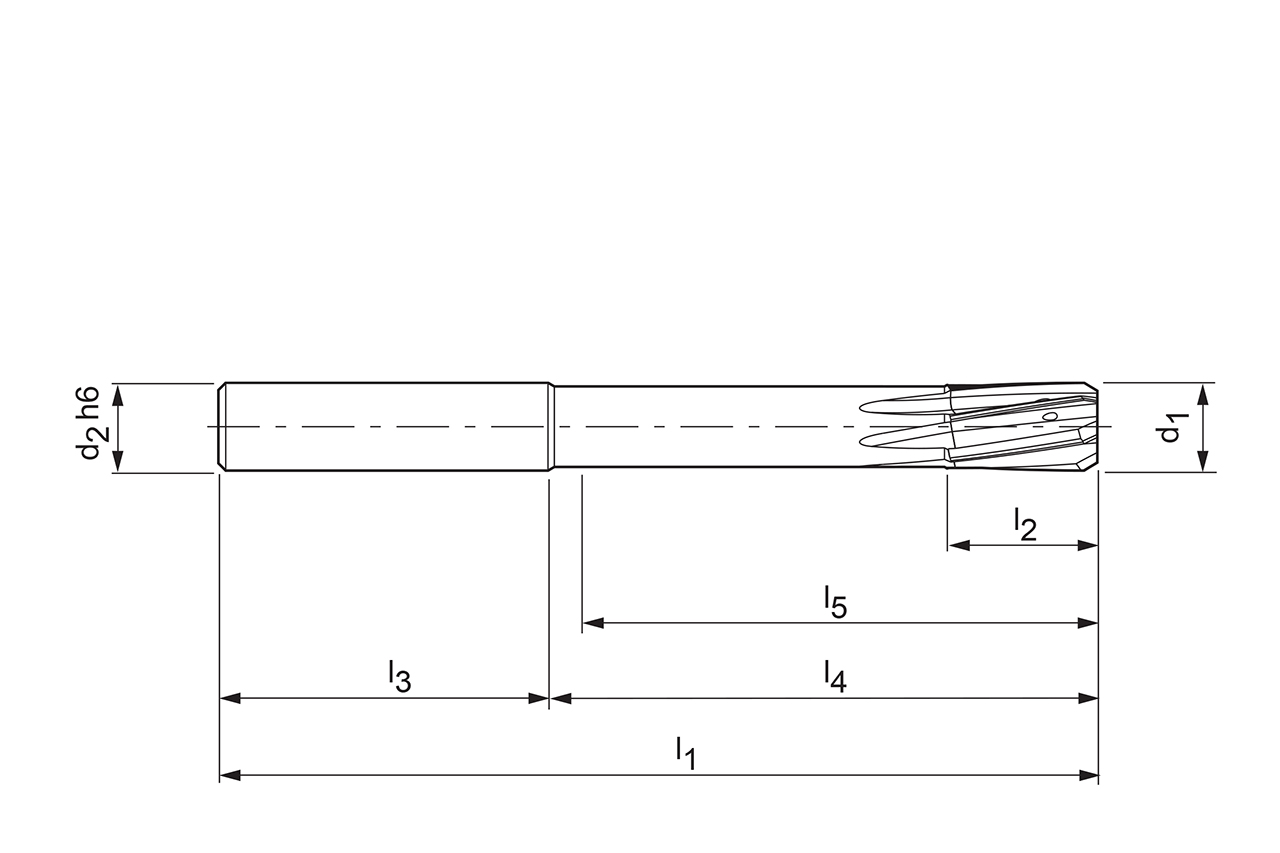

  • Technical drawing FixReam

Diameter d1 (mm)

20.0

Your unit price

*Login required

Article

30570690

Quantity

Added to Your Shopping Cart

Product description

The FXR series of high-performance reamers made of solid carbide cover a wide range of applications. Depending on the diameter, the high-performance FixReam reamers have between four and eight cutting edges with internal cooling and thus achieve correspondingly high feed rates.

Material suitability

Technical specifications

Trennstelle
Zylinderschaft
Trennstellengröße
20
Bohrungsart
Durchgangsbohrung
d1
20   mm
d2
20   mm
l1
150   mm
l2
25   mm
l3
50   mm
l4
100   mm
l5
95   mm
Toleranz
H7
Schneidstoff
HU612
Kühlmittelaustritt
innere Kühlmittelzufuhr
Anzahl Schneiden (z)
8
Materialgruppe
XN
Spezifikation
FXR510Ø20.000H7MG1M-HU612

Downloads

3D Hüllkontur in stp
30570690_607412199-000-00-E43.STP
DIN 4000 XML in xml
30570690_DIN4000-126-1.XML
Technische Zeichnung in dxf
30570690_607990724-000-00-ED1.DXF
Technische Zeichnung in tif
30570690_607990724-000-00-ED1.TIF
Cutting data recommendations
30570690_FixReam5_EN.pdf
