FixReam | FXR510

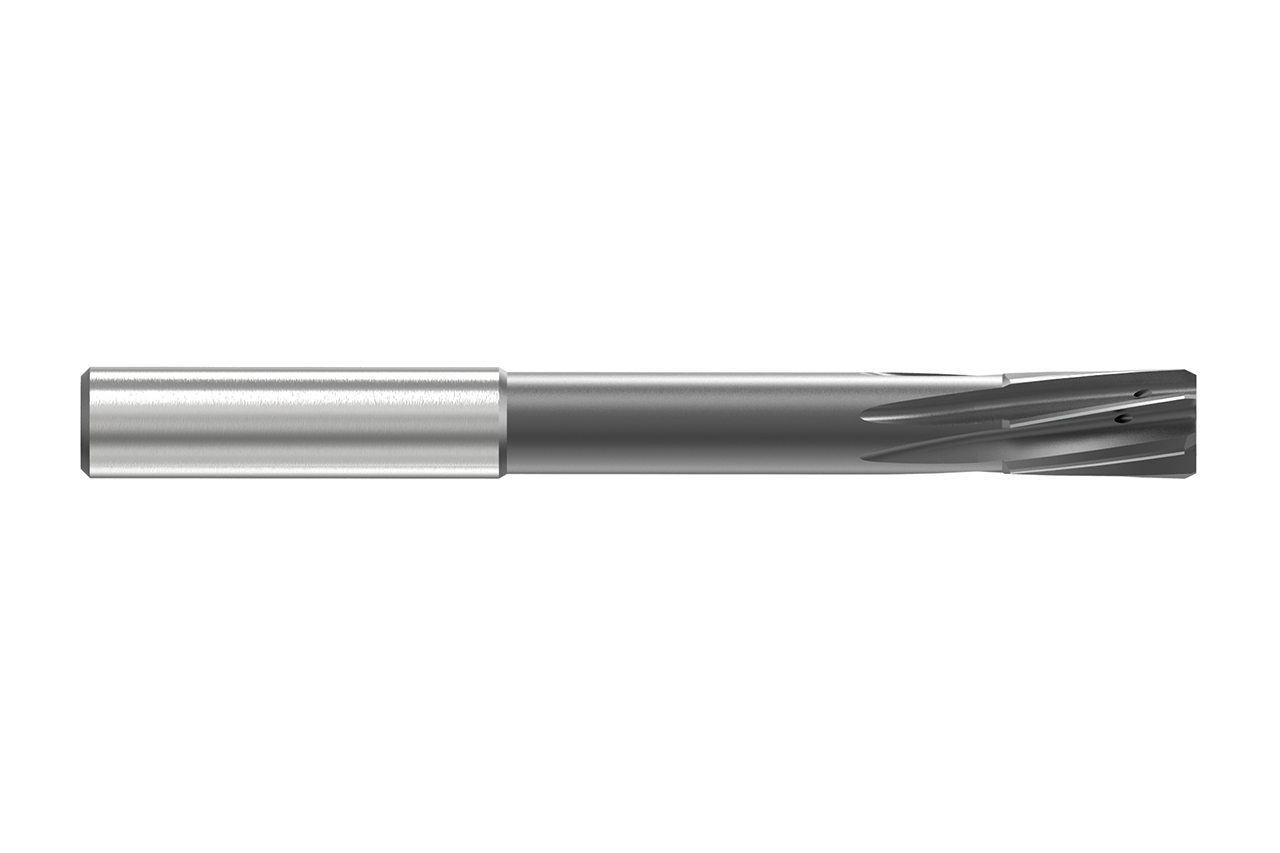

  • Product image FixReam

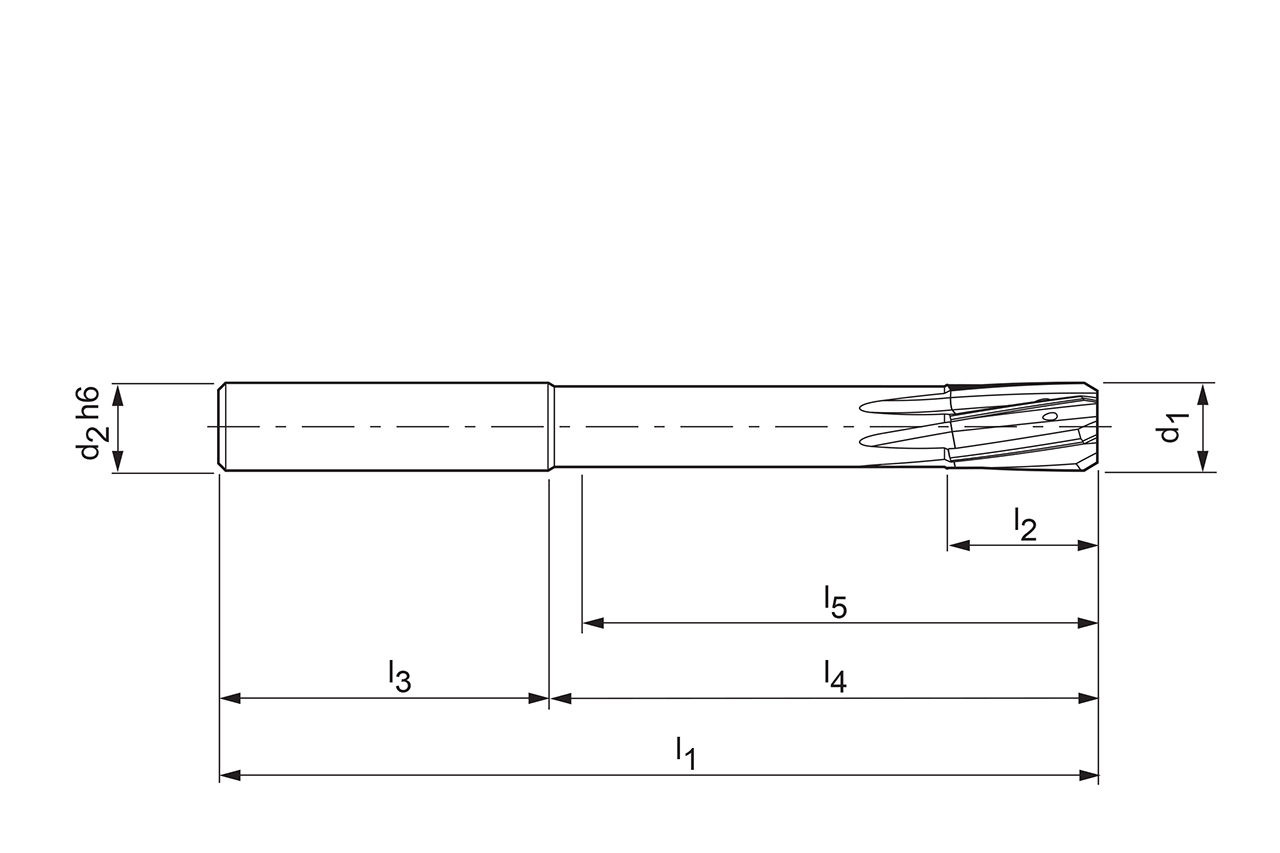

  • Technical drawing FixReam

Diameter d1 (mm)

14.0

Your unit price

*Login required

Article

30570684

Quantity

Added to Your Shopping Cart

Product description

The FXR series of high-performance reamers made of solid carbide cover a wide range of applications. Depending on the diameter, the high-performance FixReam reamers have between four and eight cutting edges with internal cooling and thus achieve correspondingly high feed rates.

Material suitability

Technical specifications

Connection type
Cylindrical shank
HFS connection size
14
Type of bore
Through bore
d1
14   mm
d3
14   mm
l1
130   mm
l2
22   mm
l3
45   mm
l4
85   mm
l5
80   mm
Tolerance
H7
Cutting material
HU612
Number of cutting edges (z)
6
Material group
XN

Downloads

3D envelope in stp
30570684_607412193-000-00-E43.STP
DIN 4000 XML in xml
30570684_DIN4000-126-1.XML
Technical drawing in dxf
30570684_607990717-000-00-ED1.DXF
Technical drawing in tif
30570684_607990717-000-00-ED1.TIF
