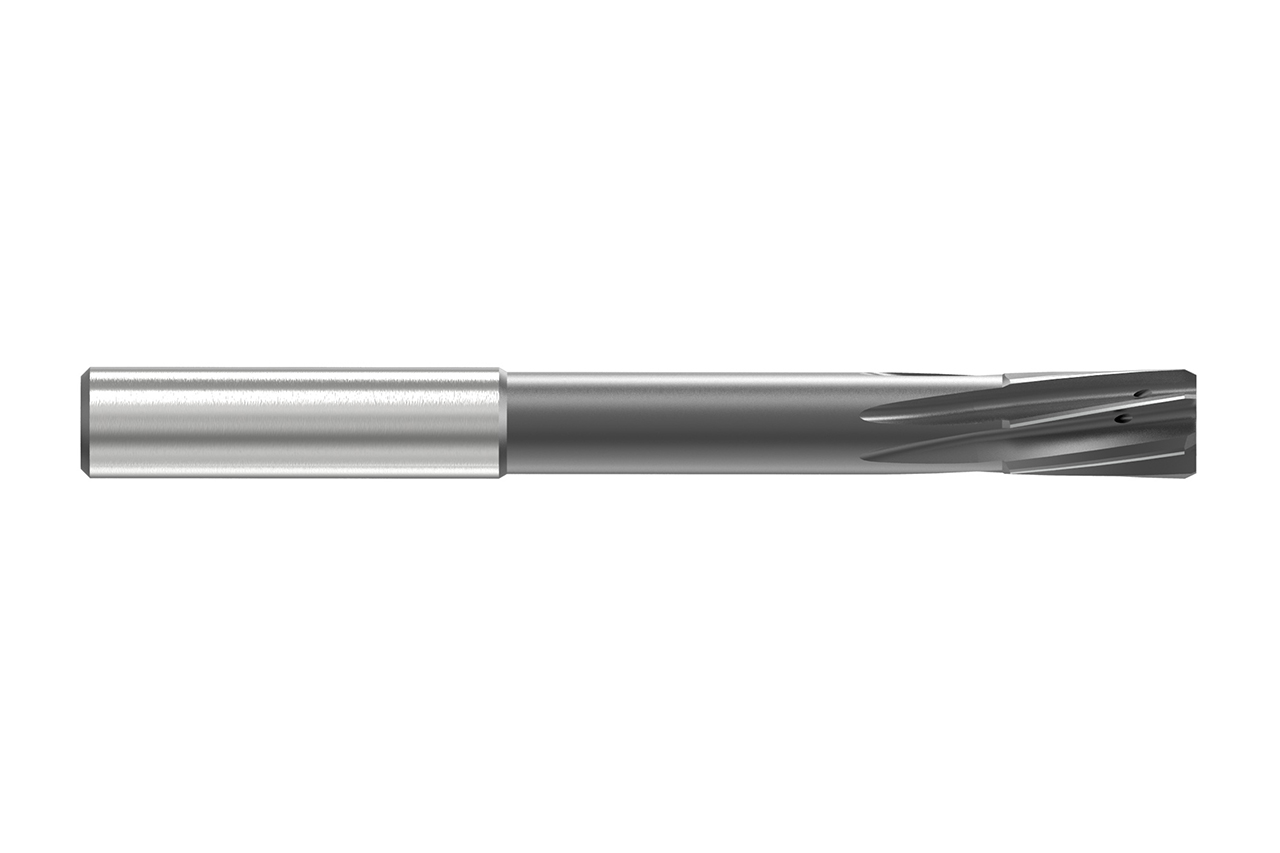

FixReam | FXR510
Diameter d1 (mm)
6.5
Your unit price
*Login requiredProduct description
The FXR series of high-performance reamers made of solid carbide cover a wide range of applications. Depending on the diameter, the high-performance FixReam reamers have between four and eight cutting edges with internal cooling and thus achieve correspondingly high feed rates.
Technical specifications
- Connection type
- Cylindrical shank
- HFS connection size
- 0080
- Type of bore
- Through bore

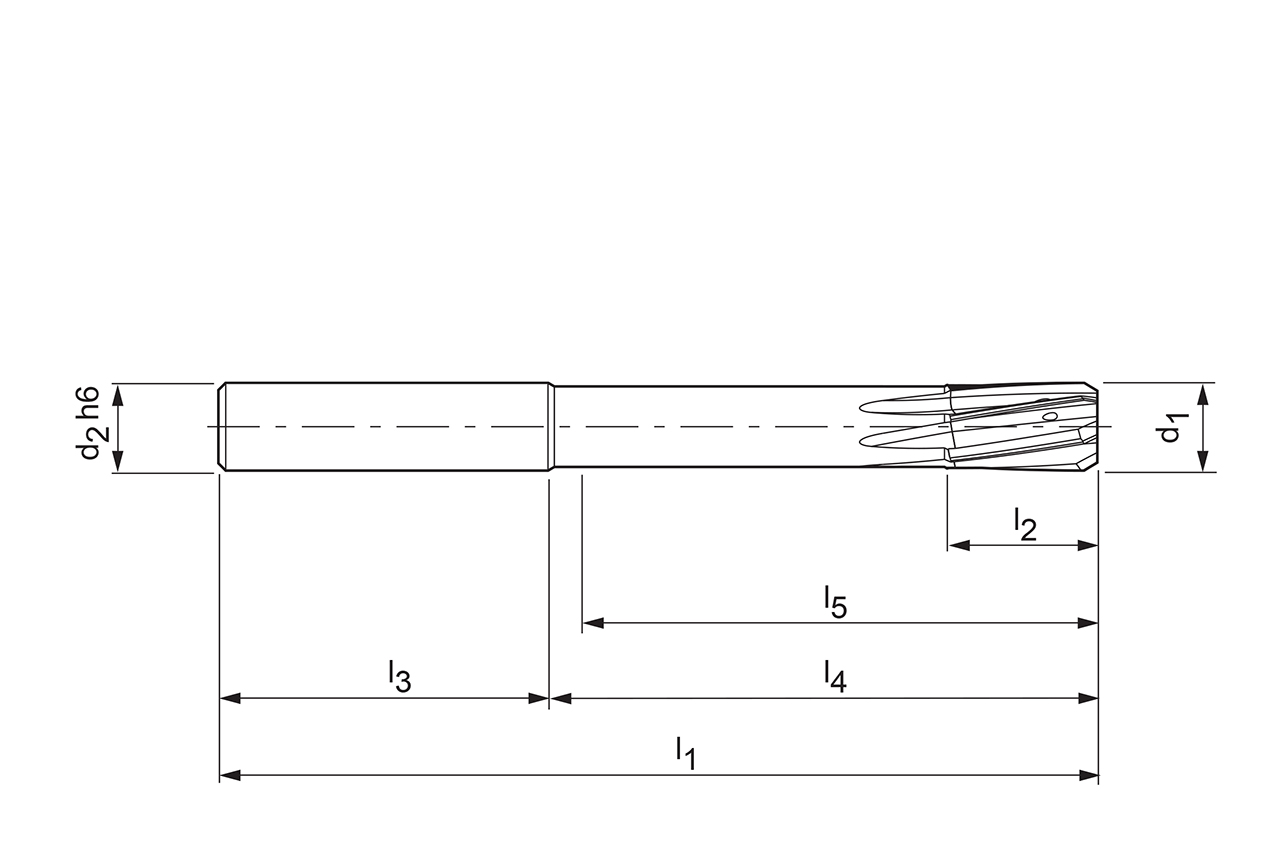

- d1
- 6.5 mm
- d3
- 8 mm
- l1
- 100 mm
- l2
- 16 mm
- l3
- 36 mm
- l4
- 64 mm
- l5
- 59 mm
- Tolerance
- H7
- Cutting material
- HU612
- Number of cutting edges (z)
- 6
- Material group
- XN
Downloads
- 3D envelope in stp
- 30570670_607412163-000-00-E43.STP
- DIN 4000 XML in xml
- 30570670_DIN4000-126-1.XML
- Technical drawing in dxf
- 30570670_607990732-000-00-ED1.DXF
- Technical drawing in tif
- 30570670_607990732-000-00-ED1.TIF
